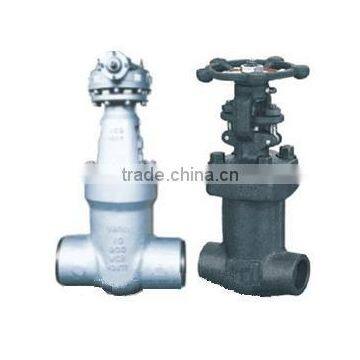

Pressure Sealed 1 1 2 Gate Valve

Specifications

Pressure Sealed Gate Valve

Features & Specifications

.Design & Manufacture: ANSI B16.5, B16.34
.OS&Y Construction, Pressure Sealed
.Solid, Flexible or Split Wedge Design
.Back-seating, Renewable Seat Ring
.Full Port Or Reduced Bore
.Optional Upset forged T-head Stem Design
.Size Range: 1/2" to 20"N.B.
.Pressure Ratings: ANSI 900, 1500, 2500, PN120, PN160, PN320, PN420, PN520
.End Connections: Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections.

.Materials Available in: WCB,LCB,CF8,CF8M,CF3,CF3M,WC6,WC9, C5,C12 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials available to suit service conditions

.Various trim materials are available to suit different service conditions

.Actuations: Manual, Electric, Hydrau-Pneumatic Actuator

.To MR 0175 and MR 103 on request
