Help CenterBuilt-in Transformer Electronic Radio Curtain Motor
Related Products
-
High Quality Curtain Motor Home Automatic Electric Curtain MotorUS$ 120 - 150MOQ: 1 Square Meter -
Motorized Curtain System For Battery MotorUS$ 120 - 150MOQ: 1 Set
-
Newest Styles Tubular Motors With Different FunctionsUS$ 50 - 80MOQ: 10 Pieces
-
Battery Operated Rotating Motor With Remote ControllerUS$ 50 - 80MOQ: 10 Pieces
-
Mechanic Limit AC Tubular MotorUS$ 50 - 80MOQ: 10 Pieces
Specifications
1.Electronic memory limit2.Resistance and stop function
3.power off manual
4.Safty voltage
5.Light touch-start function
Electric Curtian System
Features
1, Built-in radio receiver
Curtain motor also come with a built-in radio receiver that is compatible with any emitter.curtains can be controlled indiviually or group.
2,Touch-start
If pull the curtain to one direction, the curtian runs automatically, the stop until fully opened or fully closed
3, Power-off manual function
When the power is off,just do as we do a common curtain, we can lightly pull the motorized curtian motor to open and close the curtain.
4, Resistance and stop function
when you use hand to pull the opening or closing curtain, the curtain will automatically stop if meet resistance.
5,Electronic limit
No need to set the open limit or close limit of curtain, curtain will automatically stop if meet resistance after fully open or fully close.
Motor Specification
Electronic memory limit+bulit-in receiver+resistance and stop function +light touch-start funtion+power off manual function +external dry contact switch function+safety voltage function
safety curtain weight: 50kgs
Technical data as below:
Rated power input: 30W
Rated current: 0.15A
open/close speed: 18cm/sec
Degree of protection: IP20
Running time: 20mins
Track length<=12m
Weight:1.35kgs
Product Parameter
| Model: DT82TE | Model: DT82TE |
| Max weight:50kgs. sutaible 100V-240V | Electronic radio,power off manual function,DC motor |
| Components:runners,connection parts,end hook,upper and low cover, slip parts assembly,track, celling fixed bracket or wall fixed bracket,rubber belt | |
| Model: DT82TE | Model: DT82TE |
| Electronic memory limit | resistance and stop function |
100-240v 50hz/60hz 50hz blue for neutral,brown for direction green/yellow for earth.
| |
Product Structure
Motor

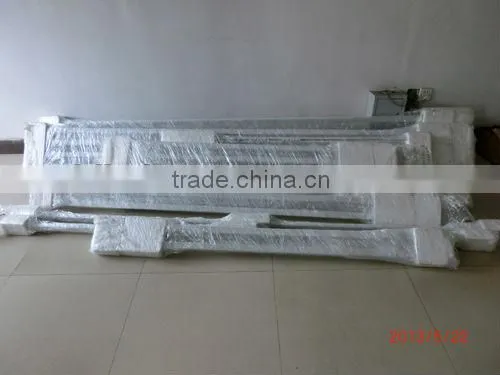

Inner packaging
Guangzhou Yuexiu Window Blinds Development Co., Ltd
is specialized in manufacturing and exporting various rollers blinds, our registered brand "YUEXIU" is a famous brand here in domestic market. We always put "Quality" and "Professionality" at the first place in our company goal. We aim to provide good quality blinds with nice price to our customers, we welcome your quotation and order very much.
