Tupo-4 high technology automatic wall rendering machine made in china

Specifications

Original invetor for wall rendering machine
capable of rendering small area space such as bathroom
Shift machine conveniently



   Foshan Tupo Machinery Manufacture Co.,Ltd    locate 10mins car driving distance to  Guangzhou South Station  . focuses on the new innovative machinery in construction industry  keen on research & development &manufacture of rendering machine for more than 9 years.

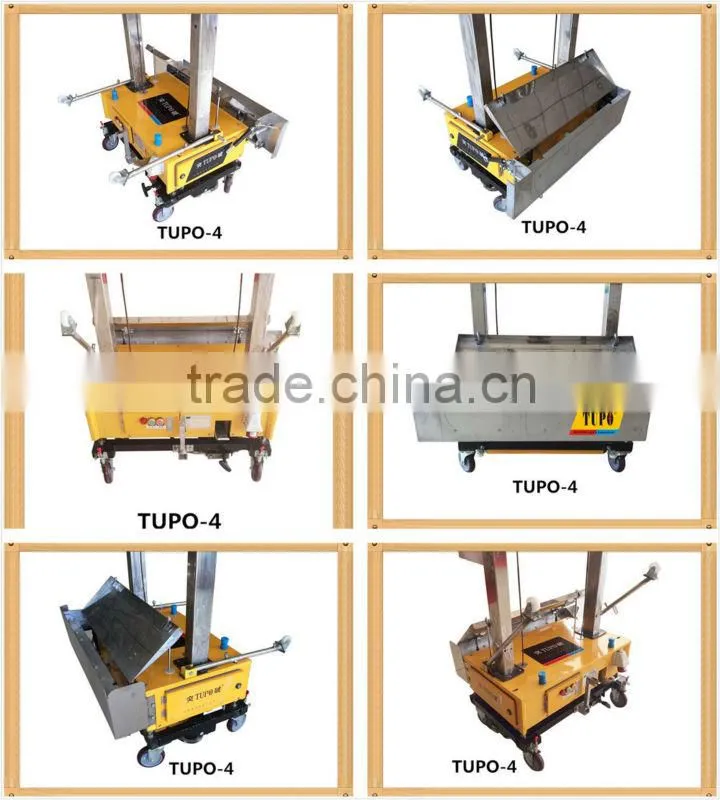

Tupo-4  high technology automatic wall rendering machine made in China









Application wall plastering machine:





1.Automatic cement/mortar/lime/gypsum wall plastering machine used in plastering inside walls.

2.It’



s capable to render on bricks and blocks with cement mortar, ready mix , lime mortar and gypsum mortar.









Standard parametersTupo-4 rendering machine



featuring :



1.Shift machine conveniently when pass door or concrete beams of ceiling, no need to disassemble directional pipes.



 2.mini size suitable for rendering small area such as bathroom & kitchen











 .

Main features Tupo-4 rendering machine:



TUPO machines are with CE Certificate strictly made according to European security standard & patents right engaged



1.Wall rendering  Machine can reach the very top of the roof.





2.New Alluminium Alloy main unit and stainless steel material





3.Original gear rack driving system enable output of main power is more peaceful and stable.





4.Less failure rate .





5.Remote Control keep working in safety



6. Intelligent Wall Rendering  Machinecan make the wall smooth one time within 1min.



7. Two mini vibrators on the Machine can avoid hollowness of walls, ensured rendering quality and fully adhesive.



8. Machine equipped with omni-directional wheels. You can move it anywhere easily.



9.adopt good quality Panasonic PLC ,it can judge the operation mode of different condition



10.Tupo used it special Power head which is researched and developed by itself to drill the accessories .highly increase the manufacturing precision and decrease working error or tolerance of auto rendering machine.



11.all Tupo machine’s Gas Spring are installed with special protecting device. highly increase the life span of the machine















 factory overview & Canton fair :

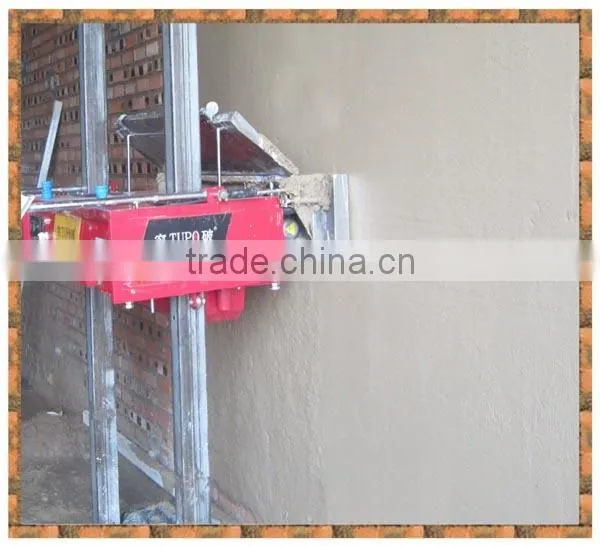

I. What is RENDERING MACHINE?

RENDERING MACHINE is also called Automatic Rendering Machine, Automatic Plastering Machine, Wall Rendering Machine, Wall Plastering Machine Etc. It is unique and perhaps one kind of automated rendering machinery ideally suitable for the construction/building industry. It works with conventional cement mortar which brings it to a smooth, flat finish with variable and adjustable thickness to suit each application.





II. What finish can be achieved?

Depending on how fine or course the sand is, our RENDERING MACHINE can produce smooth and flat render finish.





III. How much thickness should be applied?



The same principles apply as the way you render by hand. However, if required, RENDERING MACHINE enables you to achieve from 5 mm up to 30mm render.



IV. What is the render height ?



It can special make reach up to 5 meters.



V. How is the render quality?



There are two vibrators on the rendering trowel, which gives you a high quality render. RENDERING MACHINE enables you to get finish render as follows:



Vertical : the difference between top and bottom is within 2 mm



Horizontal: the difference from side to side is within 2 mm.



VI. Does machine need a special mix or compound?



No, the mortar recommended for RENDERING MACHINE is the same mortar that you use when render by hand. It can work with the traditional cement mortar, however lime or gypsum or other additives can be added into the mixture if needed.





VII. How is RENDERING MACHINE used?



Operating our RENDERING MACHINE is as easy as 1, 2, 3.



1. Secure machine



2. Load mortar



3. Press start button



VIII. Is it difficult to operate RENDERING MACHINE?



No. It’s very easy to operate RENDERING MACHINE and it doesn’t require special or advanced technical training. Half a day’s training is enough for a person to operate machine themselves.



Problems Meet And Solutions:



I. press start button, there is no respond from machine



1. check if the two livers have been pulled up.





2.check if the stop switch on the left side of machine works by pressing the switch



3.check the power supply



start button ,machine goes up but the conveyer is not rolling.



1. switch on the conveyer switch.



2. check the chain on right side of machine , if the chain is rolling, that



mean the conveyer is loose. In this case, we have to tight the conveyer by



adjusting the screws on both side of machine closer to the plastering trowel.



III. Machine reach to ceiling but no stop automatically



Cut off power supply by turning off main switch, next turn on main switch to connect power supply, and then machine comes down automatically



IV. Machine comes down but stops in the middle. (machine will be automatically stopped when meet difficult )



1. check if the directional pipes are clean .



2.shake the directional pipes to make machine comes down.



3.release the hydraulic a little to enable machine come a bit down, and secure hydraulic & pump



V. Machine goes up and stops in the middle



1. Cut off power supply by turning off main switch, next turn on main switch to connect power supply, and then machine comes down automatically.



2.check if anything in the plastering trowel prevents machine going up



3.check if anything on the wall prevents machine going up



Our Service:

I. Normally the service life of our machines can be 3-5 years.



II. We offer 1 year Quality Warranty for our machines.



III. We offer full set of easy-spoiled spare parts and tools for back up.





IV. We can send our engineer abroad to training customers to operate the machine.





V. We resolve any problem together with our customers.
