10-220KV Suspension Insulator/electrical Insulators

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Model Number:

FXBW

Shijiazhuang Fayun Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name FY

Model Number FXBW

Specifications

/electrical insulators/suspension insulator
1.Rated voltage:10KV~220KV
2.Meterial: Silicon rubber
3.IEC standard

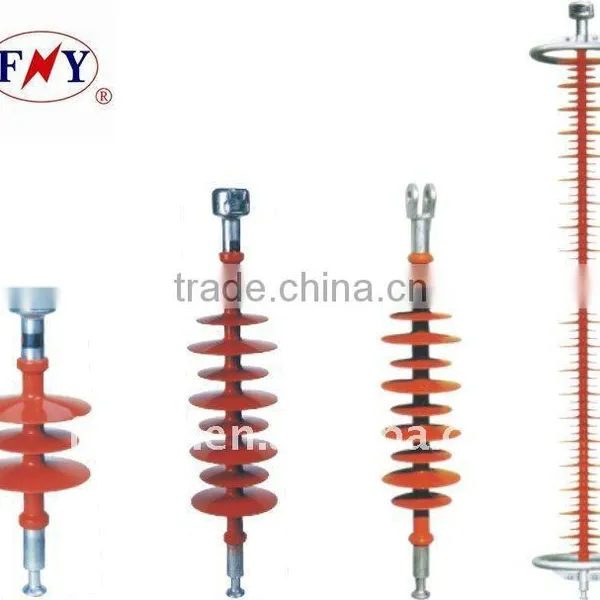

10-220kV polymeric insulator
No.	Insulator Mode	Rated Voltage kV	Rated mechanical tensile load Kn	Link structure marker	Structure Height mm	Minimum distance ArcL.	Minimum nominal Creepage distance mm	Full-wave Lightning Impulse withstand voltage (peak)	Min.wet withstand voltage per minute at power frequency
									Min.wet withstand voltage per minute at power frequency		Dry	Wet
									1	FXBW-10/70	Dry	Wet	10	70	16	310±15	130	350	75	47	42
									2	FXBW-10/100	10	100	16	350±15	130	350	75	47	42
3	FXBW₂-35/70	35	70	16	650±15	470	810	230	108	95
4	FXBW4-35/70	35	70	16	650±15	470	1015	230	108	95
5	FXBW2-35/100	35	100	16	670±15	450	810	230	108	95
6	FXBW4-35/100	35	100	16	670±15	450	1050	230	108	95
7	FXBW1-66/70	66	70	16	880±15	700	1450	410	200	185
8	FXBW2-66/70	66	70	16	940±15	760	1450	410	200	185
9	FXBW3-66/70	66	70	16	880±15	700	1900	410	200	185
10	FXBW4-66/70	66	70	16	940±15	760	1900	410	200	185
11	FXBW2-66/100	66	100	16	940±15	720	1900	410	200	185
12	FXBW4-66/100	66	100	16	940±15	720	1900	410	200	185
13	FXBW1-110/70	110	70	16	1180±15	1000	2520	550	280	230
14	FXBW2-110/70	110	70	16	1240±15	1000	2520	550	280	230
15	FXBW3-110/70	110	70	16	1180±15	1000	3150	550	280	230
16	FXBW4-110/70	110	70	16	1240±15	1000	3150	550	280	230
17	FXBW2-110/100	110	100	16	1240±15	1000	2520	550	280	230
18	FXWB4-110/100	110	100	16	1240±15	1000	3150	550	280	230
19	FXBW1-220/100	220	100	16	2150±15	1900	5040	1000	560	395
20	FXBW2-220/100	220	100	16	2240±15	1900	5040	1000	560	395
21	FXBW3-220/100)	220	100	16	2150±15	1900	6300	1000	560	395
22	FXBW4-220/100	220	100	16	2240±15	1900	6300	1000	560	395
23	FXBW2-220/160	220	160	20	2240±15	1900	5040	1000	560	395
24	FXBW4-220/160	220	160	20	2240±15	1900	6300	1000	560	395
