Silicon Fiberglass Tube
Negotiable
/ Piece
50 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Tianjin
- T/T
You May Like
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
- Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
Place of Origin: | Hebei, China | Brand Name: | FY | Model Number: | - |
Type: | Insulator | Material: | Fiberglass | Application: | High Voltage |
Rated Voltage: | - | Tensile Strength: | - |
Product Description
Specifications

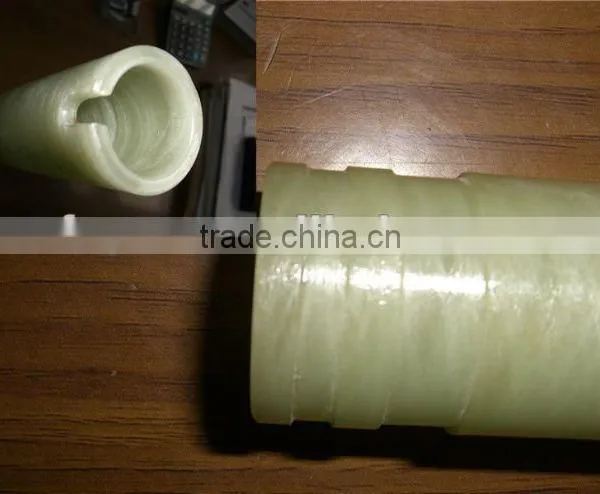

Fiber glass tube:1.Corrosion Resistant
2.Low Electrical & Thermal Conductivity
3.Light Weight & High Strength
Fiberglass Insulation Tube:
silicone rubber fiber glass tube is applicable for high temperature environment,such as electron,electrical machine,lightening,household appliance and electrical heating equipment.
Technical parameter: | |||||
Normal Diameter | Thickness | Length | Tolerance Allowed | ||
inside diameter | outside diameter | Length | |||
30~70 | 3~20 | 500 | ±0.3 | ±0.3 | ±1 |
70~150 | 3~20 | 1000 | ±0.5 | ±0.5 | ±2 |
150~550 | 10~100 | 2800 | ±0.5 | ±0.2 | ±2 |
Physical and mechanical parameters | Physical and mechanical parameters | ||||
Index Name | Unit | Index | Index Name | Unit | Index |
Density | g/cm3> | ≥1.80 | Density | g/cm3> | ≥1.80 |
Water absorption | % | ≤0.15 | Water absorption | % | ≤0.15 |
Intensity of curvature(circling direction) | Mpa | ≥400 | Intensity of curvature(circling direction) | Mpa | ≥400 |
Intensity of compress | Mpa | ≥98 | Intensity of compress | Mpa | ≥98 |
Voltage vitality on parallel layer at normal state for 5min | Kv | ≥25 | Voltage vitality on parallel layer at normal state for 5min | Kv | ≥25 |
Voltage vitalityon vertical layer in the oil at 90°C for 5min | MV/m | ≥12 | Voltage vitalityon vertical layer in the oil at 90°C for 5min | MV/m | ≥12 |
Note:Other Inside diameter is available, please feel free to contract us.
