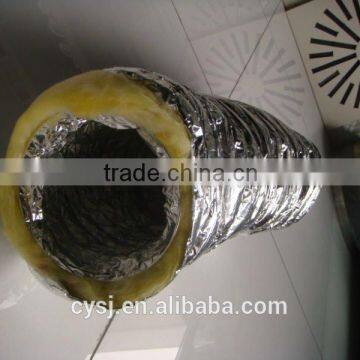

Insulated Flexible Aluminum Foil Air Duct for air conditioning

FOB Price

USD $0.5 - $20 / Meter

3000 Meters(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Chuanyuan
Model Number	CYIF-1

Usages:

HVAC system (heating, ventilation and air conditioning)

1. Ideal for low / medium pressure ventilation system.

2. Various industrial purposes, like range hood, air conditioning etc.

Features

1. High flexibility and axial compressibility

2. Non-flammable, Easy to install on round or oval connections

3. No toxic gases release at high temperature

4. Good gas tightness

Properties	Value
Construction	Alu. inner duct- alu. sleeve -insulation
Diameter Range	75-500mm (3”-20”)
Extension Rate	1:8
Thickness of Aluminum Foil	Outer:0.026mm Inner:0.035mm
Thickness of fiber glass wool	25mm or 30mm
Density of glass wool	12,16,18,20,24 kg/ m3
Temperature Range	-30°C ~ +140 °C
Air Flow (MAX.)	30 m/s
Working Pressure (MAX.)	2500 Pa
Standard Length	10m

Packing Detail:

Item Description	DIA (inch)	DIA(mm)	CTN (cm³)	Pcs/ctn
Insulated flexible aluminum air duct	3	75	465046	25
	4	100	565056	25
	4.25	110	615061	25
	5	125	685068	25
	6	150	655065	16
	6.25	160	695069	16
	7	175	755075	16
	8	200	436445	6
	9	225	487145	6
	10	250	537945	6
	11	275	588645	6
	12	300	636345	4
	13	325	686845	4
	14	350	737345	4
	15	375	787845	4
	16	400	418245	2
	17	425	448845	2
	18	450	469245	2
	19	475	489845	2
	20	500	5110245	2
