Oem Factory Price customized chain grate thermal stoker boiler

FOB Price

US$ 10,000 - 150,000 / Set

1 Set(Min. Order)

Port Qingdao Tianjin Shanghai Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Enn
Type	Other, boiler parts, chain belt, small scale, large scale, cross girder, reciprocating

Product Description

Oem Factory Price customized chain grate thermal stoker boiler

We offer boiler parts for owner's existing boiler reform, including grate, superheater, airpreheater, economizer, water wall, etc. And also, our products have found a good sale in Indonesia, Thailand and Laos.

Boiler Grate including:

1. 1-20t/h Chain Belt Grate

2. 2-40t/h Small Scale Grate

3. 10-50t/h Large Scale Grate

4. 2-80t/h Reciprocating Step Grate

5. 10-120t/h Crossgirder Grate

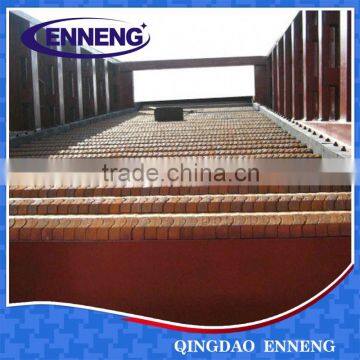

Chain Belt Grate

Boiler Capacity t/h	Grate effective area	Grate surface height	Axle base	Effective width	Width of plate lateral sides	Length of shaft (to grate center)	Shaft center height	Diameter of shaft end	Wind chamber quantity
1t/h	1.43	543	3420	660	740	600	396	φ60	3
1t/h	2.76	540	2850	980	1070	805	355	φ60	3
2t/h	3.68	540	3630	1050	1140	780	395	φ60	4
2t/h	3.57	570	3760	1020	1110	785	425	φ60	4
3t/h	4.78	628	4250	1290	1380	1050	436	φ60	5
4t/h	5.43	610	4510	1400	1500	970	465	φ60	5
4t/h	5.66	540	4880	1310	1410	965	400	φ60	5
5t/h	6.52	628	4650	1620	1710	1160	436	φ80	5
6t/h	7.67	622	5000	1650	1740	1220	475	φ80	5
6t/h	7.89	630	5400	1525	1635	1120	440	φ80	5
7t/h	8.33	735	5214	1780	1880	1398	495	φ80	5
8t/h	10.45	670	5550	1960	2050	1235	425	φ80	5
8t/h	11.63	905	5100	2050	2150	1370	670	φ80	4
10t/h	12.12	885	6330	2000	2100	1350	650	φ80	5
10t/h	10.94	997	6330	2350	2450	1630	760	φ100	5
15t/h	15.87	990	7500	2700	2790	1950	600	φ110	6
20t/h	21.85	990	8150	3250	3340	2100	650	φ130	7
