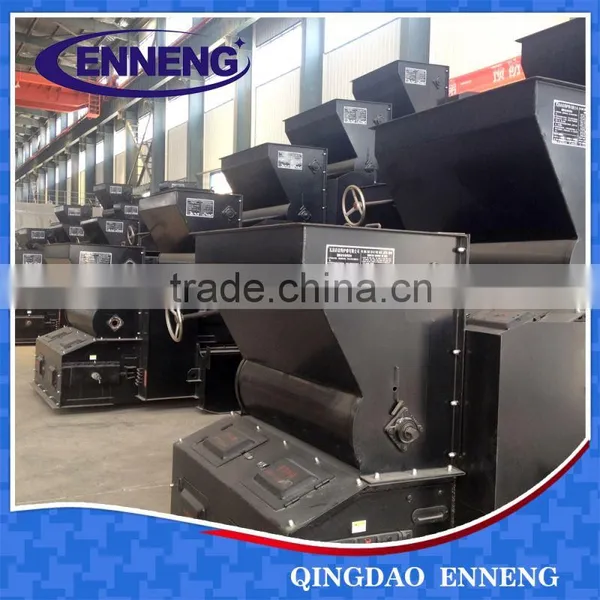

China Factory Price solid fuel boiler grate
We offer boiler parts for owner's existing boiler reform, including grate, superheater, airpreheater, economizer, water wall, etc. And also, our products have found a good sale in Indonesia, Thailand and Laos.
Boiler Grate including:
1. 1-20t/h Chain Belt Grate
2. 2-40t/h Small Scale Grate
3. 10-50t/h Large Scale Grate
4. 2-80t/h Reciprocating Step Grate
5. 10-120t/h Crossgirder Grate

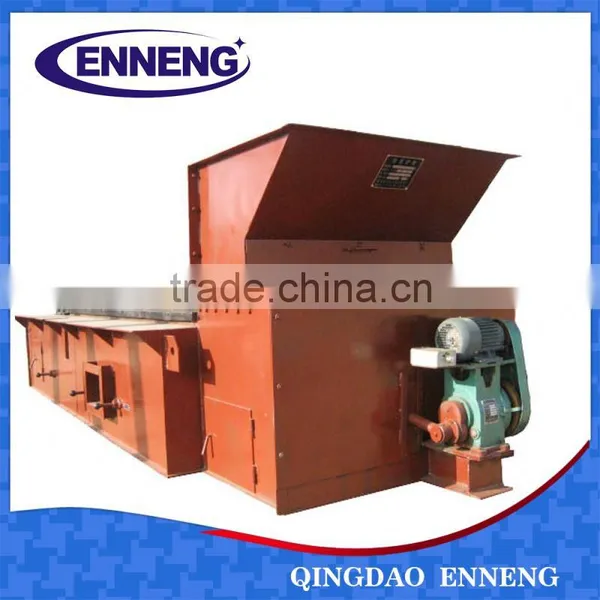

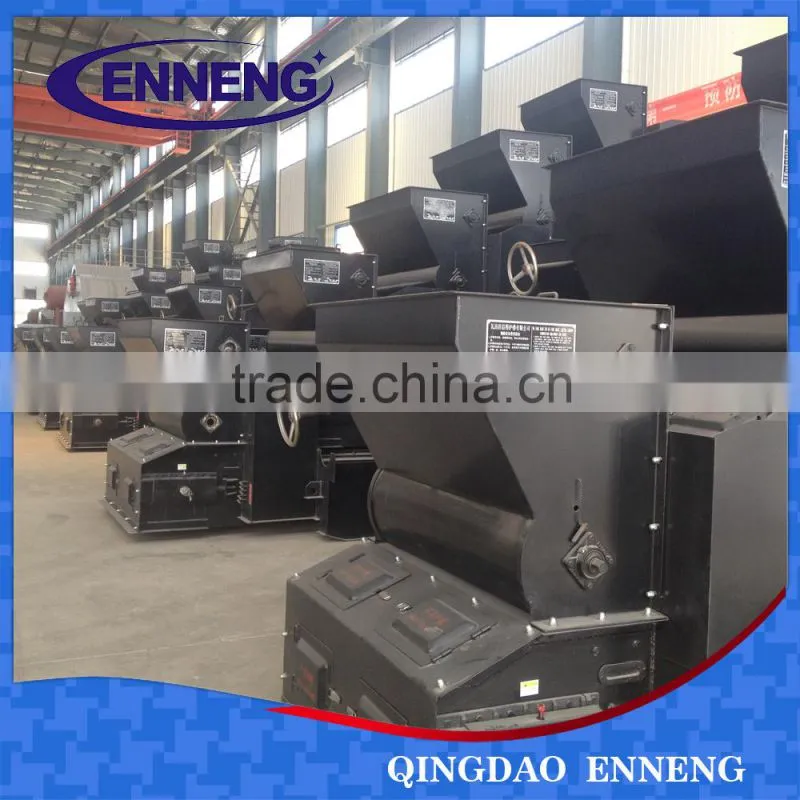

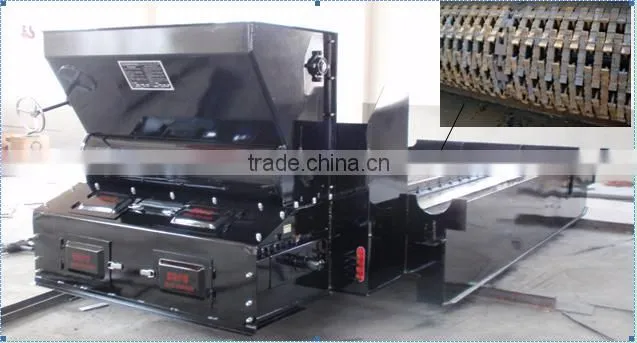

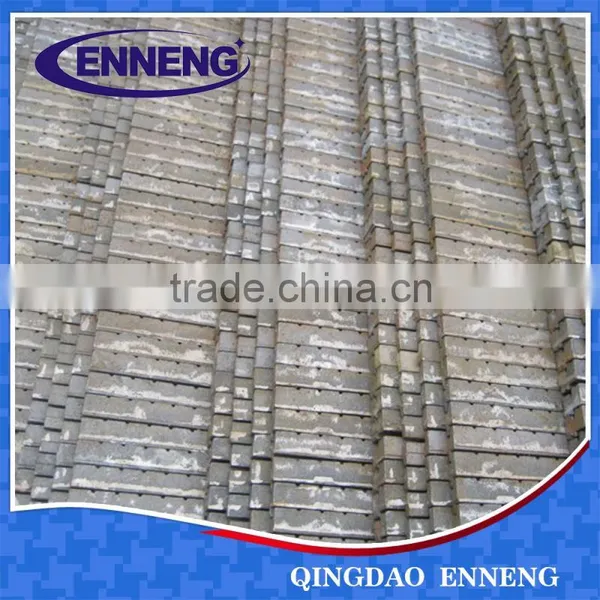

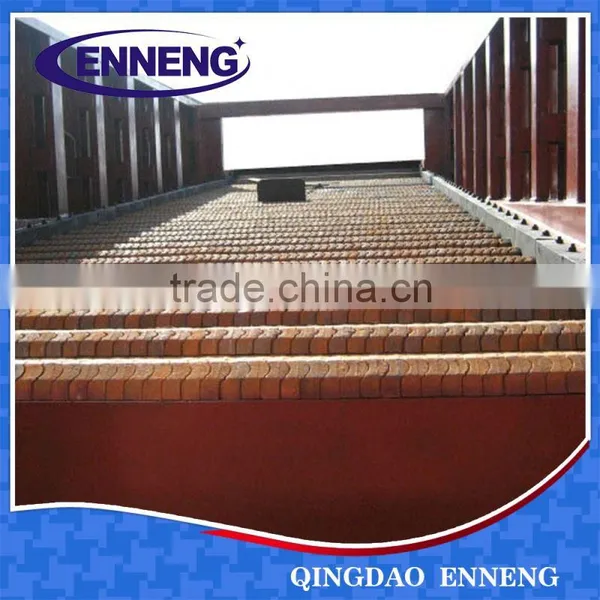

Chain Belt Grate
|
Boiler Capacity t/h |
Grate effective area
|
Grate surface height
|
Axle base |
Effective width |
Width of plate lateral sides
|
Length of shaft (to grate center) |
Shaft center height
|
Diameter of shaft end
|
Wind chamber quantity |
1t/h |
1.43 |
543 |
3420 |
660 |
740 |
600 |
396 |
φ60 |
3 |
1t/h |
2.76 |
540 |
2850 |
980 |
1070 |
805 |
355 |
φ60 |
3 |
2t/h |
3.68 |
540 |
3630 |
1050 |
1140 |
780 |
395 |
φ60 |
4 |
2t/h |
3.57 |
570 |
3760 |
1020 |
1110 |
785 |
425 |
φ60 |
4 |
3t/h |
4.78 |
628 |
4250 |
1290 |
1380 |
1050 |
436 |
φ60 |
5 |
4t/h |
5.43 |
610 |
4510 |
1400 |
1500 |
970 |
465 |
φ60 |
5 |
4t/h |
5.66 |
540 |
4880 |
1310 |
1410 |
965 |
400 |
φ60 |
5 |
5t/h |
6.52 |
628 |
4650 |
1620 |
1710 |
1160 |
436 |
φ80 |
5 |
6t/h |
7.67 |
622 |
5000 |
1650 |
1740 |
1220 |
475 |
φ80 |
5 |
6t/h |
7.89 |
630 |
5400 |
1525 |
1635 |
1120 |
440 |
φ80 |
5 |
7t/h |
8.33 |
735 |
5214 |
1780 |
1880 |
1398 |
495 |
φ80 |
5 |
8t/h |
10.45 |
670 |
5550 |
1960 |
2050 |
1235 |
425 |
φ80 |
5 |
8t/h |
11.63 |
905 |
5100 |
2050 |
2150 |
1370 |
670 |
φ80 |
4 |
10t/h |
12.12 |
885 |
6330 |
2000 |
2100 |
1350 |
650 |
φ80 |
5 |
10t/h |
10.94 |
997 |
6330 |
2350 |
2450 |
1630 |
760 |
φ100 |
5 |
15t/h |
15.87 |
990 |
7500 |
2700 |
2790 |
1950 |
600 |
φ110 |
6 |
20t/h |
21.85 |
990 |
8150 |
3250 |
3340 |
2100 |
650 |
φ130 |
7 |
Chain Belt Grate Drawing
1. How to get a boiler price list?
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
Any more questions,please sent your inquiry below
