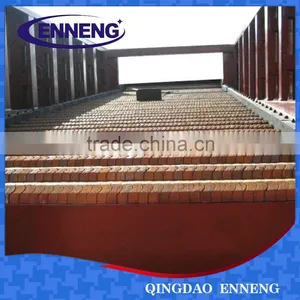

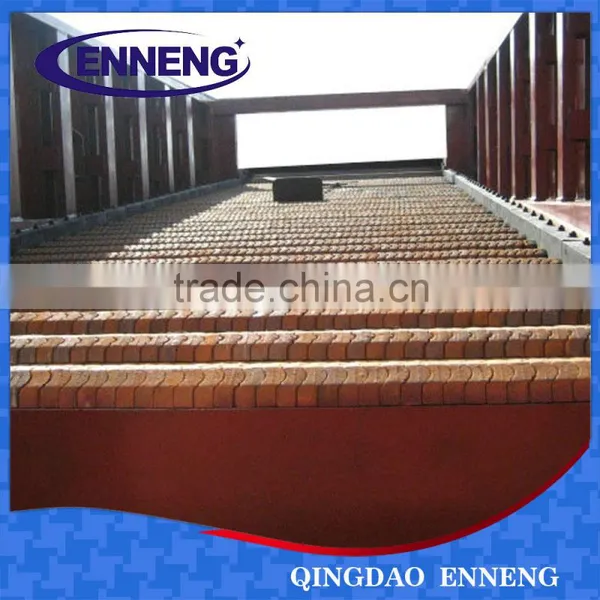

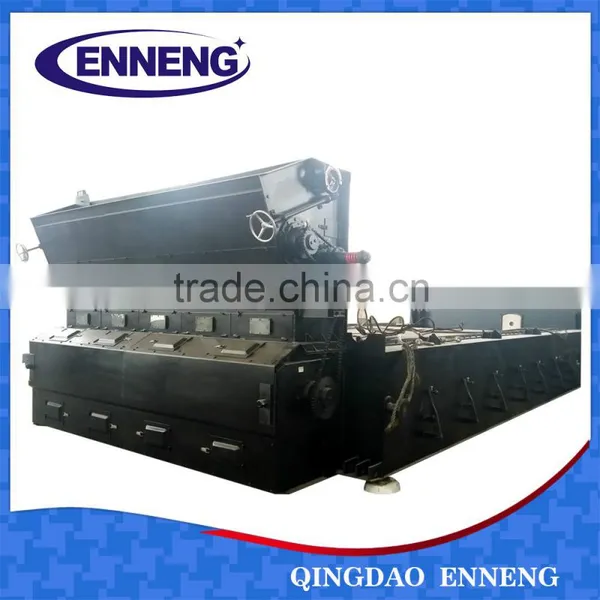

Boiler Parts, Chain & Reciprocatting Grate
We offer boiler parts for owner's existing boiler reform, including grate, superheater, airpreheater, economizer, water wall, etc. And also, our products have found a good sale in Indonesia, Thailand, Malaysia, Spain and Laos.
Boiler Grate including:
1. 1-20t/h Chain Belt Grate
2. 2-40t/h Small Scale Grate
3. 10-50t/h Large Scale Grate
4. 2-80t/h Reciprocating Step Grate
5. 10-120t/h Crossgirder Grate

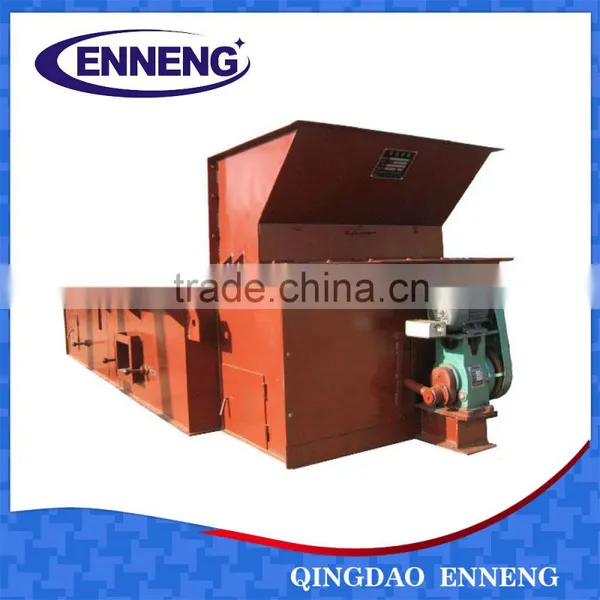

Chain Belt Grate
|
Boiler Capacity t/h |
Grate effective area
|
Grate surface height
|
Axle base |
Effective width |
Width of plate lateral sides
|
Length of shaft (to grate center) |
Shaft center height
|
Diameter of shaft end
|
Wind chamber quantity |
1t/h |
1.43 |
543 |
3420 |
660 |
740 |
600 |
396 |
φ60 |
3 |
1t/h |
2.76 |
540 |
2850 |
980 |
1070 |
805 |
355 |
φ60 |
3 |
2t/h |
3.68 |
540 |
3630 |
1050 |
1140 |
780 |
395 |
φ60 |
4 |
2t/h |
3.57 |
570 |
3760 |
1020 |
1110 |
785 |
425 |
φ60 |
4 |
3t/h |
4.78 |
628 |
4250 |
1290 |
1380 |
1050 |
436 |
φ60 |
5 |
4t/h |
5.43 |
610 |
4510 |
1400 |
1500 |
970 |
465 |
φ60 |
5 |
4t/h |
5.66 |
540 |
4880 |
1310 |
1410 |
965 |
400 |
φ60 |
5 |
5t/h |
6.52 |
628 |
4650 |
1620 |
1710 |
1160 |
436 |
φ80 |
5 |
6t/h |
7.67 |
622 |
5000 |
1650 |
1740 |
1220 |
475 |
φ80 |
5 |
6t/h |
7.89 |
630 |
5400 |
1525 |
1635 |
1120 |
440 |
φ80 |
5 |
7t/h |
8.33 |
735 |
5214 |
1780 |
1880 |
1398 |
495 |
φ80 |
5 |
8t/h |
10.45 |
670 |
5550 |
1960 |
2050 |
1235 |
425 |
φ80 |
5 |
8t/h |
11.63 |
905 |
5100 |
2050 |
2150 |
1370 |
670 |
φ80 |
4 |
10t/h |
12.12 |
885 |
6330 |
2000 |
2100 |
1350 |
650 |
φ80 |
5 |
10t/h |
10.94 |
997 |
6330 |
2350 |
2450 |
1630 |
760 |
φ100 |
5 |
15t/h |
15.87 |
990 |
7500 |
2700 |
2790 |
1950 |
600 |
φ110 |
6 |
20t/h |
21.85 |
990 |
8150 |
3250 |
3340 |
2100 |
650 |
φ130 |
7 |
Chain Belt Grate Drawing
Here are some related products,
Economizer, air preheater, and superheater:
• Service is part of product, pre-sale and after-sale service are the same important. Customer’s satisfaction is our aim. C
• Consultation Service: Experienced technicians guidance is available on the phone, and on the internet.
• Warm Service: Based on customers’ request and budget, our experts make efficient, reliable solutions, and we produce strictly following customers’ order. Every customer has the chance to visit our workshops before placing the order.
• "Credit based" as company's spirit, Enneng cherishes the trust from every customer.
•Company Culture: Customer Foremost, Credit First.
.
• We have Chinese A level boiler factory, ASME, CE standard available.
• We can provide some kinds of boiler package such as wood case, steel case,etc
•Our company warmly welcome customers′ visiting and negotiation.
