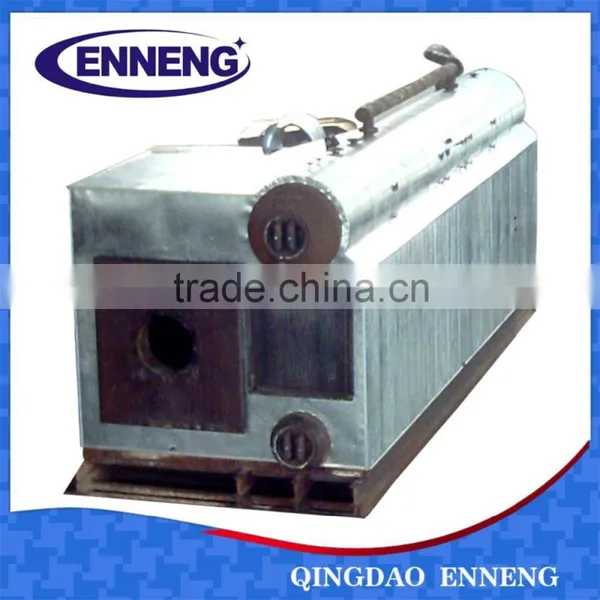

High Quality SZS Gas Fired Boiler

Name: High Quality SZS Gas Fired Boiler
Brand: ENNENG
SKU: 133313773
Availability: InStock

US$ 10,000 - 200,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Natural Circulation

Usage:

Industrial

Qingdao Enneng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Natural Circulation

Usage Industrial

Structure Other, Water Tube, packaged

Pressure Low Pressure

Style Horizontal

Fuel Gas-fired

Place of Origin Shandong, China

Brand Name ENNENG

Model Number SZS

Output Steam

Dimension(L*W*H) depends on the model

Weight depends on the model

Certification ASME

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Water Tube Steam Boiler Parameter

Model	SZS6.0	SZS8.0		SZS10.0	SZS15.0		SZS20.0	SZS30.0	SZS40.0
Rated capacity	6000kg/h	8000kg/h		10000kg/h	15000kg/h		20000kg/h	30000kg/h	40000kg/h
Rated working pressure	0.70 / 1.0 / 1.25 /1.6MPa
Rated feedwater temperature	105℃
Saturated steam temperature	170.4 / 184.1 / 193.4/204.3 ℃
Design efficiency	≥ 93%
Adaptable fuel	Light oil, natural gas
Steam outlet	DN125	DN150	DN150			DN200	DN200	DN250	DN250
Water inlet	DN50	DN50	DN50			DN65	DN80	DN100	DN100
Safety valve	DN50×2	DN50×2	DN65×2			DN80×2	DN100×2	DN125×2	DN150×2
Drainage valve	DN40×2	DN40×2	DN40×2			DN40×2	DN40×2	DN50×2	DN50×2
Boiler total length A	6160mm	7900mm	11500mm			12700mm	13500mm	15900mm	17900mm
Boiler total height B	3960mm	3700mm	6250mm			6250mm	6550mm	6550mm	7250mm
Boiler total width C	3350mm	3780mm	5640mm			5640mm	5860mm	5860mm	6600mm
