55 Inch Super Slim LCD Video Wall,Ultra Narrow Splicing Screen

55 inches Super slim LCD video wall,Ultra narrow splicing screen

The bilateral flat-fell seam of 55'' ultra narrow splicing LCD wall is 5.3mm,truly realizing the seamless splicing of large screen display.While it has the super large display area ,the whole product also has the advantages of thin thickness and low weight. Yitelang unique way of splicing steel frame structure make the splicing wall more easily arbitrary spliced and installed.The digital display effect :assure no chromatic aberration,the image is clear and delicate,the color is bright and colorful.

Function and character

Splicing software

Supporting large screen splicing control software,display unit for encoding settings.Intelligent unified operation platform,realizes the splicing screen infinite splicing idea.

The control and connect

All of the screen through RS232 line to link ,via host  (PC terminal) control input/output signal ,controlled manner is more convenient.

LCD splicing

The integrity of LCD TV wall ,perpendicular to the ground,can be spliced and combined by any request (M*N).

Colour and adjust

 The screen body adopts industrial-grade LCD screen produced by many transnational enterprises including Samsung,Sharp,LG,the colour display is more realistic and there is no colour difference .

All-round perspective

A new ultra wide angle of view extension technology,the biggest display angle is 178°, which comprehensively ensures the image in the display angle without distortion and deformation.

Splicing function display

LCD video wall system solutions can realize the high-end display functions of image and video such as cross-screen,roaming,PIP,overlay,scaling and so on.

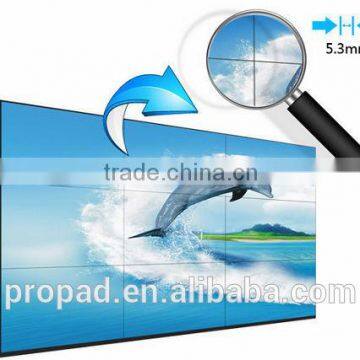

Super-slim flat-fell seam

The minimum gap of LCD video can be 5.3mm,truly realize the seamless splicing large screen display.(This is the highest specification)

Intelligent temperature control

Single block LCD splicing screen built-in intelligent temperature control system,reasonable internal structure design ,effectively make the product more energy saving and more environmentally- friendly.

LED backlight panel

Compared with the CCFL backlight panel,LED backlight panel is much brighter,up to 700cd/m2.(Except for partial type products )

Support 7 * 24 hours work LCD splicing screen with low power consumption,can support 7 * 24 hours of continuous work,365 days a year non-stop running.

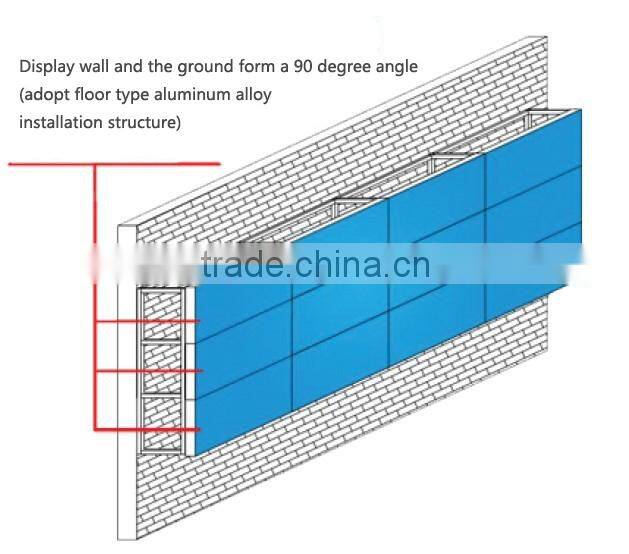

Installation introduction

The shell of splicing screen is cold-rolled steel.It has intelligent temperature control system built-in.The screen uses industrial-grade LCD screen which produced by several multinational companies such as Samsung,LG,Sharp etc.

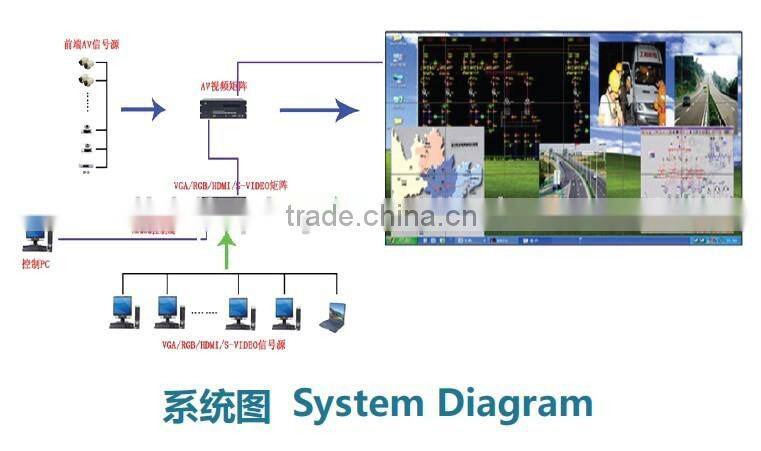

System introduction

We generally use multi-frequency signal processors,matrices,screen cutters and other hardware devices to realize LCD splicing images’high-end display functions such as cross-screen,roaming,PIP, overlay ,scaling and so on.

Yitelang provides the most suitable system solution according to different splicing systems’ environmental requirements,sizes and applications from customers.

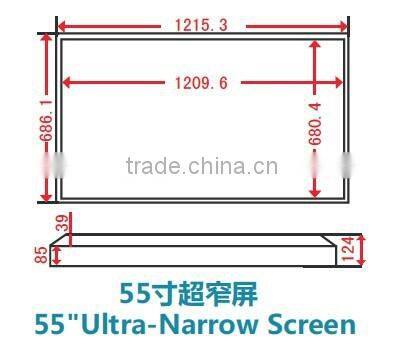

Parameters table

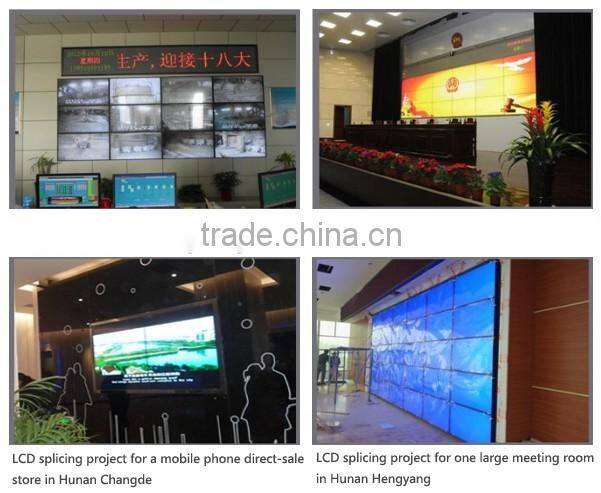

  Application and solution

  Certificate
