Help Center32bit 500scan/sec CCD 1D Barcode Scanner Module
US$ 1 - 60
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, barcode scanner module
Scan Element Type:
CCD
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Hot Product 32bit 500scan/sec CCD TTL Board Arduino Compatible 1D Barcode Reader ModuleUS$ 1 - 60MOQ: 10 Pieces -
2016 Hot Product 32bit 500scan/sec CCD 1D Arduino Barcode Scanner ModuleUS$ 1 - 60MOQ: 10 Pieces
-
China Hot Sale Cheap Handheld Wireless 2d Arduino Barcode ScannerUS$ 1 - 500MOQ: 1 Piece
-
China Top Sale 1d/2d Handheld Wireless Usb Barcode Scanner c#US$ 1 - 500MOQ: 1 Piece
-
China New Products RS232 USB Wireless 2d Barcode Scanner GunUS$ 1 - 500MOQ: 1 Piece
Products Status
Stock
Type
Other, barcode scanner module
Scan Element Type
CCD
Colour Depth
32 Bit
Interface Type
PS/2, USB, Other, PS/2, USB, RS232
Max Paper Size
1000mm
Scan Speed
500 times/sec
Brand Name
cnAICO
Model Number
AC140006
Place of Origin
Zhejiang, China

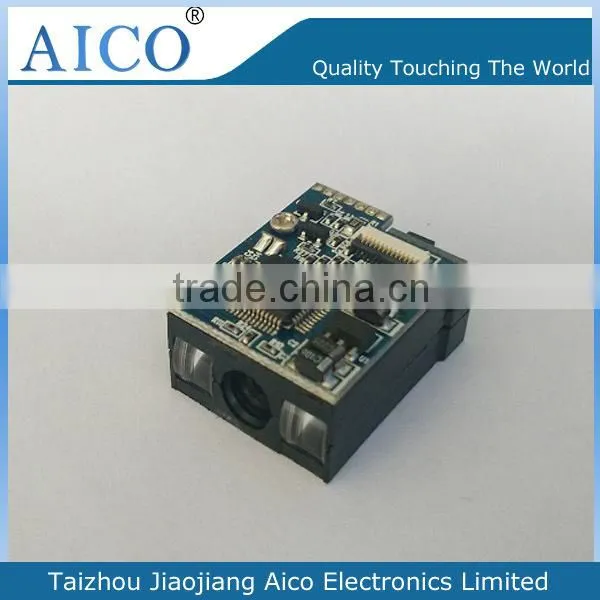

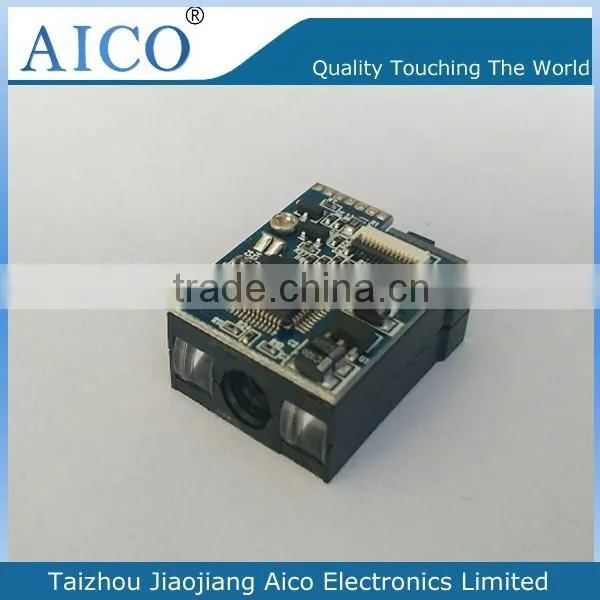

32bit 500scan/sec CCD 1D barcode scanner module
Model |
AC140006 |
Interface |
USB/RS232/TTL |
Image sensor |
CCD |
Scan rate |
up to 500 scans/sec |
Light source |
visible red light 632nm LED |
Depth of scan field |
40-450mm |
Illumination |
0-100,000 lux |
connector |
FPC 12pin Pitch 0.5 |
Voltage |
DC+ 5V±5% |
Current |
working: 150mA (maximum) Sleep: 50mA |
Weight |
10.6g |
Dimensions |
(W) 20 x (D) 26 x (H) 11.5mm |
Operating temperature |
0 to 50°C (32 °F to 122 °F ) |
Storage temperature |
-20 to 70°C(-4 °F to 158 °F ) |
Relative Humidity |
20% to 95%(non-condensing) |
product name |
CCD 1D barcode scanner module |
