Name:2 way line array speaker sound system coaxial monitor speaker
Description:

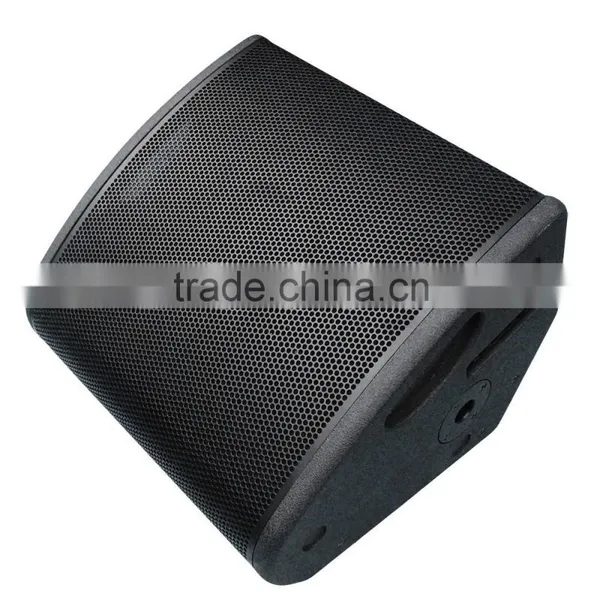

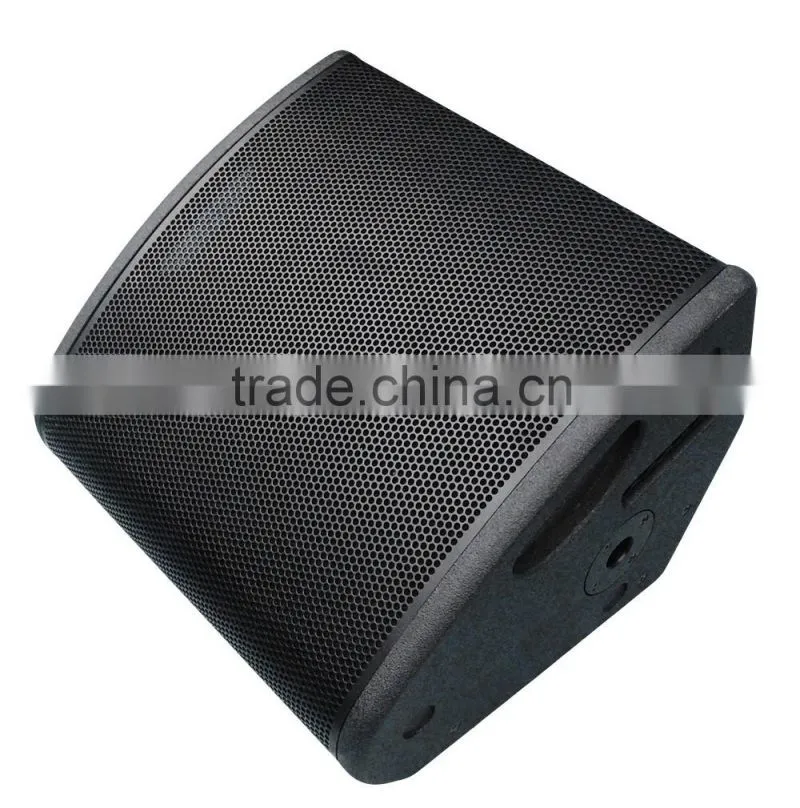

CM15 is a 2-way coaxial full range monitor speaker, A fixed point conical waveguide and 3 "titanium film HF compression driver and 1x15" woofer assemble together to be a coaxial driver that offers fixed 60 ° axisymmetric directional output. Using a coaxial design and time calibration techniques, so that the speaker closer to the ideal point source, so the speaker the sound having a strong presence, good clarity, as well as the strong acoustic feedback suppression capability,as stage foldback and former District PA. CM15's Multifunction trapezoidal enclosure design makes it possible to make up the listener array provides high reduction and a wide range of direct sound monitor section for artists. CM15 uses a multilayer birch plywood manufacturing cabinet, strengthen environmental coat protect the shell,speakers use triangle mesh metal mesh enclosure stick acoustic soft sponge as the speaker protection. Rear panel also equipped with an integrated wooden handles, terminal is equipped with NL4 parallel interface, and bi-amp or full range drive switch.A double angle supporting hole on top for multiple use.
Characteristic:
2-way full range coaxial speaker
80 ° directional single point source radiation axisymmetric
accurate coverage, clear voice, strong directional

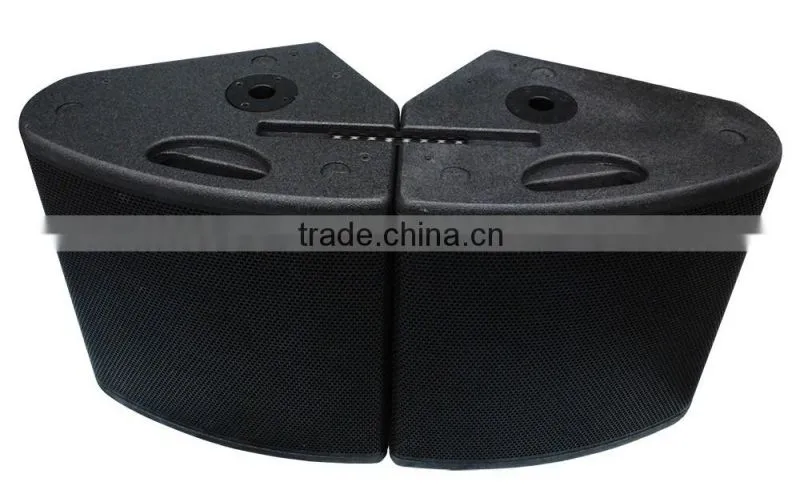

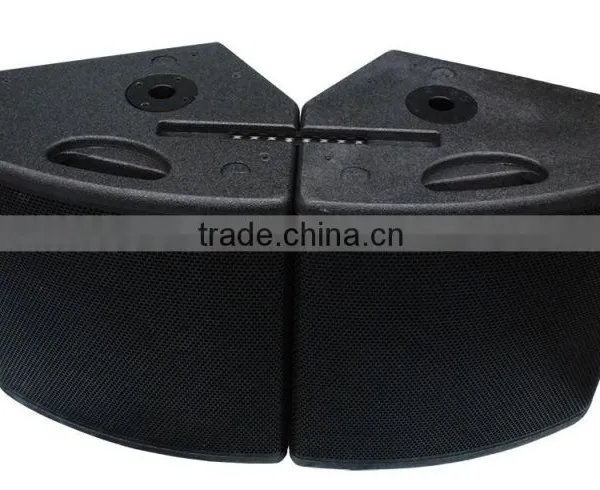

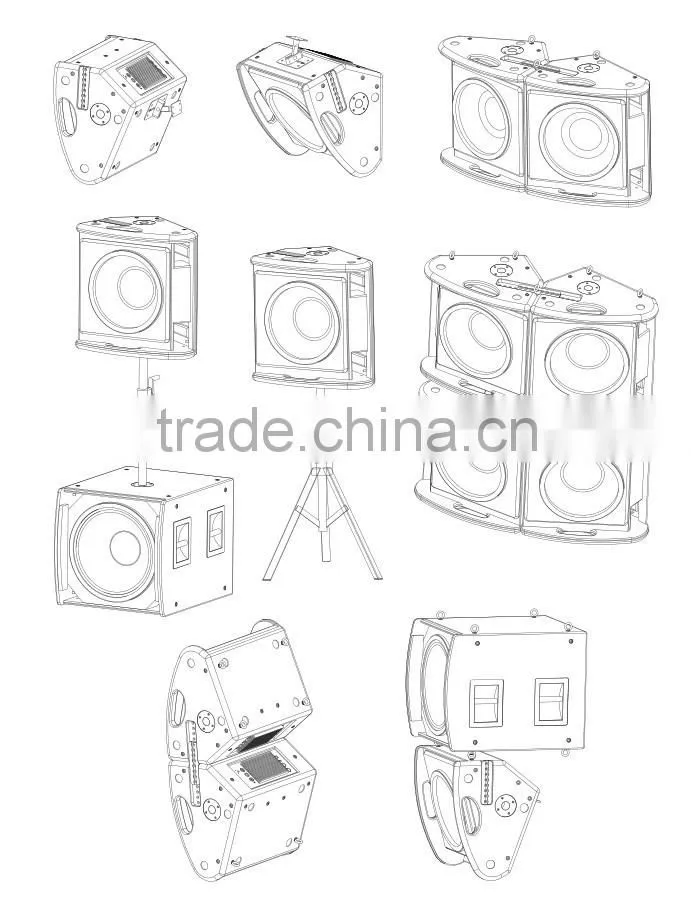

Versatile trapezoidal enclosure design

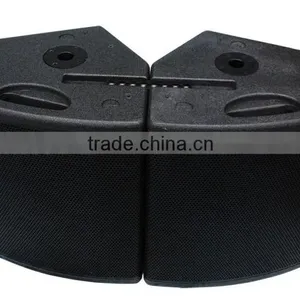

Assembly as monitor array

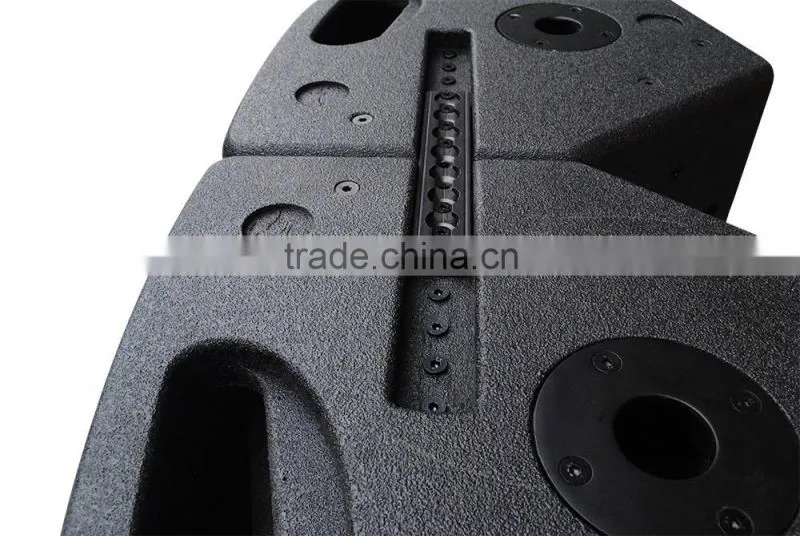

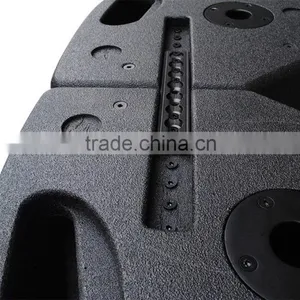

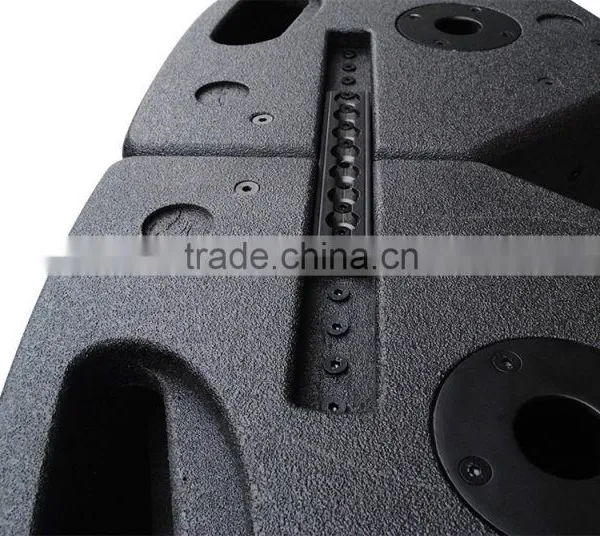

double angle support jack
Applications:
used as a voice monitor speaker
High power drummer or musical instruments monitor speakers
stage monitor

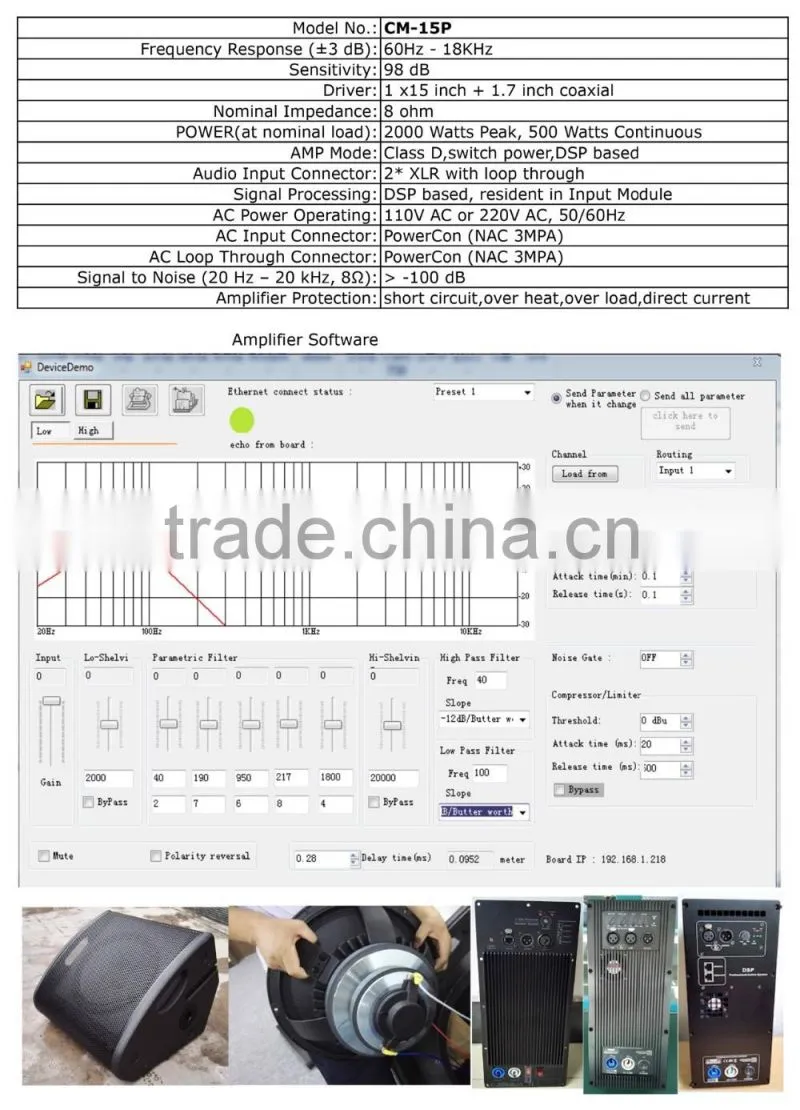

Specifications:
System

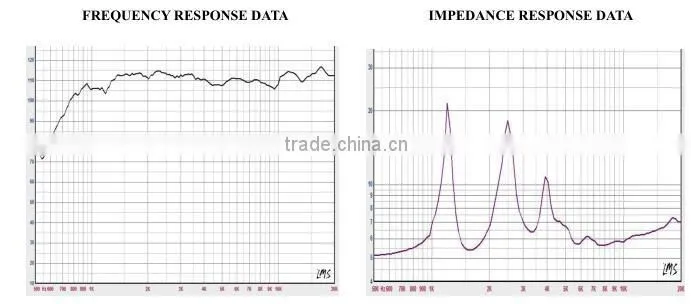

Frequency Response
Sensitivity
Nominal Impedance
Power Handing
Maximum SPL
Nominal Dispersion
Crossover Frequency 65 Hz - 18 kHz (±3 dB)
98 dB SPL (1W @ 1m)
8 ohms
500 watts, 1000 watts, 2000 watts
128 dB
50°(±10°) Axial symmetry
1.0 kHz
Drivers
Low Frequency
High Frequency 1 x 15(in) 380 mm (dia), 75 mm(3.5in)(voice coil dia)
1 x 3(in) 75 mm (voice coil dia), 36 mm(1in)(throat dia)
Physical
Enclosure Construction
Finish
Grille
Rigging
Other
Input Connectors
Dimensions H x W x D
Net Weight 15 mm (birch plywood with structured)
Wear-resistant textured black paint
Powder coated perforated steel,foam backed

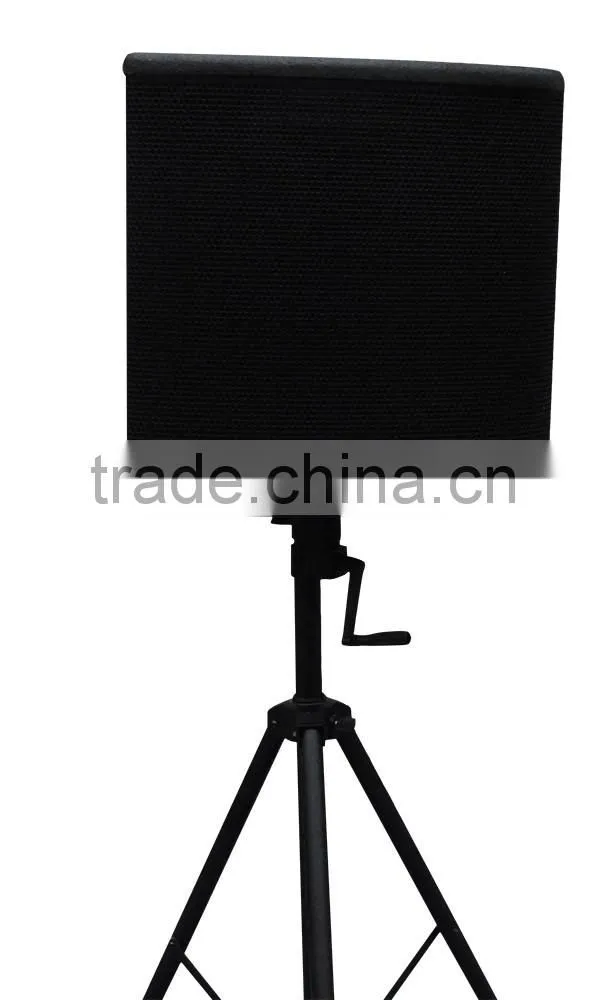

Adjustable pole mount socket
Bi-amp or passive drive
Speakon NL4 x 2
635 mm x 524 mm x 438mm
25 kg
