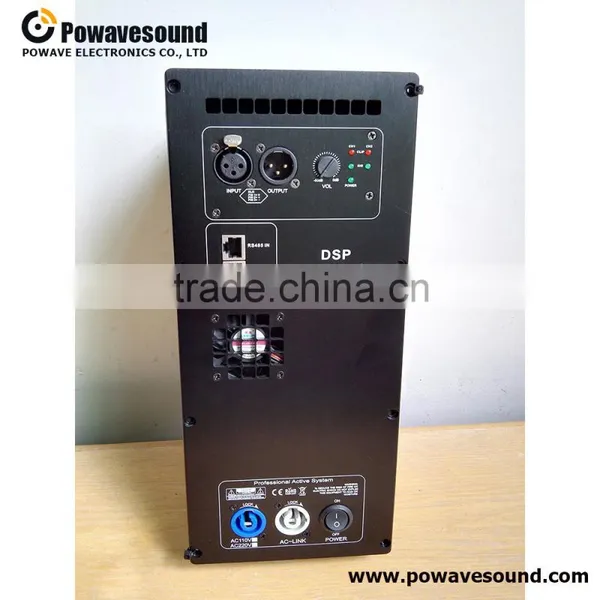

Help CenterProfessional Speaker Plate Amplifier 1 Input 2 Output Class D Amplifier Board With DSP Processor Around RMS 1000W
Related Products
-
DSP-2800 Powavesound Active Speaker Amplifier 800W + 15OW Bi-AMP Digital Active Speaker Amplifier ModuleUS$ 80 - 300MOQ: 10 Pieces -
Professional Speaker Subwoofer Amplifier Plate Class D 1 Input 2 Output Amplifier Board RMS 1600WUS$ 100 - 200MOQ: 10 Pieces
-
Professional Full Range Speaker Amplifier Plate Class D Amplifier Board RMS 1600W Best Match for Your PA SpeakerUS$ 100 - 200MOQ: 10 Pieces
-
DSP-2800 Powavesound Pro Audio Dsp Amplifier Module for 10", 12", 15", 2*10", 2*12", 2*15" Speaker and Line Array SpeakerUS$ 50 - 300MOQ: 10 Pieces
-
DSP-1800 Powavesound Dsp Active Speaker Amplifier ModuleUS$ 100 - 300MOQ: 10 Pieces
We are a professional OEM factory for Professional Speaker & Amplifier.
1) More than 10 years dedicate to Pro Audio Industry
2) All components and products are made by ourselves
3) Offer highest value-for-money products
4) Strictly OEM service & quality control
5) Friendly and responsible customer service
More info, Visit or mail us
Welcome to visit our factory. Sample order is available.
UNLOCK YOUR CREATIVITY.
With Powave Sound amplifiers Modules, creating a sound stage has never been so easy...
LA2800 is degined for powered line array system and column speakers.
SPECIFICATION:
| LF | HF | |
| Rated Power@8ohm /1KHz | 800W | 150W |
| Rated Power@4ohm /1KHz | 1200W | NC |
| Frequency Response | 20Hz-20KHz±1dB | 20Hz-20KHz±1dB |
| THD% 10%Rated Power,1KHz | <0.5% | <0.5% |
| Slew Rate Rated Power,1KHz | >20V/μs | >15V/μs |
| Damping Factor Rated Power,1KHz | >200 | >200 |
| Dynamic Range | ≥95dB | ≥95dB |
| S/N | ≥95dB | ≥95dB |
| Sensitivity Rated Power,1KHz | 1.28V rms | 1.28V rms |
| Voltage Gain | 36dB | 28dB |
| Input Impedance | Balance 20K/Unbalance10K | Balance 20K/Unbalance10K |
| N.W. | 1.8Kg | |
| Average Consumption | 350W | |
| Output Circuit | CLASS D | CLASS H |
| Protection | DC,Overheat,Short Circuit,Pressure Limit | |
| Voltage | AC100V---240V/50Hz~60Hz | |
1. Price Term: EXW Foshan(FOB Guangzhou optional)
2. Package: Seller's standard exporting carton
3. LOGO & Label: Seller's LOGO (Extra cost for OEM service)
4. Voltage & Plug: 220V, American standard plug (Optional)
5. Payment Term: T/T, 30% in advance 70% before shipment.(All bank commission is on BUYER side)
6. Lead Time: 15-20 days after payment be received
7. Quotation Valid: 15 days
8. Current Exchange Rate: 1USD=6.5RMB
9. One year warranty, Life-long maintenance(All after-service don't include shiping cost)
10. Shipping Cost: Pre-paid (optional)
