2015 Best Sales Stable Quality A3 Size 3d Effect uv Flatbed Printer Printing Onto PVC Card, USB, Wood, Case

2015 Best Sales Stable Quality A3 Size 3d Effect uv Flatbed Printer Printing Onto PVC Card, USB, Wood, Case thumbnail-1
2015 Best Sales Stable Quality A3 Size 3d Effect uv Flatbed Printer Printing Onto PVC Card, USB, Wood, Case photo-1
US$ 1 - 3,595 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, Flatbed Printer, UV flatbed printer
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Hangzhou KingMa Ware Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Other, Flatbed Printer, UV flatbed printer
Place of Origin Shanghai, China
Brand Name kmajet
Model Number KMA01UV
Usage Card Printer, Label Printer, Card Printer, Cloths Printer, Paper Printer, Tube Printer
Automatic Grade Automatic
Voltage 110V50HZ / 220V50HZ
Gross Power 80W coffee printing machine
Dimensions(L*W*H) 99*76*46cm
Weight 65KG
Certification CE, SASO, SGS
After-sales Service Provided Engineers available to service machinery overseas

2015 best sales digital led uv flatbed printer, stable quality A3 size uv printer printing onto PVC Card, USB, Wood, Case





3d effect uv flatbed printer Features:

  • UV curing patent technology, and cooperate with the imported high quality cooling water system,, to ensure the high light efficiency, 3d embossed effect, dry immediately,  good curing effect

  • Refit the original epson R2000 printer, adhering to the high precision, high speed function

  • Pressure Type Ink Supply ,sealed ink bottle

  • Grating inside ,reduce damage and polution. Square shaft,make sure high precision print and avoid print slower after long time used

  • Firmed and Thick flatbed ,can print heavy material,glass surface easy to clean

  • Grating inside , reduce damage
  • 3D embossed effect,Maintop software,print white and colored together
  • Epson DX7 print head,greatly save cost
  • Square shaft, make sure high precisioi printing and avoid  print slower after using long time

2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case



3d effect uv flatbed printer Specification:



A3 eight colors UV printer
Printer resolution 5760*1440dpi Print Direction Intelligentce double side
Print Method  Eightcolor On-demand inkjet (micro piezo print technology, intelligence drops transformation technology)
Print head L1800 with EPSON common print head,  R1800 with DX5 print head  Ink cartridge type Split type
Minimum ink drop size <1.5PL INK cosume 15-20ml/squre meter
Ink Supply System CISS
INK Configuration Scheme 8color:C+M+Y+K+WWWW or  CMYK+WW+VV
Max printable Area A3 310*520mm
Max adjustable height 85mm Max object thickness 80mm
Work Temperature 18℃-30℃ Distance of print head printing 1mm-3mm,1mm is the best
Work Requirement Clean room ,low dust,less sun light, good  Humidity 30%-70%
Rated Voltage 220V/110V
Interface USB2.0 Height adjust electric
Printer Size 770*640*462mm Speed 400Mbp
Packing Size 890*750*550mm Weight(G/N) 58/60KG



2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case







UV printer Cooling System:



LED UV is water cooling system,lower noise, lighter weight,smaller damage when printing,keep motor life longer.
Air cooling system: big noise, heavy body damage printer easy and motor life time is short



 2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case





 2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case





What Material can 3d effect uv flatbed printer Print On?



Direct to print material as below

Can print on metal, glass, crystal, tile ceramic, acrylic, phone case, PVC, PU, Leather, Silicone,Wooden and so on



Pre-coating print material as below

Metal,glass,crystal,tile ceramic, acrylic, wooden, need pre-coating before printing



UV Cure

No matter what material printed on ,will dry immediately



Cost

The cost of ink is about RMB 0.1 for one phone case



Speed

The speed for printing 1 iphone 5s case about 1-2min



2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case 2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case





Uv ink features:



l UV ink pigment particle diameter is less than 1 micron,it does not contain volatile organic solvents, the viscosity is very low,and it without excitant odour, we can ensure that the ink jet printing no plug nozzle phenomenon in the process, after a six-month high temperature storage test, no pigment, sinking, layered anomaly.
lLED UV ink is dry immidiately when sprayed, it can be used with the current market of various types of nozzle UV plate prints match.
lLED is suitable for UV ink jet printing metal, glass, ceramics, PC, PVC, ABS and other materials.After curing ink layer hardness, has strong adhesion to scrub resistance, solvent resistance, high gloss.
lUV ink have 6 colors:C,M,Y,K,W.W,the lightfast is 7-8 level,1L/barrel ,Applicable to the epson nozzle dedicated LED UV flat-panel printers

2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case

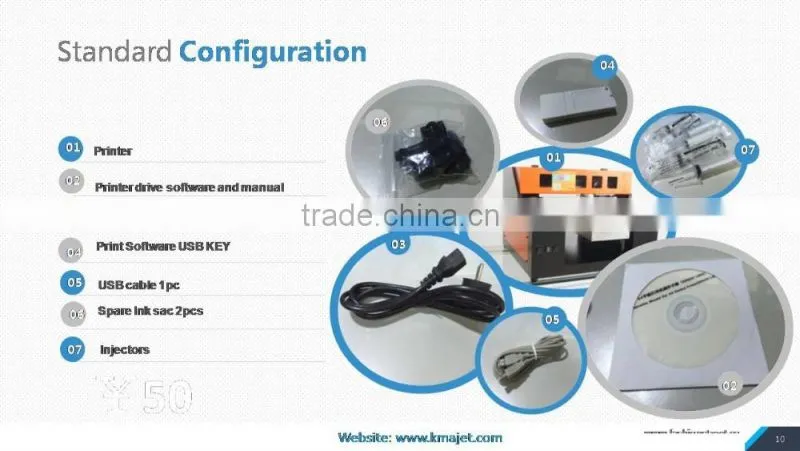

3d effect uv flatbed printer packing list



  • Printer
  • printer software driver and manual
  • power cable 1.8mm
  • printer software USB key
  • USB cable 1pcs
  • spare ink dampers 2pcs
  • syringe

2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case



UV printer package :



2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case



2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case2015 best sales stable quality A3 size 3d effect uv flatbed printer printing onto PVC Card, USB, Wood, Case
