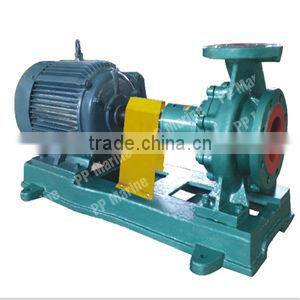

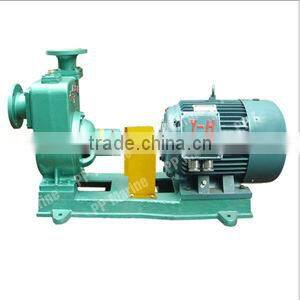

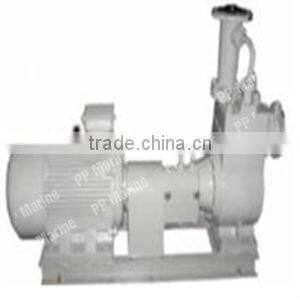

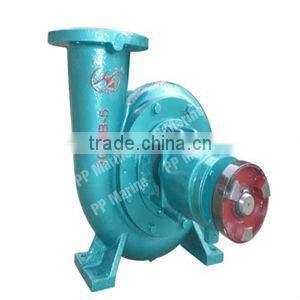

Help CenterMarine Horizontal Water Sealing/Pulverizing/Self-priming Centrifugal Pump
Related Products
Specifications
horizontal centrifugal pumpOur marine horizontal centrifugal pumps are applicable to varies uses in many types of ships.

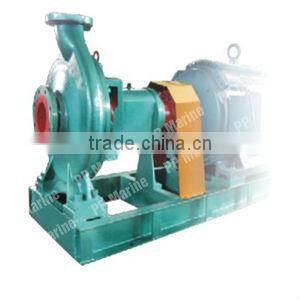

Marine Horizontal Centrifugal Pump-CB series
CB series marine horizontal centrifugal pumps are applicable to fire control, cooling and sanitation for vessels.
| Type | CB |
| Q (m3/h) | 10 to 860 |
| H (m) | 5.5 to 98 |
| n (r/min) | 1450,2900 |
| P (kw) | 1.87 to 46.7 |
| NPSH (m) | 4 to 6 |
Marine Horizontal Centrifugal Pump-CWF series
The CWF series marine horizontal water sealing pump is suitable to the protection pump on dredger where it is used to seal the water. It is also suitable to the bilge pump, cooling pump and fire pump on boats. It may be used to deliver the sea water, fresh water or other non-corrosive liquid medium lower than 70°C.
| Type | CWF |
| Q (m3/h) | 5 to 200 |
| H (m) | 5 to 200 |
| n (r/min) | 2900 |
| P (kw) | 0.75 to 112.2 |
| NPSH (m) | 3.5 to 5 |
| [Hs] (m) | 6 |
Marine Horizontal Centrifugal Pump-CWL series
CWL series marine horizontal centrifugal pumps are applicable to fire control, cooling and sanitation for vessels.
| Type | CWL |
| Q (m3/h) | 4 to 680 |
| H (m) | 8 to 85 |
| n (r/min) | 1450,2900 |
| P (kw) | 0.93 to 38.25 |
| NPSH (m) | 3.5 to 6 |

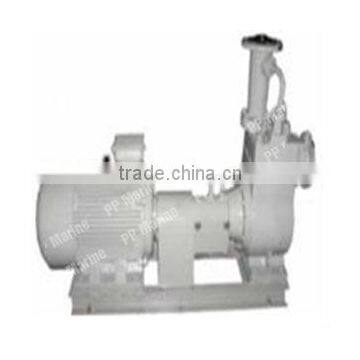

Marine Horizontal Centrifugal Pump-CYZ series
CYZ series marine horizontal self-priming cantrifugal oil pump are used at boats and ships transport petrochemicals such as petrol, coal oil and diesel oil. The transmission medium temperature is -20°C to 80°C. This series pump is a high quality marine cargo oil pump.
| Type | CYZ |
| Q (m3/h) | 6.3 to 450 |
| H (m) | 12 to 80 |
| n (r/min) | 1450,2900 |
| P (kw) | 1.1 to 110 |
| NPSH (m) | 3.5 to 5 |
Marine Horizontal Centrifugal Pump-CWZ series
CWZ series marine pumps are used at cabin bottom to cool water and fight fire. It is able to carry sea water under 80°C, fresh water and other liquid medium.
| Type | CWZ |
| Q (m3/h) | 1.5 to 480 |
| H (m) | 19.5 to 137.5 |
| n (r/min) | 1450,2950 |
| P (kw) | 1.27 to 63.7 |
| NPSH (m) | 4.1,5.1 |
Marine Horizontal Centrifugal Pump-CIS/CIR series
CIS/CIR series marine horizontal centrifugal pump is widely used for transfer fresh water, sea water. The pumps are applicable to fire control, cooling and sanitation. CIR series pump shall be used for circulation of hot water less than 150°C. The performance parameters and installation dimensions of CIR series pumps are the same as CIS series.
| Type | CIS CIR |
| Q (m3/h) | 3.75 to 552 |
| H (m) | 11 to 190 |
| n (r/min) | 1450,1740,1750,2900,3480 |
| P (kw) | 0.16 to 156.86 |
| NPSH (m) | 2 to 7 |

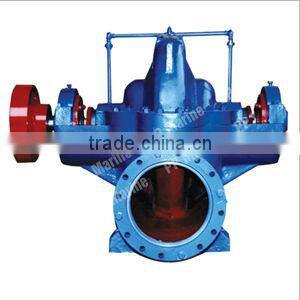

Marine Horizontal Centrifugal Pump-S series
S type pump is single stage double suction horizontal centrifugal pump, applied to shipyard, large ships for ballast pumps and fire pumps. The temperature of the liquid can not be higher than 80°C.
| Type | S |
| Q (m3/h) | 133 to 280 |
| H (m) | 36 to 100 |
| n (r/min) | 2950 |
| P (kw) | 18.6 to 59.8 |
Other related products:
Certificate:
Approved by ABS/LR/BV/NK/DNV/RINA/RS/IRS/CCS etc.
