Steering Kit for Marine Outboard Engine/ Marine Steering Kit
- T/T
You May Like
Product Details
| Part | Other, Steering |
Product Description

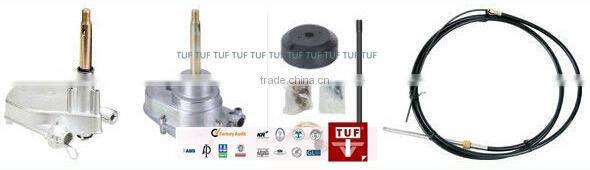

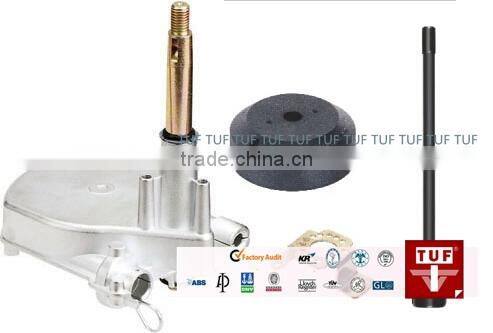

STEERING HELM:
The Steering Helm is a gearbox arrangement mounted on the dashboard of the boat.
On the shaft of the helm is mounted the Steering Wheel.
Applications:
Suit for max.9 meters out board boat(up to 135hp)
Planetary gear design:3 turns lock to lock
Material:Chromed plated Zinc Alloy
BEZEL KITS
Bezel kit is a plastic part along with related hardware which is mounted between
the steering wheel and dash board to cover the helm hardware/
Features:
Bezel made from Engineering Plastic
Black and white color available as standard options
90 degree and 20 degree tilt options
STEERING CABLE
The Steering Cable is a push pull mechanical cable which convents the rotary motion
of the helm to linear motion at the engine/rudder.One end of the cable is connected
to the helm & the end to the rudder.
Features:
Output ends made of 316 Stainless Steel
Maximum Trave:9inch(225mm)
Minimum bend radius:8 inch (200mm)
Maximum working load at Tiller end:5000N
Cable Outer Diameter:16.5mm
Spiral inner cable Diameter:8mm
