Cylindrical marine fender/marine rubber fender
- 20000 Set / Sets per Month
- shanghai
Product Details
Place of Origin: | Chongqing, China | Brand Name: | TUF |
Product Description
Specifications
Cylindrical Rubber FenderSize:Dia.150 to Dia.2000
Other specification out of the series can be produced upon request.
Cylindrical marine fender
Features for cylindrical rubber fender:
1.Cylindrical fender is applicable for longitudinal and crosswise of ships when berth at the dock.
2.Cylindrical rubber fender has low reaction forces, little surface pressure and reasonable energy absorption.
3.cylindrical fender is especially applicable for upper part of integral docks and heavy style docks.
4.Cylindrical fender is applicable for ships with different size.

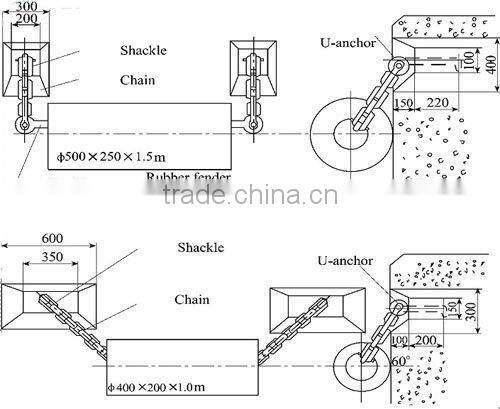

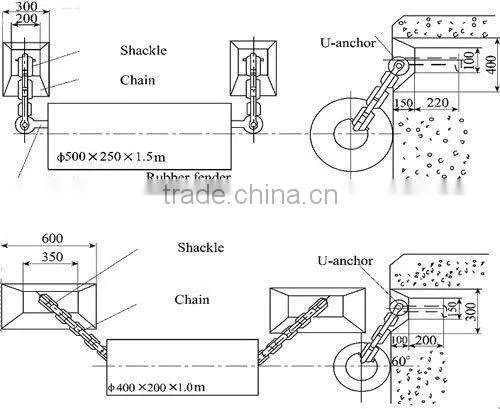

5.Various installations styles such as horizontal, vertical and diagonal etc.
Types:Dia.150 to Dia.2000 Other specification out of the series can be produced upon request
Performances:Standard Type and High reaction force
Rated Compression Deflection:50
Cylindrical marine fender data
Types | Out Dia. | Inter Dia. | Weight | Model | Rated | Performance | Tolerance(%) | |||
Reaction Forces | Energy Absorption | |||||||||
Standard | Higher | Standard | Higher | |||||||
Dia150*L | 150 | 75 | 16 | Dia150*1000 | 50 | 44 | 73 | 1.5 | 2.3 | 10 |
Dia200*L | 200 | 100 | 39 | Dia200*1000 | 60 | 95 | 2.6 | 4.2 | ||
Dia250*L | 250 | 125 | 46 | Dia250*1000 | 75 | 120 | 4 | 6.5 | ||
Dia300*L | 300 | 150 | 66 | Dia300*1000 | 89 | 143 | 6 | 9 | ||
Dia350*L | 350 | 175 | 90 | Dia350*1000 | 104 | 167 | 8 | 13 | ||
Dia400*L | 400 | 200 | 118 | Dia400*1000 | 119 | 191 | 10 | 17 | ||
Dia500*L | 500 | 250 | 184 | Dia500*1000 | 148 | 239 | 16 | 26 | ||
Dia600*L | 600 | 300 | 265 | Dia600*1000 | 179 | 286 | 24 | 37 | ||
Dia700*L | 700 | 350 | 361 | Dia700*1000 | 208 | 334 | 31 | 50 | ||
Dia800*L | 800 | 400 | 471 | Dia800*1000 | 237 | 383 | 41 | 66 | ||
Dia900*L | 900 | 450 | 596 | Dia900*1000 | 268 | 430 | 52 | 84 | ||
Dia1000*L | 1000 | 500 | 736 | Dia1000*1000 | 297 | 479 | 64 | 103 | ||
Dia1100*L | 1100 | 550 | 890 | Dia1100*1000 | 331 | 528 | 77 | 129 | ||
Dia1200*L | 1200 | 600 | 1060 | Dia1200*1000 | 363 | 574 | 95 | 152 | ||
Dia1300*L | 1300 | 650 | 1244 | Dia1300*1000 | 392 | 623 | 108 | 179 | ||
Dia1400*L | 1400 | 700 | 1442 | Dia1400*1000 | 422 | 670 | 128 | 208 | ||
Dia1500*L | 1500 | 750 | 1656 | Dia1500*1000 | 451 | 718 | 147 | 238 | ||
Dia1600*L | 1600 | 800 | 1884 | Dia1600*1000 | 481 | 776 | 176 | 282 | ||
Dia1700*L | 1700 | 850 | 2127 | Dia1700*1000 | 511 | 824 | 206 | 338 | ||
Dia1800*L | 1800 | 900 | 2384 | Dia1800*1000 | 541 | 872 | 247 | 406 | ||
Dia1900*L | 1900 | 950 | 2657 | Dia1900*1000 | 570 | 920 | 288 | 487 | ||
Dia2000*L | 2000 | 1000 | 2944 | Dia2000*1000 | 653 | 1054 | 321 | 584 |
