Marine PA Type Offshore Boat Davit/ Offshore Platform Davit

Name: Marine PA Type Offshore Boat Davit/ Offshore Platform Davit
Brand: Perpetual
Availability: InStock

FOB Price

US$ 1 - 1 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

Chongqing, China

Brand Name

Perpetual

A frame rescue boat davit with different Classification society Certificate.

PA Type Offshore Platform Davit

1.The davit conforms to the latest amendments to SOLAS, 1974 [MSC.47(66)] and international LASA code [MSC.48(66)]

2.This drawing shows left type appliance, right type appliance shall be made symmetrically

3.The design can be done by the clients requirement

Main Details:

The Platform offshore Davit consisting of a fixed structure has the capacity to launch lifeboat fully loaded using gravity only
Twin hooks for Lifeboats
Single hooks for Rescue boats
Minimum of maintenance
Other sizes/dimensions available on request

Basic specification for inquiry:

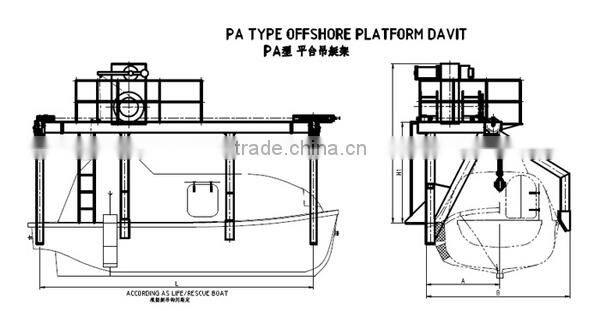

Drawing:

Main Technical Specification
Product No.	S.W.L (KN)	Main Dimensions(mm)				Suitable Boat
Product No.	S.W.L (KN)	A	B	H1	H2	Suitable Boat
TUFPA-001	65	1400	2870	2200	3600	5m-7.5m
TUFPA-002	85	1730	3550	2375	3650	7.5m-8m
TUFPA-003	105	1750	3600	2400	3900	8.5m
TUFPA-004	138	2130	4250	2700	4050	9m-10m
