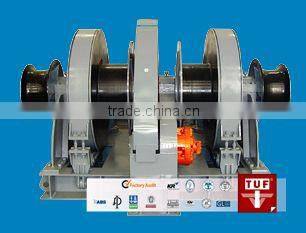

Marine winch
- 0 per Month
- T/T
Product Details
Brand Name: | PP Marine |
Product Description
Specifications
Marine winch1. Hydraulic, electric
2. Single drum, double drums
Main Technical parameters
Rated Pull (KN) | Rated Speed (m/min) | Drum Capacity (m) | Motor Power (kw) |
5 | ≥12 | Φ8x100 | 3/1.2 |
10 | ≥12 | Φ10x150 | 4.3/1.7 |
20 | ≥12 | Φ15x150 | 8.5/3.5 |
30 | ≥15 | Φ17x150 | 11/11/7.5 |
40 | ≥15 | Φ18x150 | 16/16/11 |
50 | ≥15 | Φ20.5x150 | 22/22/16 |
75 | ≥15 | Φ26x200 | 30/30/22 |
80 | ≥15 | Φ26x200 | 30/30/22 |
100 | ≥15 | Φ30x200 | 45/45/30 |
125 | ≥15 | Φ30x200 | 45/45/30 |
160 | ≥15 | Φ30x200 | 45/45/30 |
200 | ≥9.6 | Φ41x250 | 60/60/45 |
250 | ≥9.6 | Φ44.5x250 | 60/60/45 |
315 | ≥7.8 | Φ52x250 | 60/60/45 |
400 | ≥7.8 | Φ56x250 | 85/85/64 |
450 | ≥7.8 | Φ56x250 | 85/85/64 |
500 | ≥7.8 | Φ58x250 | 85/85/64 |
560 | ≥6 | Φ64x250 | 85/85/64 |
600 | ≥6 | Φ64x250 | 85/85/64 |
650 | ≥6 | Φ70x250 | 85/85/64 |
1000 | ≥4 | Φ85x250 | 85/85/64 |
1200 | ≥4 | Φ95 x250 | 120/120/90 |
1500 | ≥4 | Φ95 x250 | 150/150/72 |
1800 | ≥4 | Φ95 x250 | 150/150/72 |
2000 | ≥4 | Φ100 x250 | 180/180/135 |
The above technical parameters and dimensions are not fixed, they can be designed specially in according to your requirements. |
Our winches have rugged design, heavy duty split bronze bearings and amply dimensioned brakes.
The operating mechanism for brake and clutches are designed for easy and safe manual operating.
And can also be remotely operating by hydraulic cylinders. The brakes are easily adjustable, and all transfer of external forces to the deck construction is by the foundation bolts. The winch design provides easy access to all points for lubrication and inspections.
Classification society certificate
We attaches importance to the quality of products. It has IS09001 quality system, approval for the marine products issued by China Shipbuilding Industrial Crop.
We also have got the classification society approval of CCS,BV,GL,LR,RINA,ABS,NK,KR,DNV etc.
