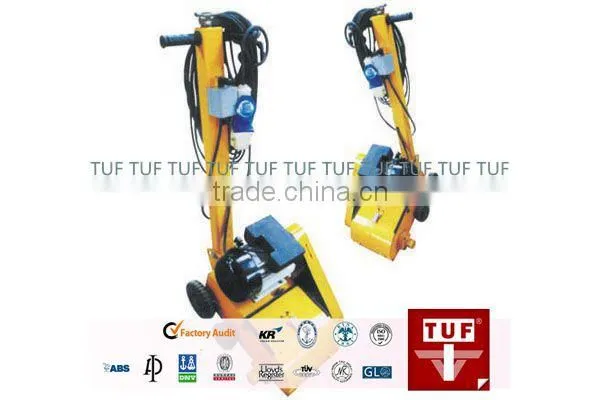

DECK SCALER ELECTRIC

DECK SCALER ELECTRIC thumbnail-1
DECK SCALER ELECTRIC photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
PP marine, PP marine
Model Number:
cable winch, brand new
Part:
Other, cable winch, Marine Hardware
Contact Supplier Request Quote Chat Now
Chongqing Perpetual Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PP marine, PP marine
Model Number cable winch, brand new
Part Other, cable winch, Marine Hardware

Specifications

electric deck scaler for non slip porcelain floor tiles
1, Gasoline power, Japan or America
2, Width:200-250mm, depth:5-8mm

electric deck scaler

DECK SCALER ELECTRIC



Ideal for



Removing traffic line and coatings;

Small, narrow areas or edges;

Sidewalk repair;

Floor preparation or cleaning;

Create non slip surfaces.



Performance



  • Working width: 200mm, 250mm;
  • Working depth: 3mm, 5mm, 7mm;
  • Original gasoline engine: Honda, Kholer, B&S;
  • With depth instructions scale dial, milling depth can be accurately adjusted;
  • SKF ball bearing and casting bearing assembly;
  • Vacuum and water outlet for dust free operation.



Parameter



 Model HWS190 HWS200 HWS255
 Working Width 190 mm 200 mm 255 mm
 Working Depth 3 mm 6 mm 8 mm
 Power 7hp 9.5hp or 5.5kw 14hp or 7.5kw
 Drum Rotation Downcut Downcut Downcut
 Drum Assembly Changeable Changeable Changeable
 Working Efficiency 70 m2/h 120 m2/h 160 m2/h
 Depth Control Yes Yes Yes
 Num of Shaft 4 6 6
 Packing(L*W*H) 100*51*97cm 105*54*103 cm 108*65*103 cm
 Walking Manual Manual Manual



Technical details:

 1, More gasoline engine for choice:  Original Honda, Kholer, B&S





2, More models for choice: working width: 190mm,200mm, 250mm, 300mm,350mm





3, six axis,  a drum,  special heat treatment; with TCT blades. Easy to replace the drum assembly.



 4, The real picture after scariying concrete.



5, part details:



No.1 , Four grade air filter prevent dust from outside. (Kholer engine is 6 grade air filter, and Honda engine is 4 grade air filter)



No.2 , SKF casting ball bearing and V belt, which the engine power is sent to bearing.



No.3 , Lift, down and adjust the height of drum.



No.4 , Charge the drum assembly in the five minutes.



No.5 , Vacuum and water port for dust-free operation; See the drum assembly under the machine.
