Marine Electric Winch Hydraulic Winch Windlass

Chongqing Perpetual Import And Export Co., Ltd.

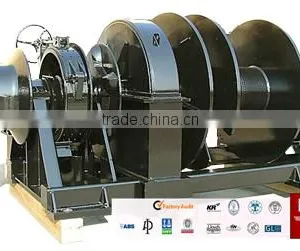

Marine Electric Winch Hydraulic Winch Windlass thumbnail-1
Marine Electric Winch Hydraulic Winch Windlass photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TUF
Part:
Other, Winch
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TUF
Part Other, Winch

Marine Winch/Electric winch/Hydraulic winch

  Its base is from highstrength steel plates welded together, rotating bearing components

produced using high quality copper. And hull bolt connections for the installation. Installation

convenience. It is the structure of solid and stable, excellent manufacturing quality and low prices. Easy to operate, suitable for a variety of small and medium-sized ship docked mooring.



Specification

Marine Electric/Hydraulic Winch

Drive

Electric/Hydraulic Driven

Configuration

Single /Double Gypsies,single/Double Towing Drum

Drum Rope

P.P Rope or S.W.R

Rated Pull

5 To 300 Tones (1st Layer)

Brake Holding

Up To 450 Tones ( Static ,1st Layer)

Speed

Complying With ISO/Classification Society Requirement

Clutch

Manual/Hydraulic Operated Jaw Clutch

Brake

Manual/Hydraulic Operated Brake

Release

Emergency Quick Release

Control

Local Control Console & remote Control Panel

Optional Functions

Auto-tension; Length and Tension Monitoring System;

Two Speeds or Three Speeds Are Available Upon Request

Our Advantages:

1 High quality with competitive prices
2 Much experience in producing and exporting windlasses
3 Special design for different clients.
4.Short delivery time if clients need urgently



Note: The parameter table is only for reference, we can customize as your requirement.

Much experience High quality with competitive price
Certificate: CCS, ABS, GL, LR, RINA etc



Questions:

When you are inquiring, please supply the following technical requirements:



1. Detailed usage condition

2. Do you need hydraulic system

3. Rope capacity on drum

4. Speed of rope

5. Pull force of rope





Rated

Pull(kN)

Rated

Speed(m/min)

Drum

Capacity(m)

Motor

Power(kW)

10

≥12

DIAMETER10x150

5.5

20

≥12

DIAMETER15x150

11

30

≥15

DIAMETER17x150

15

40

≥15

DIAMETER18x150

22

50

≥15

DIAMETER20.5x150

30

75

≥15

DIAMETER26x200

45

80

≥15

DIAMETER26x200

45

100

≥15

DIAMETER30x200

45

125

≥15

DIAMETER30x200

75

160

≥15

DIAMETER32x250

75

200

≥9.6

DIAMETER41x250

75

250

≥9.6

DIAMETER44.5x250

90

315

≥7.8

DIAMETER52x250

90

400

≥7.8

DIAMETER56x250

110

450

≥7.8

DIAMETER56x250

110

500

≥7.8

DIAMETER58x250

110

560

≥6

DIAMETER64x250

132

600

≥6

DIAMETER64x250

132

650

≥6

DIAMETER70x250

132

1000

≥4

DIAMETER85x250

132

1200

≥4

DIAMETER95x250

160

1500

≥4

DIAMETER95x250

200

1800

≥4

DIAMETER95x250

250

2000

≥4

DIAMETER100x250

270

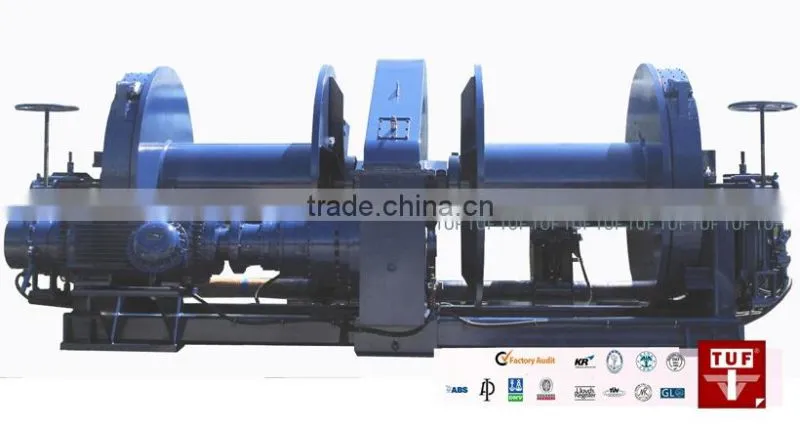

Marine Electric winch Hydraulic winch windlass
