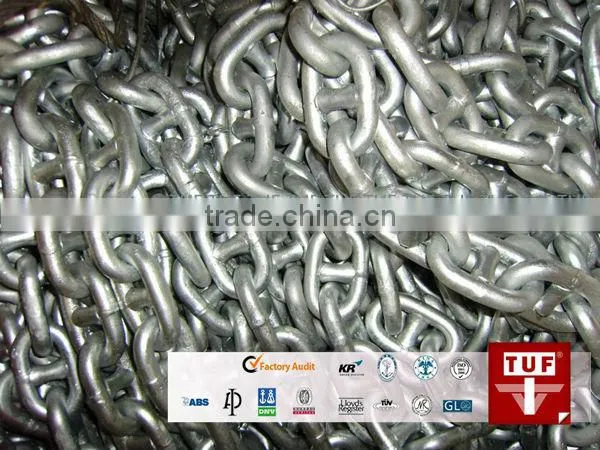

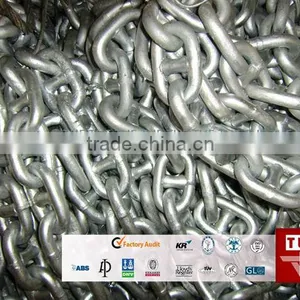

Hot Galvanized U2 Stud Link Anchor Chain

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer, Trading Company

Year Established:

2011

Factory Size:

5,000-10,000 square meters

Contact Supplier Request Quote Chat Now

Chongqing Perpetual Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Specifications

Hot Galvanized U2 Stud Link Anchor Chain
1. High quality
2. Reasonable price

Hot Galvanized U2 Stud Link Anchor Chain

Information:

1.Material:carbon steel, alloy steel or according to your requirement

2.Length: standard length is 27.5m, we also produce according to your requirement.

3.Grade:U1, U2, U3 stud link and open anchor chain

4.Surface: Black tarred, Hot Dip Galvanized, self-color.

5.Tension breaking load conforms to National Regulations.

6.Certificate: LR, ABS, DNV, BV, NK, GL, RINA,CCS.

7.Diameter:12.5mm to 152mm.

DESCRIPTIONS
1. Specification: U2, U3 Diameter 12.5 - 152mm
2. Category and grade: AM2 and AM3 anchor chain for ship use, ORQ, R3,R3s, R4, R4s, and R5 offshore mooring chains and their accessories
3. Applied standard: ISO 1704:2007, IACS W18 and W22, API-2F (U.S.A),rules of classification societies, GB/T 549-1996 (China) and other non-standard products in order to satisfy customers
4. Approved societies: approved by 11 international classification societies, such as ABS, BV, CCS, CR, DNV, GL, KR, LR, NK, RINA, and SGS, CE.
5. Material: Cast Steel
6. Finish: Black Tar Paint

We could also provide you the offshore mooring chains R3, R3S, R4 and R5.

And also we could provide you following accessories:

Products	Common chains	Accessory
Details	All kinds of grades of marine stud and studless flash welded chains with diameter from 2mm to 122mm	All specification of Kenter shackles, Joint shackles, Anchor shackles, Swivels, Buoy shackles and Swivel shackles

Here are some technical parameters of the chains from 12.5mm to 60mm for reference:

Chain Diameter	Length of five Consecutive links	High Strength	Breaking Load	Extra-high Strength	Breaking Load	Mass Kilograms per 27.5 meters
		Grade 2		Grade 3
		Proof Load		Proof Load
mm	mm	kN	kN	kN	kN	kg
12.5	275	65.7	92.2	92.2	132.4	110
14	308	82.4	115.7	115.7	164.8	130
16	352	106.9	150	150	215.7	170
17.5	385	127.5	179.5	179.5	260.8	180
19	418	150.9	210.8	210.8	301.1	220
20.5	451	174.6	244.2	244.2	349.1	260
22	484	200.1	280.5	280.5	401.1	300
24	528	237.3	332.4	332.4	475.6	340
26	572	277.5	389.3	389.3	556	420
28	616	320.7	449.1	449.1	642.3	480
30	660	367.7	513.9	513.9	734.5	550
32	704	416.8	582.5	582.5	832.6	610
34	748	467.8	655.1	655.1	936.5	700
36	792	522.7	731.6	731.6	1049.3	790
38	836	580.6	812	812	1157.2	880
40	880	640.4	896.3	896.3	1284.7	970
42	924	703.1	980.7	980.7	1402.3	1070
44	968	768.8	1078.7	1078.7	1539.6	1170
46	1012	836.5	1167	1167	1676.9	1270
48	1056	908.1	1274.9	1274.9	1814.2	1380
50	1100	980.7	1372.9	1372.9	1961.3	1480
52	1144	1059.1	1480.8	1480.8	2108.4	1600
54	1188	1137.6	1588.7	1588.7	2265.3	1720
56	1232	1216	1706.4	1706.4	2432	1850
58	1276	1294.5	1814.2	1814.2	2598.8	1990
60	1320	1382.7	1914.7	1914.7	2765.5	2120
