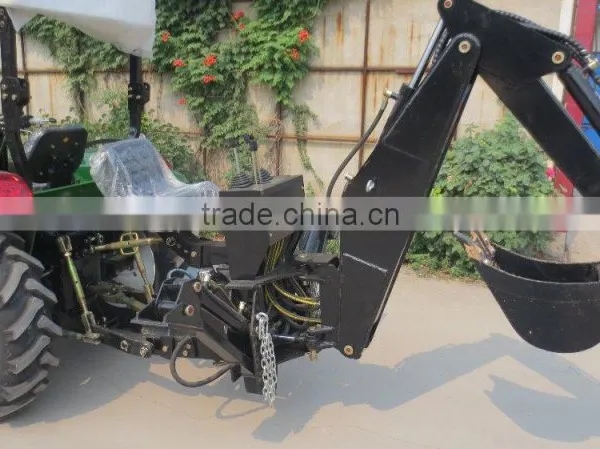

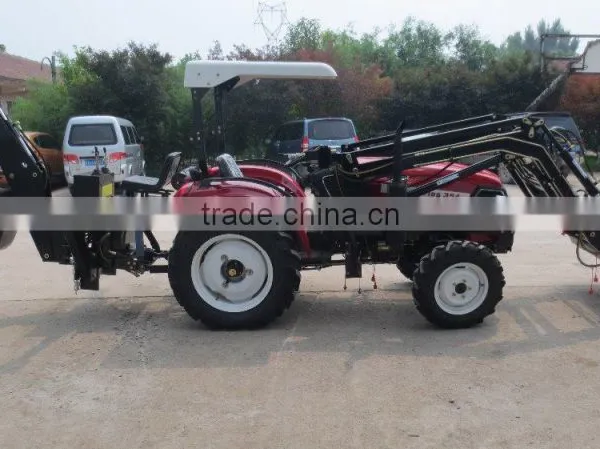

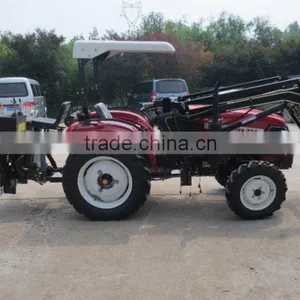

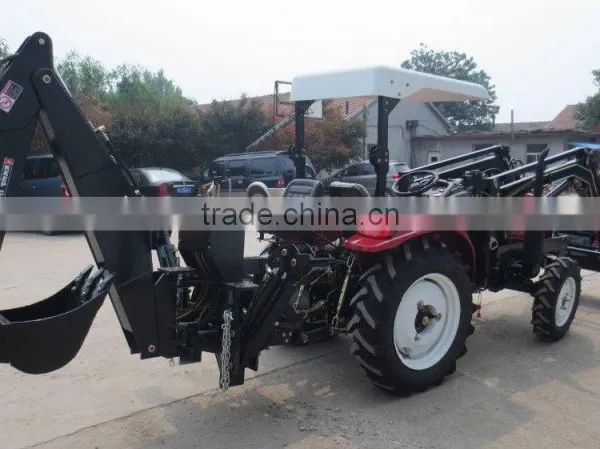

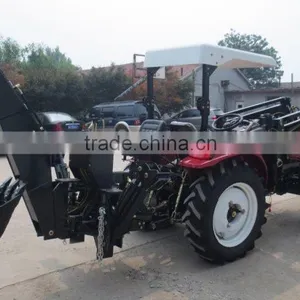

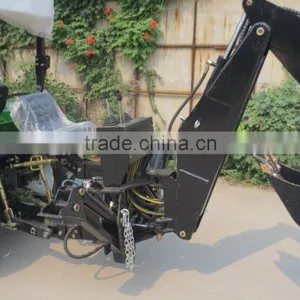

Both Sides Busy Small Farm Wheel Tractor Front Loader and Backhoe

Name: Both Sides Busy Small Farm Wheel Tractor Front Loader and Backhoe
Brand: LUWEI
SKU: 133290449
Availability: InStock

US$ 1,800 - 2,200 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Farm Machinery

Place of Origin:

Shandong, China

Weifang Luke Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Farm Machinery

Place of Origin Shandong, China

Brand Name LUWEI

Model Number LW-6/LW-7/LW-8

Dimension(L*W*H) 2200*850*1100mm

Weight 500KG

Features Tractor Backhoe

Certification ISO9001

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Specifications for tractor towable backhoe LW-6,LW-7

Model		LW-6		LW-7
Specification		Inch	Metric	Inch	Metric
Tractor HP		25-30HP		30-45HP
3-point Linkage		Cat-1		Cat-1
Structure Weight		1060lb	480kg	1100lb	500kg
A	Digging Depth(two foot flat bottom)	5.74’	1750mm	6.4’	1950mm
B	Reach from center line of Swing pivot	8.53'	2600mm	9.51’	2900mm
C	Loading Height(bucket at 60°)	5.64’	1720mm	6.03’	1840mm
D	Transport Height(maximum)	6.03’	1840mm	6.75’	2060mm
E	Extend Height	9.41'	2870mm	10.2'	3110mm
F	Loading Reach(bucket at 60°)	3.11’	950mm	3.87'	1180mm
G	Transport Overhang	3.54'	1080mm	3.64'	1110mm
H	Undercut	2.4'	730mm	2.72'	830mm
I	Bucket Rotation	180°		180°
J	Stabilizer Spread(up position)	4.3’	1310mm	4.3’	1310mm
K	Stabilizer Spread(down position)	4.3’	2100mm	6.9’	2100mm
L	Swing Arc	180°		180°
M	Bucket width	300mm		400mm
N	Bucket cubage	0.036		0.045
