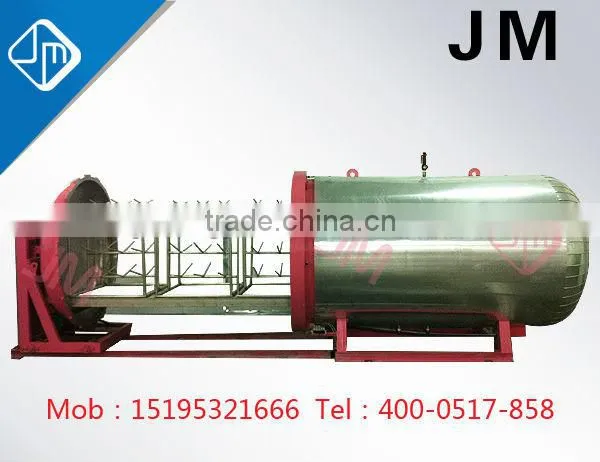

Acuum Yarn Conditioning Machine
Functions and features
1. This equipment adopts advanced electric heating system, can easily realize humidity and twist of various yarn fiber textiles without steam. Quick-open type door structure makes it safe and reliable.
2. Indirect type steaming tanker can even; precise and downy evaporate yarn from low temperature to high temperature. Adopt microcomputer steam process system, precision temperature between±0.5°C, ensure steaming process according to the budget process acc
3. Yarn will become stable when the fluid pressure is up to a certain value through yarn steaming tanker and through adjust of the steam, weight will increase from inside to outside uniformly, so to improve quality, finalize the design, keep the yarn orig
4. JM Indirect type yarn steaming tanker adopts high-quality containerboard, which is durable, safe, environmental protection and with resistance. The equipment can be started through one key and good sealing.
5. JM automatic steaming machine with different open door mode, transmit yarn steaming more convenient and yarn seems more thoroughly.

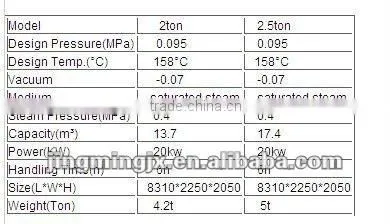

Main technical parameters
1. Processing time: 1-2 hours /each yarn lathe
2. Carrying capacity: Different load capacity can be designed according to customer’s require.
3. Installation capacity: 30-40KWh or 60KG steam/ton
4. Adopt double evaporate empty technology,vacuum pulp capacity 2KWh/ton.
5. Operating temperature: 50°C—120°C
6. Working pressure: –0.085-0.07MPA
7. Colorful touchable screen with PLC control system
