Help CenterAS Industrial AC Scroll Air Compressor for Sale 5.5kw
Related Products
-
AL Industrial AC Scroll Air Compressor for SaleUS$ 150 - 1,000MOQ: 1 Set -
AL Industrial AC Scroll Air Compressor for Sale 7.5kwUS$ 150 - 1,000MOQ: 1 Set
-
AL Industrial AC Scroll Air Compressor for Sale 30kwUS$ 150 - 1,000MOQ: 1 Set
-
AL Industrial AC Scroll Air Compressor for Sale 22kwUS$ 150 - 1,000MOQ: 1 Set
-
AL Industrial AC Scroll Air Compressor for Sale 5.5kwUS$ 150 - 1,000MOQ: 1 Set
Technical Data:
AS Industrial AC scroll air compressor for sale
Displacement: 0.8M3/min , 28.25 CFM
Enviroment Temperature ( °C ): -5 to 45
Discharge Pressure(bar/psi): 8 /116
Discharge Temperature( °C ): < Enviroment Temperature +50
Drive Method: Direct drive
Air outlet oil content : ≤ 3
Motor (KW/HP): 5.5/7.5
RPM (r/min): 2900
Power supply : 380V /50Hz
Main motor protection grade : IP 55
Noise( dB (A) ): 55 ±3
Net Weight (kg): 160
Air Outlet Pipe Diameter ( Inch ): G3/4"
Dimension (Lx Wx H mm): 900*450*800
Contract Manufacturing:
OEM Service Offered
Other electricity supply can customize,such as 110V/1Phase/60hz,220V/3Phase/60Hz,415V/3Phase/50Hz etc.
Different size tank can also make to order .
Guarantee and after-sales service:
One year guarantee for the whole machine except maintenance parts
24 hours technical support by mail or call
Specific Features:
1. High-efficiency motor
IP55 motor (Class F insulation B rise) protects against dust and chemicals. Long-term stable operation even in harsh environments up to 46°C (115°F).
2. Efficient air-oil separation
Reduction of pressure drops and energy costs. Low oil consumption ensures minimal maintenance costs and long
compressor lifetime.
3. Superior air filtration
Two-stage dust removal and filtering system with efficiency of up to 99.9% even in heavy-duty environments (particles ≥ 3 micron). Protects compressor parts and components, ensures air quality and extends the service life of the overall air system.
4. Heavy-duty oil filter
Outstanding oil purification capability ensures a clean compressor oil system. High reliability of screws, bearings and gears
in harsh environments. Long service period and easy and quick filter change reduce maintenance costs.

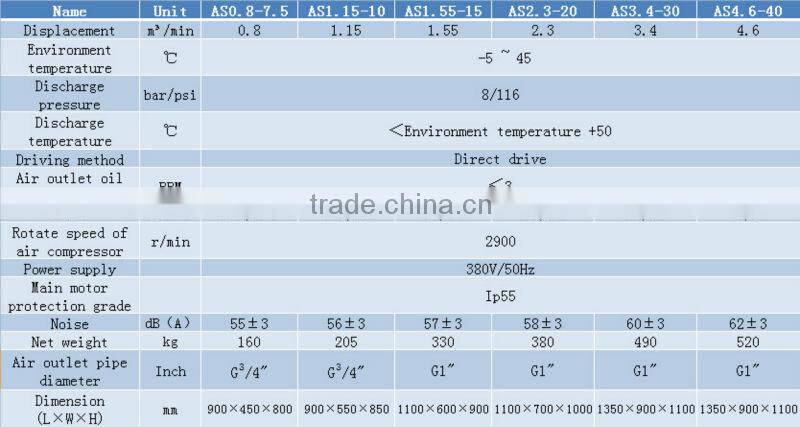

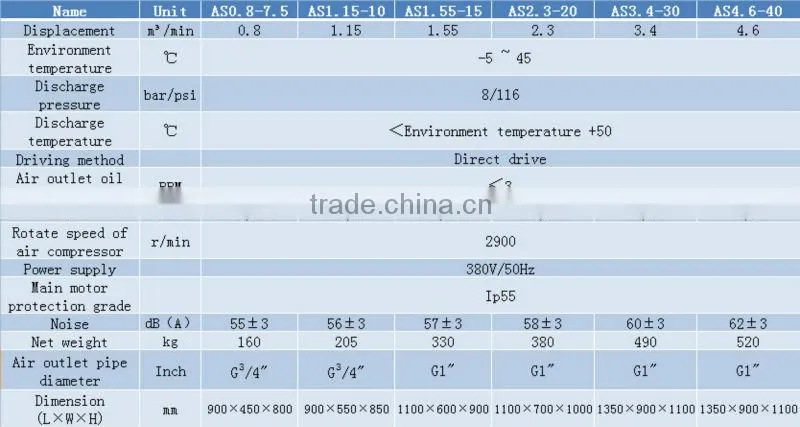

Technical data chart :
We’re manufacturer !
FUCAIcompany is integrated with the ability of air compressors researching, producing, selling and trading. In the same time, it is one of the air compressor companies with the most varied types and complete specifications. The products are featured by original and unique, energy-saving and efficient characters, so that bring our company at a leading position in the same industry.
FUCAI company is one of the national points of air compressor production bases, which got self-supported import and export right. It was certified by the national production license, national energy saving & consumption identity authentication, and ISO9001 quality management system. Our products are popular throughout the whole country, and being exported to Asia, USA, Europe, and other countries & regions, also are trusted by customers at home and abroad due to excellent quality and good technical services.
Welcome new and old customers come to visit our company and make guidance !
