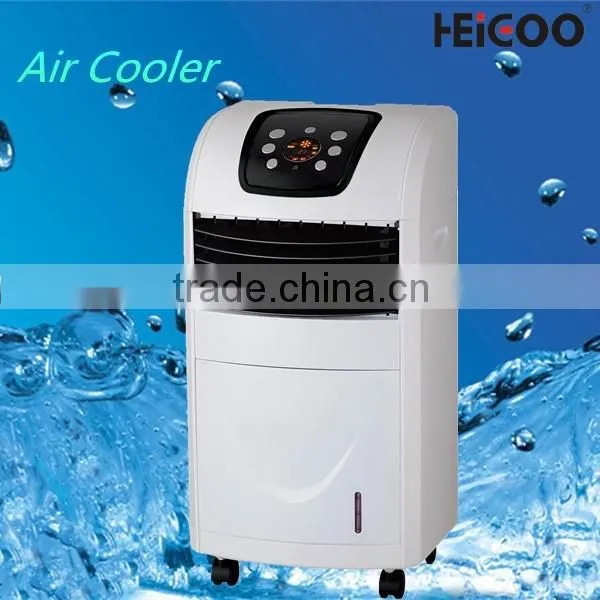

OEM New Type Air Cooler Air Cooling Fan with water tank

Specifications:

Features:

Model No:

ACS-08

*Digital control system with LED display

Voltage

220V/110V

*Fan,cooler,heater,humidifier,air fresh ionizer

Frequency

50Hz/60Hz

*Environment cardboard water curtain

Power

65W/900W/1800W

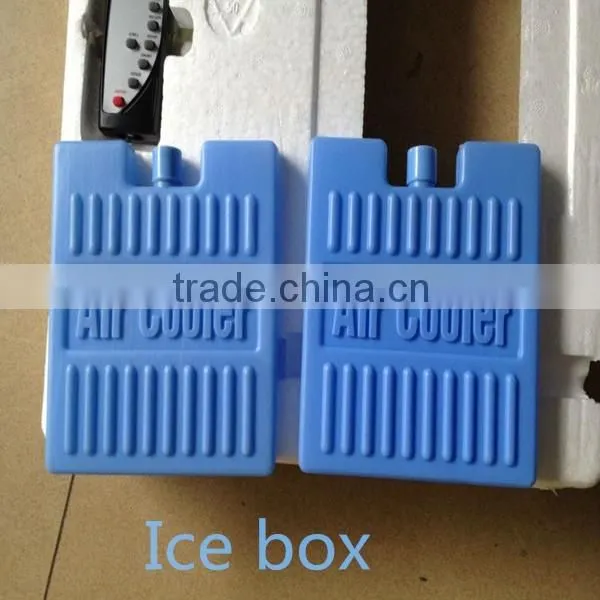

*Remote control,Two ice boxes

Max air volume

>800M³/H

*Energy saving and effective

Net weight

8.3KG

*0.5 to 8 hours timer control

Gross weight

9.3 KG

*3 fan speeds:high-medium-low

Noise level

< 55dB

*8L large water tank for cooler air output

Product size

365*300*690mm

Carton size

400*343*750 mm

Qty of 20’/40’/40HQ

276/570/680pcs

ACS-08 Function instruction:

1. Cool:It will blow out the fresh and cool wind for you.the air temperature can be lower 3-5 degree.Especially in the dry heat area..The effect would be more obvious while using the cooler.

2. Warm:It will blow out the warm or heat wind for you,it get 2 speed of high and lower heat for your selection.

3. Humidity:In a dry area or in a dry season,the effect would be more obvious while using the air cooler.It can keep the room in a fit humidity.

4. Wind way:Auto blow,swing from left to right(120).Also it can be changed the wind way up or down by hand.

5. Speed:Not only there are 3 kinds of wind velocity(high,medium,low),but also a nature breeze can be selected.

6.Timer:We can set the cooler to stop after 8 hours at most.

7. Moving:The cooler can be moved to somewhere expediently because of the casters.

8. Air purifier:At entryway,there is a filter so it can absorb scrap garbage in the air such as dust, fiber,hair etc.

9. Anion:The cooler has an anion generator(anion creator),it can release anion into the air to make people fell more comfortable.

10. Operation:Operate the cooler easily by the humanistic design and the micro-computer control.Opening the cooler just a light touch on the button or using a remote control within 5 meters.By the way,it is clear at a glance to find the water level in the box because of the red ball in front of the cooler.
