J21 Series Punching Press Machine

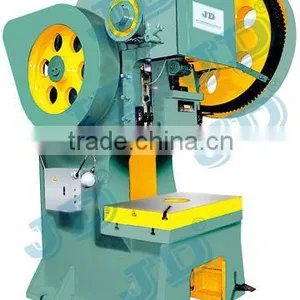

J21 Series Punching Press Machine thumbnail-1

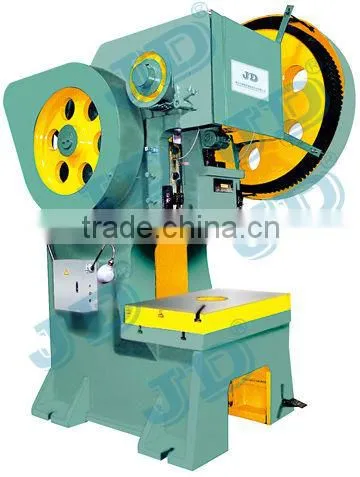

J21 Series Punching Press Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Contact Supplier Request Quote Chat Now
Foshan Shunde Jingduan Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shunde guangzhou shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Power Source Mechanical
Place of Origin Guangdong, China
Brand Name JD
Model Number J21-160
Voltage 220V,380V,440V
Power(W) 15kw
Weight 16500kgs
Dimension(L*W*H) 2600x2000x3600mm
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year

Specifications

J21 series punching press machine
J21 series is an universal one for sheet prossing,
suitable for piercing, blanking, cutting

J21 series punching press machine



J21 Series Open-type Press with Fixed Bed



Main properties of products:

The press of this series is an universal one for sheet prossing, generally suitable for piercing, blanking, cutting, bending, shallow-drawing, forming and other procedures.



JA23,J21 parameter list
Technical Parameter Model JA23-12 JA23-16 JA23-25 JA23-30 JA23-40 JA23/JA21-63 J21/23-80 J21/23-100 J21-125 J21-160 J21-200 J21-250 J21-315
Nominal capacity KN 120 160 250 300 400 630 800 1000 1250 1600 2000 2500 3150
Length of stroke mm 50 56 60 70 90 120 120 140 140 140 150 150 150
Strokes times/min 150 138 120 120 65 50 45 40 40 40 40 40 35
Max mold height min 150 180 200 200 230 260 360 300 390 370 400 400 530
Slide adjustment  degree 30 30 35 45 50 50 80 100 100 100 100 100 100
Max inclination ofmain frame mm 20 220 20 20 20 20 J21   J21   J21   - - - -
J23 20 J23 20 J23 20
Bolster area
 		 Fb mm 220 260 310 350 420 510 590 720 720 750 770 770 780
Lr mm 370 390 490 550 670 780 920 1080 1080 1200 1250 1250 1400
punch table mm 110 130x150 130x160 145x160 200x200 250x270 400x400 420x520 420x520 500x460 470x500 470x500 400
subpane size punch table mm - - - - - - 220 250 250 250 250 250 300
THK mm - - - - - - 90 110 110 120 140 140 150
Slide Surface Fb mm 100 130 140 140 176 220 335 360 360 360 410 410 410
Lr mm 112 140 150 170 210 270 400 480 480 480 500 500 500
Shank hole Dia mm 30 30 40 40 42 50 60 60 60 60 60 60 60
Deep mm 45 50 50 50 70 70 70 80 80 80 90 90 90
Depht of throat mm 120 120 160 165 210 250 310 380 380 390 400 400 410
Distance of both pole mm 160 185 180 200 250 300 340 500 460 590 450 450 630
Overall dimensions Lr mm 900 1000 1200 1250 1500 1700 1900 2500 2500 2600 2700 2700 2700
Fb mm 680 730 800 900 1100 1300 1400 1800 1800 2000 2100 2100 2200
H mm 1500 1650 1800 2000 2300 2500 3000 3400 3500 3600 3700 3700 3800
Motor Power KW 1.1 1.1 2.2 2.2 4 5.5 7.5 11 11 15 15 15 18.5
rpm r/min 1440 910 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440 1440
winght kg 500 700 1000 1500 2500 4500 7000 10500 12000 16500 18000 19000 20000





J21 series punching press machine
