spray chrome metal plating system machine
Hello, Thanks for coming in our products.
We would like to talk what you demand freely with sharing good information.
Coating using Sputtering is one of the most flexible methods to physically "PVD" (Physical Vapour Deposition).
The coating material is inserted into the vacuum chamber as a cathode under the form of a metal plate. After the chamber has been emptied, the process gas is introduced (argon is usually used as it has a high atomic weight).
A high voltage is applied and the gas is introduced.
The positive argon ions go through an acceleration process on the negative cathode and then expel the atoms of the metal plate (evaporating material), which then fall onto the substrates already in the chamber and condense them.
The impact of the atoms on the evaporating material produces “Sputtering”, as a result of the acceleration given by the succeeded particle.
Unlike many other vacuum deposition techniques, there is no fusion of material, therefore all the metals and alloys can be deposited with high efficiency and high control.
If a reactive gas such as nitrogen or acetylene is introduced into the chamber together with the process gas, the nitride which reacts to the carbide, develops on the substrates.
Different cathodes made of different materials can be inserted in a vacuum coating system to produce multiple layer systems.
It is also possible to modify the combination of the single layers by varying the combination of the reactive gases.
----------------------------------------------------------------------------------------------------------------------------------------
Customer Benefits:
* Excellent layer properties
* Increses productivity due to shorter batch times
* Reliable hardware and safer process guarantee
* Highest yield
* Low production cost
* Easy machine operation due to touch screen utilization
----------------------------------------------------------------------------------------------------------------------------------------

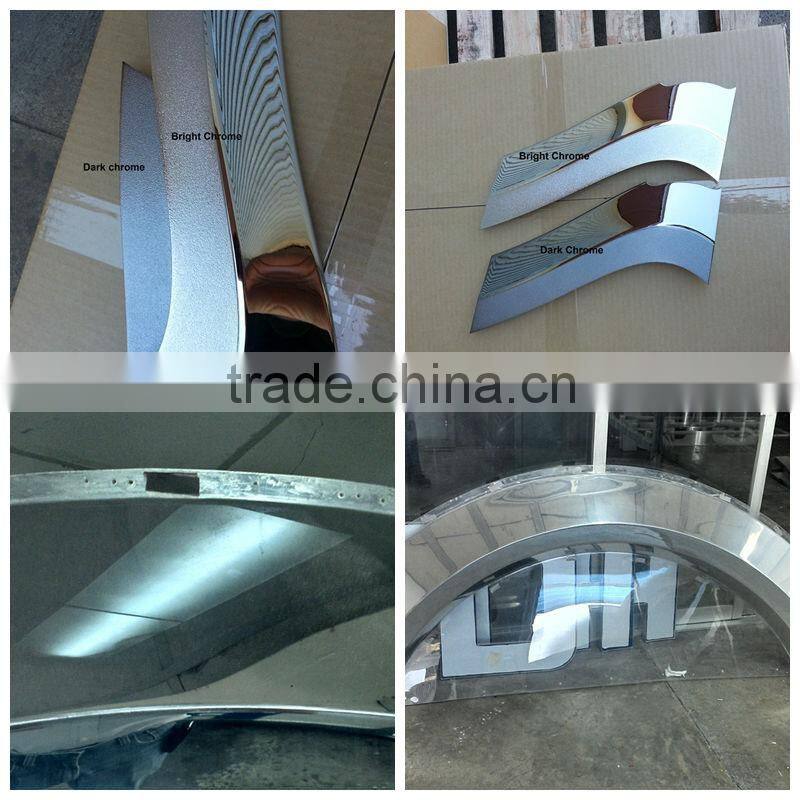

Let's see some samples of PVD coating:
Export Standard Packing:
Installation&Operation Training:

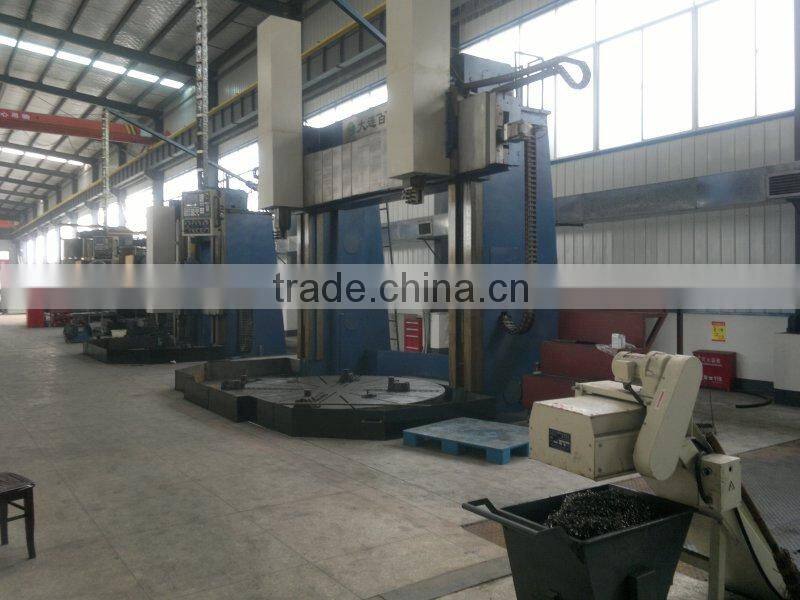

Processing Center:
----------------------------------------------------------------------------------------------------------------------------------------
Advantages of this machine(vacuum PVD coater):
1) Simple visual interface for the operator, process control system runs on Windows system interface and easy to use
2) Vacuum pump system efficiency, which increases productivity due to shorter batch times
3) High performance layer monitoring system is equipped for enhanced production result
4) Automated work cycle, which requires less workers per shift and training time, low production cost
5) Repeatable and reliable coating
6) Safter and Environmentally-friendly process guarantee
7) Highest yield
Coating properties:
• Excellent layer properties
• Longer lifetime
• Smooth surface
• Many bright, metallic colours, decorative or functional
• Excellent scratch protection
- Our engineers are ready to provide custom made design and recommendation for each customer's case.
- We provide professional consulting service for PVD coaters and lines.
- We also have set up good relations with the suppliers of relative consumables and parts for your needs.
- We will send the engineers to your place for installation, fine tune and for operation training.
- We will provide troubleshooting service all lifetime.
- The warranty period of the machine is 1 year.
- We will contact you to ask for about the conditions of the machine in periodically.
- We also provide the service for further extension on your existing machine.
Question 1: Are you manufacturer?
Answer: Yes, we are. Welcome to visit our factory!
Question 2: What is price of the machine?
Answer:
The machine is custom made. If you have any drawing or any information on specification of the machine, please send to us for quote.
If you are totally new in this area, please tell us the max. dimension of your products, its application, and your desired capacity.
We will provide our professional suggestions and work out an appropriate design for your project.
Question 3: What do I have to do for my products before processing by the vacuum coater?
Answer: In vacuum area, the products(we call it"substrate") have to be CLEAN, DRY AND SMOOTH. So we will need washer and dryer, sometimes base varnish, and topcoat to protect the coatings.
Question 4: Do I have to pay the costs for pollution?
Answer: The machine is environment-friendly, there is no liquid chemical waste and harmful gas. This is a kind of green technology.
Dear Customer: :-)
Good day.
When you are going to send us a inquiry, in order to design the most appropriate machine for your project, please answer the following questions in your letter:
1. What is your product, its material and application
2. What is the possible max. dimension of your product
3. What is your desired productivity per 8 hours/shift.
The answers to the above question will help us a lot on designing or do the recommendation.
Please send the inquiry at the bottom of this page.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Thanks for your kind attention.
