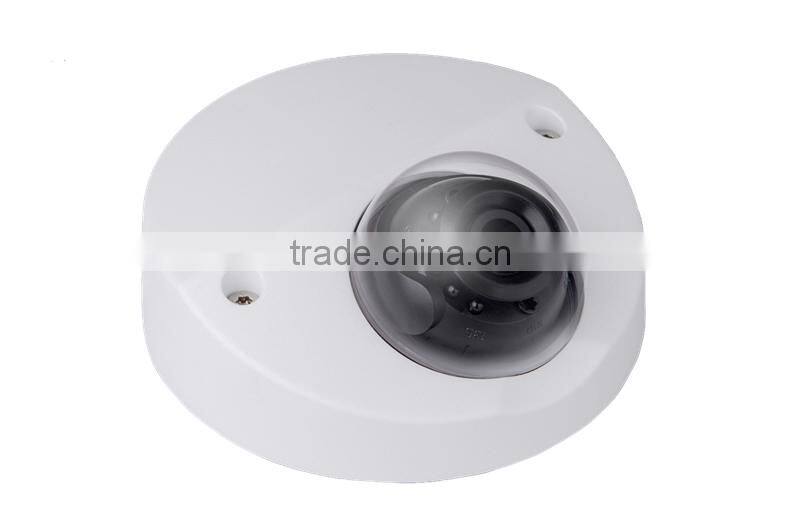

Help CenterWeather-proof 2MP Full HD IR Wedge Dome Wireless IP Camera With Smart Detection
Related Products
-
1 Megapixel Vandal-proof HD DWDR Mini Dome Wireless IPC With 30m IRUS$ 53 - 63MOQ: 5 Pieces -
1.3MP HD IR Water and Vandal-proof Built-in Mic Mini Dome Network IP CameraUS$ 56 - 63MOQ: 3 Pieces
-
Professional 2MP HD Motorized VF Lens Support Smart Detection Network Dome IPC for People CountingUS$ 688 - 825MOQ: 1 Piece
-
2 Megapixel Full HD1080p Video Auto Back Focus Ultra-low Light Smart IPC CameraUS$ 693 - 831MOQ: 1 Piece
-
3 Megapixel IR Vandal-proof WDR 360 View Angle Built-in Micro Network Fisheye CCTV CameraUS$ 329 - 395MOQ: 1 Piece
> 1/2.7” 2Megapixel progressive scan CMOS
> Support H.264&MJPEG dual codec
> 25/30fps@1080P(1920×1080)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC,
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Built-in Mic
> Max. IR LEDs Length 20m
> Micro SD memory, IP66
> Wi-Fi support
Model |
IPC-VI4520FWD-WIA | |
Camera | ||
Image Sensor |
1/2.7” 2Megapixel progressive scan CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3(4)~1/100000s |
|
Min. Illumination |
0.01lux/F2.0(color),0lux/F2.0 (IR on) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
N/A |
|
Camera Features | ||
Max. IR LEDs Length |
20m |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC / HLC /WDR(120dB) |
|
White Balance |
Auto/Sunny/Night/Outdoor/Customized |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens | ||
Focal Length |
3.6mm (2.8mm,6mm optional) |
|
Max Aperture |
F2.0(F2.0,F2.0) |
|
Focus Control |
Manual |
|
Angle of View |
H:93°(120°/63°) |
|
Lens Type |
Fixed lens |
|
Mount Type |
Board-in Type |
|
Video | ||
Compression |
H.264/H.264B/H.264H/ MJPEG |
|
Resolution |
1080P(1920x1080)/1.3M(1280x960)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1080P/720P(1 ~ 25/30fps) |
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Third Stream |
720P(1-13/4fps) |
|
Bit Rate |
H.264: 32K ~ 10Mbps |
|
Corridor mode |
Support |
|
Audio | ||
Compression |
G.711a/ G.711u/ AAC |
|
Interface |
Built-in Mic |
|
Smart Function | ||
|
Smart detection
|
Tripwire |
|
Intrusion | ||
Abandoned/Missing | ||
Scene Change | ||
Audio detect | ||
Face detect | ||
Network | ||
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
Wi-Fi(IEEE802.11b/g/n) |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
ONVIF |
ONVIF,PSIA,CGI |
|
Max. User Access |
20users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface | ||
Memory Slot |
Micro SD Max 128GB |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
PIR Sensor Range |
N/A |
|
General | ||
Power Supply |
DC12V |
|
Power Consumption |
<5W |
|
Working Environment |
-30°C~+60°C, Less than 95% RH |
|
Ingress Protection |
IP66 |
|
Vandal Resistance |
N/A |
|

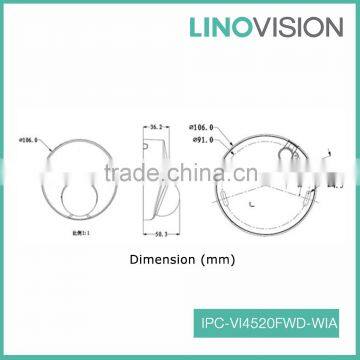

Dimensions |
Φ106mm×50.3mm |
|
Weight |
0.35kg |
|
