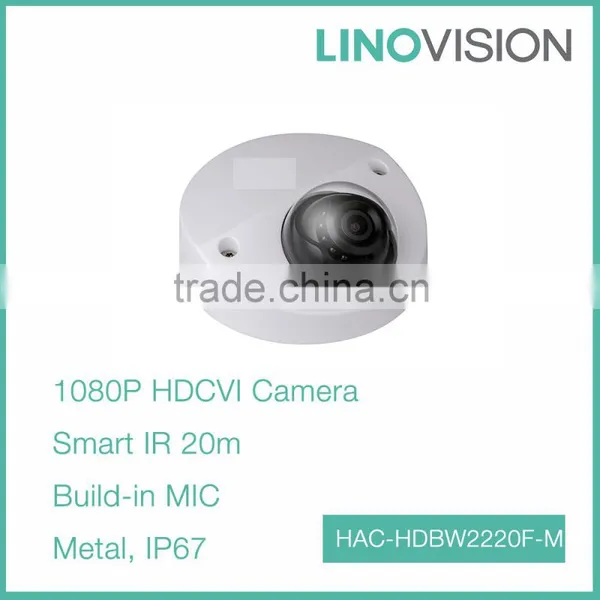

Help CenterWater & Vandal Proof 2.4MP Bulid-in Mic 1080P Mobile HDCVI Camera With 20m IR
Related Products
-
Vandal-proof IP67 1.3MP 720P Bulid-in Mic IR HDCVI Mobile CameraUS$ 43 - 48MOQ: 20 Pieces -
Water-proof 2.4MP Vari-focal 1080P Dome HDCVI Camera With 30m IR LEDUS$ 50 - 56MOQ: 20 Pieces
-
Water-proof 1.3MP Vari-focal Lens 720P Dome HDCVI Camera With 30m Smart IRUS$ 45 - 50MOQ: 20 Pieces
-
Water-proof 2.4MP 1080P DWDR Dome HDCVI Camera With 50m Smart IRUS$ 36 - 41MOQ: 30 Pieces
-
High Speed 1.3MP 720P 50m Smart IR Mini Dome HDCVI Camera, Support OSD MenuUS$ 32 - 36MOQ: 30 Pieces
> 1/2.8" 2.4Megapixel CMOS
> 25/30@1080P, 25/30/50/60fps@720P
> High speed, long distance real-time transmission
> HD video output & Tester out
> OSD Menu, control over coaxial cable, Build-in MIC
> Day/Night(ICR), AWB, AGC, BLC, 3DNR
> 3.6mm fixed lens (2.8mm, 6mm optional)
> Max. IR LEDs length 20m, Smart IR
> Aviation connector, Shock-proof
> IP67, IK10, DC12V
Model |
HAC-HDBW2220FP-M |
HAC-HDBW2220FN-M |
Camera | ||
Image Sensor |
1/2.8” 2.4Megapixel CMOS |
|
Effective Pixels |
1984(H)×1225(V) |
|
Electronic Shutter |
1/3s~1/100,000s | |
Video Frame Rate |
25fps@1080P, 25/50fps@720P | 30fps@1080P, 30/60fps@720P |
Synchronization |
Internal |
|
Mini. Illumination |
0.05Lux/F1.8, 0Lux IR on |
|
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
Camera Features | ||
Max. IR LEDs Length |
20m, Smart IR |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Noise Reduction |
2D/3D |
|
OSD Menu |
Support |
|
Lens | ||
Focal Length |
3.6mm (2.8mm, 6mm optional) |
|
Angle of View |
H: 88º(106º/55º) |
|
Mount Type |
M12 |
|
General | ||
Power Supply |
DC12V±20% |
|
Power Consumption |
Max 3.3W |
|
Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 800m via 75-3 coaxial cable |
|
Ingress Protection |
IP67 & IK10 |
|

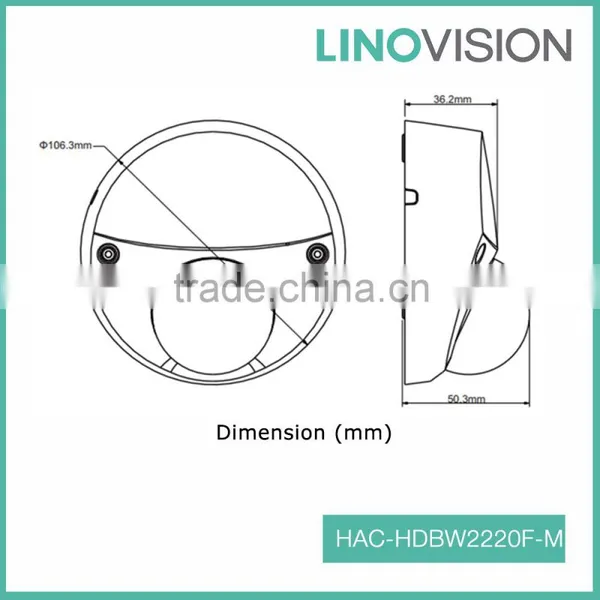

Dimensions(W×D×H) |
Φ106mm×50.3mm |
|
Weight |
0.3kg |
|
Material |
Metal |
|
Others |
Build-in MIC |
|
Headquartered in Hangzhou (China), and sales & support office in Dallas (United States), Linovision is committed to be a leading integrated surveillance solutions provider. From 2007,Linovision started developing PC based DVR/NVR software for Hikvision & Dahua DVR cards, then their IPcameras, and become software partner of leading manufacturers.
We are proud of supplying a complete line of professional IP video surveillance products in affordable price, by working closely with top level manufacturers in China. And with continuous investment in the latest technologies, we can also provide comprehensive system integration service.
Moreover, we are also developing cloud based video management solution for the next generation of video surveillance system.
Our Mission: To be a global leading integrated video surveillance solutions provider.
Our Advantage
- Consulting and Systems designing
- Product qualification and recommendation
- Project Integration service
- End to End & One stop sourcing
- Help to make website and marketing material
- OEM hardware/software design for specific needs
- Life cycle support
- Regularly training and knowledge updates
Our Milestone
| Year | Exhibition Name | Address | Year | Exhibition Name | Address |
| 2011 | Public Security Exhibition | Shenzhen, China | 2012 | ISC WEST 2012 Exhibition | Las Vegas, USA |
| 2013 | ISC WEST 2013 Exhibition | Las Vegas, USA | 2013 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | ISC WEST 2014 Exhibition | Las Vegas, USA | 2014 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | Security Essen Exhibition | Essen, Germany | 2015 | ISC WEST 2015 Exhibition | Las Vegas, USA |
| 2015 | EXPOSEC Exhibition | Sao Paolo, Brazil | 2016 | ISC WEST 2016 Exhibition | Las Vegas, USA |
Q. May I print our company logo on camera and NVR?
A: Of course, buyer logo is welcome in our company.
We have one production line for printing buyer logo.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products.
Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.
Q.What is Minimum Order Quantity?
A: Sample order is welcome, but the price is depend on the quantity.
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc. For big order, we also have cooperated forwarders.
