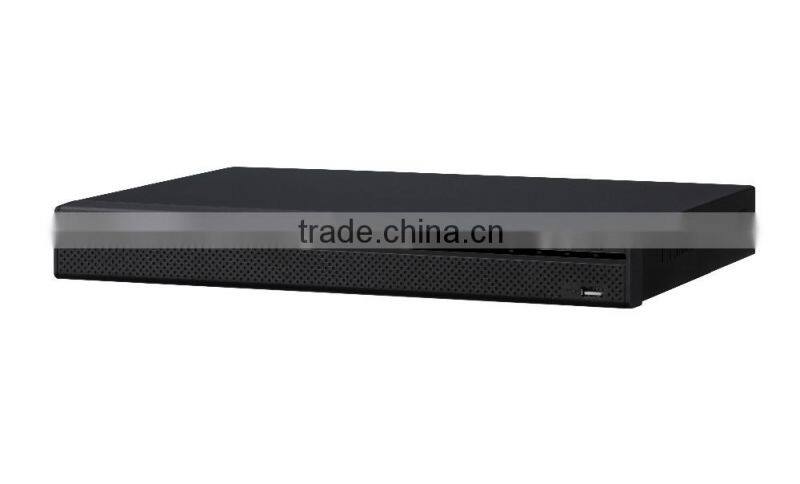

Help CenterCost-effective 4CH 1U Anolog& HD-CVI 720P-Lite 2HDD CCTV DVR , Support HDCVI/Analog/IP
Related Products
-
Compact 16CH 1U ONVIF 720P-Lite H.264+ HDCVI DVR , Support HDCVI/Analog/IPUS$ 88 - 98MOQ: 5 Pieces -
Professional HD 1080P 4CH Smart 1U 4 PoE Ports NVR With 56Mbps Incoming Bandwidth, Support P2PUS$ 65 - 72MOQ: 3 Pieces
-
Professional 5MP 16CH 1HDD Mini Network Video Recorder With 80Mbps Incoming Bandwidth, Support P2PUS$ 84 - 93MOQ: 3 Pieces
-
Compact 8CH 1U ONVIF Tribird 720P-Lite HDCVI DVR , Support 3D Intelligent PositioningUS$ 54 - 60MOQ: 30 Pieces
-
Vandal-proof 2.4MP 1080P Motorized Dome HDCVI Camera With 30m Smart IRUS$ 61 - 68MOQ: 20 Pieces
> Support HDCVI/Analog/IP Video input
> H.264+/H.264 dual-stream video compression
> HCVR4204A-S3: All channel 1080N/720P recording
> HDMI/VGA simultaneous video output
> 4 channel synchronous playback, GRID interface & smart search
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus,
Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
> ONVIF Version 2.4.1 conformance
> Support 2 SATA HDDs up to 12TB, 2 USB2.0
> 3D intelligent positioning with Dahua PTZ dome camera
> Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
Model |
HCVR4204A-S3 |
||||
System | |||||
Main Processor |
Embedded processor |
||||
Operating System |
Embedded LINUX |
||||
Video | |||||
Input |
4 channel, BNC |
||||
Standard |
Analog |
NTSC/PAL |
|||
HDCVI |
1080P/720P HDCVI Camera |
||||
IP |
4+1 up to 2Mp |
||||
Audio | |||||
Input |
4 channel, RCA |
||||
Output |
1 channel, RCA |
||||
Two-way Talk |
Reuse audio input/output channel 1 |
||||
Display | |||||
Interface |
1 HDMI, 1 VGA |
||||
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
||||
Display Split |
1/4/6 |
||||
Privacy Masking |
4 rectangular zones (each camera) |
||||
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
||||
Recording | |||||
Video/Audio Compression |
H.264 / G.711 |
||||
Resolution |
1080N(960*1080)/720P(1280×720)/960H(960×576/960×480)/ D1(704×576/704×480)/HD1(352×576/352×480)/BCIF(704×288/704×240) CIF(352×288/352×240) / QCIF(176×144/176×120) |
||||
|
Record Rate |
Main Stream |
1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps) |
|||
Extra Stream |
CIF/QCIF(1~15fps) |
||||
Bit Rate |
1~4096Kb/s |
||||
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
||||
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
||||
Video Detection & Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | ||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||
| Alarm Input | 8 channel | ||||
| Relay Output | 3 channel | ||||
Playback & Backup | |||||
Sync Playback |
1/4 |
||||
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
||||
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
||||
Backup Mode |
USB Device/Internal SATA burner/Network |
||||
Network | |||||
Ethernet |
RJ-45 port (10/100M) |
||||
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
||||
Max. User Access |
128 users |
||||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
||||
Storage | |||||
Internal HDD |
2 SATA port, up to 12TB |
||||
Auxiliary Interface | |||||
USB Interface |
2 ports (1 Rear), USB2.0 |
||||
RS485 |
1port, For PTZ control |
||||
General | |||||
Power Supply |
DC12V/4A |
||||
Power Consumption |
15W(without HDD) |
||||
Working Environment |
-10 ~+55°C / 10~90%RH / 86~106kpa |
||||
Dimension(W×D×H) |
1U, 375mm×285mm×55mm |
||||
Weight |
2.35KG(without HDD) |
||||
Headquartered in Hangzhou (China), and sales & support office in Dallas (United States), Linovision is committed to be a leading integrated surveillance solutions provider. From 2007,Linovision started developing PC based DVR/NVR software for Hikvision & Dahua DVR cards, then their IPcameras, and become software partner of leading manufacturers.
We are proud of supplying a complete line of professional IP video surveillance products in affordable price, by working closely with top level manufacturers in China. And with continuous investment in the latest technologies, we can also provide comprehensive system integration service.
Moreover, we are also developing cloud based video management solution for the next generation of video surveillance system.
Our Mission: To be a global leading integrated video surveillance solutions provider.
Our Advantage
- Consulting and Systems designing
- Product qualification and recommendation
- Project Integration service
- End to End & One stop sourcing
- Help to make website and marketing material
- OEM hardware/software design for specific needs
- Life cycle support
- Regularly training and knowledge updates
Our Milestone
| Year | Exhibition Name | Address | Year | Exhibition Name | Address |
| 2011 | Public Security Exhibition | Shenzhen, China | 2012 | ISC WEST 2012 Exhibition | Las Vegas, USA |
| 2013 | ISC WEST 2013 Exhibition | Las Vegas, USA | 2013 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | ISC WEST 2014 Exhibition | Las Vegas, USA | 2014 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | Security Essen Exhibition | Essen, Germany | 2015 | ISC WEST 2015 Exhibition | Las Vegas, USA |
| 2015 | EXPOSEC Exhibition | Sao Paolo, Brazil | 2016 | ISC WEST 2016 Exhibition | Las Vegas, USA |
Q. May I print our company logo on camera and NVR?
A: Of course, buyer logo is welcome in our company.
We have one production line for printing buyer logo.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products.
Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.
Q.What is Minimum Order Quantity?
A: Sample order is welcome, but the price is depend on the quantity.
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc. For big order, we also have cooperated forwarders.
