Help CenterProfessional 4K 32CH 2U 1080P H.265/H.264 Decoding RAID PoE NVR, Support P2P
Related Products
-
Professional 16CH 2U 8HDD ONVIF H.264 Anolog& HDCVI DVR , Support HDCVI/Analog/IPUS$ 304 - 338MOQ: 1 Piece -
Professional 8CH 2U Tribrid 720P-Lite ONVIF HDCVI DVR , Support HDCVI/Analog/IPUS$ 230 - 255MOQ: 1 Piece
-
Professional 4CH 2U 8HDD 720P-Lite Anolog& HDCVI DVR , Support HDCVI/Analog/IPUS$ 203 - 225MOQ: 1 Piece
-
Hot Sale 16CH 1U 2HDD 720P-Lite Anolog& HDCVI DVR , Support HDCVI/Analog/IPUS$ 132 - 147MOQ: 3 Pieces
-
China 8CH 1U 2HDD ONVIF Tribrid 720P-Lite HDCVI DVR , Support HDCVI/Analog/IPUS$ 105 - 117MOQ: 3 Pieces

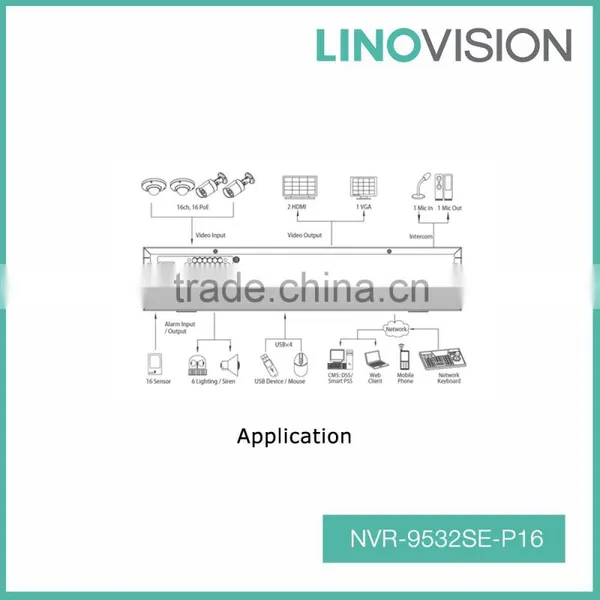

>Up to 32 channel IPC input
>H.265/H.264/MJPEG/MPEG4 codec decoding
>Max 320Mbps incoming bandwidth
>Up to 12Mp resolution preview&playback
>Max 16ch@1080P H.265/H.264 decoding
>2HDMI/VGA simultaneous video output
>8 channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 8 SATA HDDs up to 48TB, 4 USB(2 USB3.0, 2USB2.0)
>Support RAID 0/1/5/6/10
>Support IPC UPnP,16PoE ports
>Multiple network monitoring: Web, CMS(DSS/Smart PSS) & Mobile phone (DMSS)
Model |
NVR-9532SE-P16 |
|||
System | ||||
Main Processor |
Quad-core embedded processor |
|||
Operating System |
Embedded LINUX |
|||
Video& Audio | ||||
IP Camera Input |
32 channel |
|||
Two-way Talk |
1 channel Input, 1 channel Output, RCA |
|||
Display | ||||
Interface |
2 HDMI (1 HDMI up to 3840x2160), 1 VGA |
|||
Resolution |
3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
|||
Display Split |
1/4/8/9/16/25/36 |
|||
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|||
Recording | ||||
Compression |
H.265/H.264/MJPEG/MPEG4 |
|||
Resolution |
12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. |
|||
Record Bit Rate |
320Mbps |
|||
Bit Rate |
16kbps~ 20Mbps per channel |
|||
Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|||
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|||
Video Detection & Alarm | ||||
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips |
|||
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|||
Alarm Input |
16 channel |
|||
Relay Output |
6 channel |
|||
Playback & Backup | ||||
Sync Playback |
1/4/9/16 |
|||
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
|||
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|||
Backup Mode |
USB Device/Network/Internal SATA burner/eSATA Device |
|||
Network | ||||
Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
|||
PoE |
16 ports (IEEE802.3af/at) |
|||
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
|||
Max. User Access |
128 users |
|||
Smart Phone |
iPhone, iPad, Android |
|||
Storage | ||||
Internal HDD |
8 SATA ports, up to 48TB |
|||
HDD Mode |
Raid 0/1/5/6/10 |
|||
External HDD |
1 eSATA port |
|||
Auxiliary Interface | ||||
USB |
4 ports (2 Rear USB3.0, 2 Front USB2.0) |
|||
RS232 |
1 port, For PC communication & Keyboard |
|||
General | ||||
Power Supply |
Single, AC 100~240V, 50/60 Hz |
|||
Power Consumption |
NVR: 16.7W for non-PoE model(without HDD) |
|||
Working Environment |
-10°C~+55°C / 10%~90%RH / 86~106kpa |
|||
Dimension |
2U, 440mm×454mm×95mm |
|||
Weight |
6.55KG for non-PoE model(without HDD) |
|||
Headquartered in Hangzhou (China), and sales & support office in Dallas (United States), Linovision is committed to be a leading integrated surveillance solutions provider. From 2007,Linovision started developing PC based DVR/NVR software for Hikvision & Dahua DVR cards, then their IPcameras, and become software partner of leading manufacturers.
We are proud of supplying a complete line of professional IP video surveillance products in affordable price, by working closely with top level manufacturers in China. And with continuous investment in the latest technologies, we can also provide comprehensive system integration service.
Moreover, we are also developing cloud based video management solution for the next generation of video surveillance system.
Our Mission: To be a global leading integrated video surveillance solutions provider.
Our Advantage
- Consulting and Systems designing
- Product qualification and recommendation
- Project Integration service
- End to End & One stop sourcing
- Help to make website and marketing material
- OEM hardware/software design for specific needs
- Life cycle support
- Regularly training and knowledge updates
Our Milestone
| Year | Exhibition Name | Address | Year | Exhibition Name | Address |
| 2011 | Public Security Exhibition | Shenzhen, China | 2012 | ISC WEST 2012 Exhibition | Las Vegas, USA |
| 2013 | ISC WEST 2013 Exhibition | Las Vegas, USA | 2013 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | ISC WEST 2014 Exhibition | Las Vegas, USA | 2014 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | Security Essen Exhibition | Essen, Germany | 2015 | ISC WEST 2015 Exhibition | Las Vegas, USA |
| 2015 | EXPOSEC Exhibition | Sao Paolo, Brazil | 2016 | ISC WEST 2016 Exhibition | Las Vegas, USA |
Q. May I print our company logo on camera and NVR?
A: Of course, buyer logo is welcome in our company.
We have one production line for printing buyer logo.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products.
Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.
Q.What is Minimum Order Quantity?
A: Sample order is welcome, but the price is depend on the quantity.
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc. For big order, we also have cooperated forwarders.
