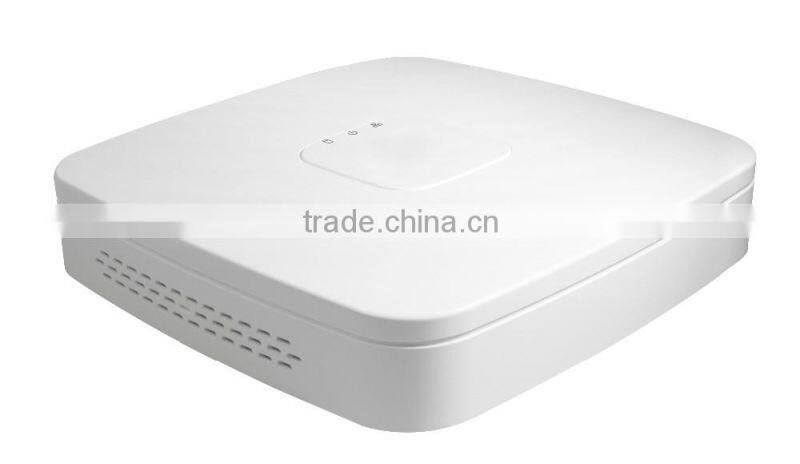

Help Center4 Channel Smart 1U 4PoE Lite Network Video Recorder
Related Products
-
Popular 16 Channel 1U H.265 4K Network Video Recorder With P2P FunctionUS$ 135 - 150MOQ: 3 Pieces -
Professional 4CH Smart 1U PoE NVR With 56Mbps Bandwidth, Support P2PUS$ 65 - 72MOQ: 3 Pieces
-
Professional 8CH Mini 1U PoE NVR With 80Mbps Bandwidth, Support P2PUS$ 101 - 113MOQ: 3 Pieces
-
Professional 16CH 1U H.265 4K NVR With 256Mbps Bandwidth , Support P2PUS$ 135 - 150MOQ: 3 Pieces
-
Professional 16CH Mini 1U NVR With 80Mbps Bandwidth, Support P2PUS$ 84 - 93MOQ: 3 Pieces
> H.264+/H.264 codec decoding
> Max 80Mbps incoming bandwidth
> Up to 6Mp resolution preview&playback
> HDMI/VGA simultaneous video output
> 3D intelligent positioning with Dahua PTZ camera
Model |
NVR-9204-P4 |
|||
System | ||||
Main Processor |
Dual-core embedded processor |
|||
Operating System |
Embedded LINUX |
|||
Video& Audio | ||||
IP Camera Input |
4 channel |
|||
Two-way Talk |
1 channel Input, 1 channel Output, RCA |
|||
Display | ||||
Interface |
1 HDMI, 1 VGA |
|||
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|||
Display Split |
1/4 |
|||
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|||
Recording | ||||
Compression |
H.264+/H.264 | |||
Resolution |
6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc. |
|||
Record Bit Rate |
80Mbps |
|||
Bit Rate |
16kbps~ 20Mbps per channel |
|||
Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|||
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|||
Video Detection & Alarm | ||||
Trigger Events |
Recording, PTZ, Tour, Video Push, Snapshot & Screen tips |
|||
Video Detection |
Motion Detection, MD Zones: 396(22×18), and Tampering |
|||
Alarm Input |
N/A |
|||
Relay Output |
N/A |
|||
Playback & Backup | ||||
Sync Playback |
1/4 |
|||
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
|||
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|||
Backup Mode |
USB Device/Network |
|||
Third-party Support | ||||
Third-party Support |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more |
|||
Network | ||||
Ethernet |
1 RJ-45 port (10/100Mbps) |
|||
Ethernet Port |
1 Independent 100Mbps Ethernet Port |
|||
PoE |
4 ports (IEEE802.3at/af) |
|||
Network Function |
HTTP, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip |
|||
Max. User Access |
128 users |
|||
Smart Phone |
iPhone, iPad, Android |
|||
Interoperability |
ONVIF 2.4, CGI Conformant |
|||
Storage | ||||
Internal HDD |
1 SATA III Port, up to 6TB capacity for each HDD |
|||
HDD Mode |
Single |
|||
External HDD |
N/A |
|||
Auxiliary Interface | ||||
USB |
2 ports (2 Rear USB2.0) |
|||
RS232 |
N/A |
|||
RS485 |
N/A |
|||
Electrical | ||||
Power Supply |
Single, DC48V/1.25A |
|||
Power Consumption |
<4W (without HDD) |
|||
| Environmental | ||||
Operating Conditions |
-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
|||
Storage Conditions |
- 20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
|||
Construction | ||||
|
Dimension (W×D×H) |
Smart 1U, 204.6mm×204.6mm×45.6mm |
|||
(8.1" x 8.1" x 1.8") | ||||
Net Weight |
0.45kg (0.99 lb) (without HDD) |
|||
Gross Weight |
1.5kg(3.31 lb)(without HDD) |
|||
Certifications | ||||
| CE | EN55032, EN55024, EN50130-4, EN60950-1 | |||
| FCC | Part 15 Subpart B, ANSI C63.4-2014 | |||
