Live Stream IP Network PTZ camera for Broadcasting
- 10000 Piece / Pieces per Month
- Shanghai
- Credit Card
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Linovision | Model Number: | LiveTracker 2 |
Type: | IP Camera | Style: | Dome Camera | Sensor: | CMOS |
Technology: | NetWork | Special Features: | Other, RTMP Streaming |
Product Description

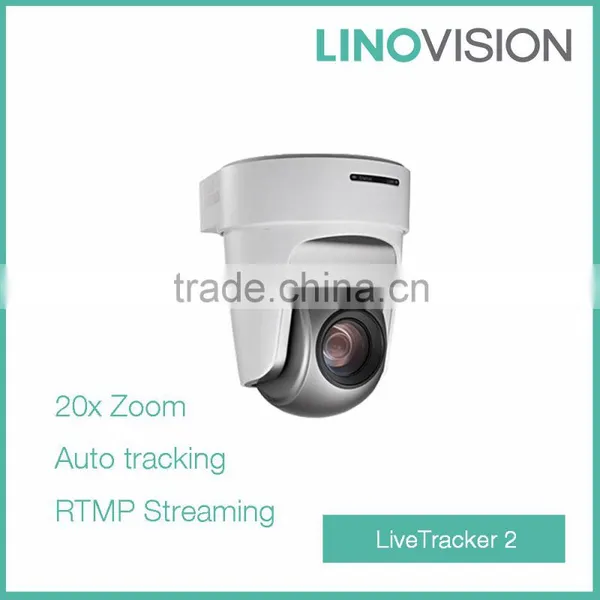

- HD 1080p video, auto tracking, 20x optical zoom
- Robotic PTZ control by remote controller or smart phone
- Special designed for live broadcasting system
- Cloud networking ready, no converter / media box required
- Output of SDI, HDMI, RTSP, RTMP
- 1/1 hannel In/Out audio, POE+
Model | LiveTracker 2 |
Camera | |
Image Sensor | 1/2.8" Progressive Scan CMOS |
Effective Pixels | 3.2 megapixels |
Electronic Shutter Speed | 1/1-1/30,000s (50Hz); 1/1-1/30,000s (60Hz) |
Min. Illumination | 0.5Lux/F1.6 (Color, AGC on); 0.1Lux/F1.6 (B&W, AGC on) |
S/N Ratio | More than 50dB |
Video Output | 3G/HD-SDI, DVI-I (YPbPr, HDMI) |
Day/Night | Auto(ICR)/Color/B/W |
Backlight Compensation | BLC / WDR |
White Balance | Auto / Manual |
Gain Control | Auto / Manual |
Noise Reduction | 3D |
Privacy Masking | Supported |
Functions | |
Auto Tracking | Supported |
Focal Length | 4.7mm~94mm, 20x optical zoom |
Digital Zoom | x16 |
Focus Control | Auto / Semi-auto / Manual |
Mirroring | Supported (gravity sensitive) |
Angle of View | H: 58.3°~3.2° |
Pan/Tilt Range | H: 360° endless; V: -30°~90° |
Manual Control Speed | H: 0.1°~150°/s; V: 0.1°~120°/s |
Preset Speed | H: 270°/s, V: 200°/s |
Preset | More than 128 |
Power loss recovery | Supported |
Park Action | Supported |
IR Control | Supported |
Network | |
Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Smart Phone | iPhone, iPad, Android, Windows Phone |
Integration | |
Audio | 1 in/1 out 3.5mm Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
Ethernet | RJ45, Wi-Fi |
SD Interface | Micro SD |
3G/HD-SDI | 720P@25fps/30fps/50fps/60fps,1080P@25fps/30fps/50fps/60fps, 1080I@50fps/60fps |
DVI-I | YPbPr; 720P@50fps/60fps,1080P@50fps/60fps, 1080I@50fps/60fps |
HDMI; 720P@50fps/60fps,1080P@50fps/60fps, 1080I@50fps/60fps | |
DB15 | RS485 (HIKVISION, Pelco-P, Pelco-D, self-adaptive); |
CVBS (CVBS SD Output 1.0V[p-p] / 75Ω, PAL or NTSC); | |
RS232 (Support VISCA, PELCO-P or PELCO-D); | |
2 Alarm in (0-5vDC), 1 alarm out | |
Client | iVMS-4200 |
Browser | IE7, IE8, IE9,Chrome8+,Firefox3.5+,Safari5+ |
General | |
Language | English, Chinese |
HD Output | HDMI: version1.3 or above; HD-SDI |
Power Supply | DC 12V, POE+(optional) |
Power Consumption | 24W max |
Working Environment | -10 °C-50°C (14 °F ~ 122°F), Humidity 90% or less |

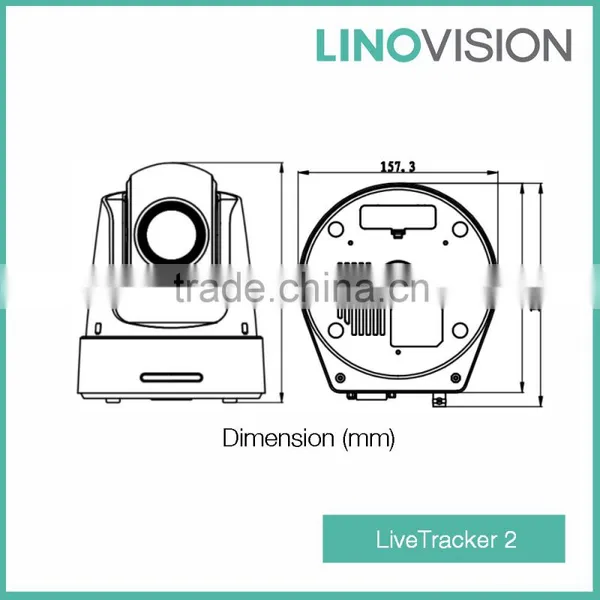

Dimensions | Φ176.6×202.7mm |
Weight | 1.8kg (3.97lb) |
PC Live Studio | Live Launcher APP | Live Stream Box |

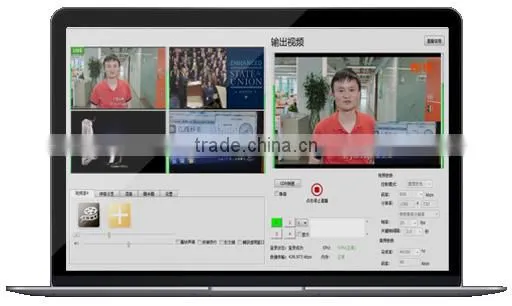

The live streaming camera, LiveTracker 2, comes from a whole package of a live streaming solution. You can use the camera only, or employ the complete solution so that you can manage live channels on PC via our PC Live Studio, or simply capture event on iPhone via our Live Launcher APP. After receiving live video streams, our cloud can trans-code, trans-size and trans-rate the video simultaneously. Viewers can watch live video on any devices, anytime and anywhere.
You can also stream the live video to any 3rd party platforms that you like, such as Youtube and Facebook.
Headquartered in Hangzhou (China), and sales & support office in Dallas (United States), Linovision is committed to be a leading integrated surveillance solutions provider. From 2007,Linovision started developing PC based DVR/NVR software for Hikvision & Dahua DVR cards, then their IPcameras, and become software partner of leading manufacturers.
We are proud of supplying a complete line of professional IP video surveillance products in affordable price, by working closely with top level manufacturers in China. And with continuous investment in the latest technologies, we can also provide comprehensive system integration service.
Moreover, we are also developing cloud based video management solution for the next generation of video surveillance system.
Our Mission: To be a global leading integrated video surveillance solutions provider!
Our Advantage
- Consulting and Systems designing
- Product qualification and recommendation
- Project Integration service
- End to End & One stop sourcing
- Help to make website and marketing material
- OEM hardware/software design for specific needs
- Life cycle support
- Regularly training and knowledge updates
- Our Milestone
Our Milestone
Year | Exhibition Name | Address | Year | Exhibition Name | Address |
2011 | Public Security Exhibition | Shenzhen, China | 2012 | ISC WEST 2012 Exhibition | Las Vegas, USA |
2013 | ISC WEST 2013 Exhibition | Las Vegas, USA | 2013 | EXPOSEC Exhibition | Sao Paolo, Brazil |
2014 | ISC WEST 2014 Exhibition | Las Vegas, USA | 2014 | EXPOSEC Exhibition | Sao Paolo, Brazil |
2014 | Security Essen Exhibition | Essen, Germany | 2015 | ISC WEST 2015 Exhibition | Las Vegas, USA |
2015 | EXPOSEC Exhibition | Sao Paolo, Brazil | 2016 | ISC WEST 2016 Exhibition | Las Vegas, USA |
