Help Center2 MP Full HD Network 30m IR Water-proof P2P Small Bullet Wireless IP Camera
Related Products
-
2MP Full HD Network Water-proof 100m IR Housing Surveillance 30x Zoom IP CameraUS$ 429 - 495MOQ: 5 Pieces -
2 Megapixel Full HD Water & Vandal-proof Network Mini CCTV Dome Pan IP CameraUS$ 129 - 172MOQ: 5 Pieces
-
2 MP Full HD WDR 120dB 4X Optical Zoom Network IR Speed Dome CameraUS$ 112 - 140MOQ: 5 Pieces
-
2MP Full HD Network 4X Optical Zoom Built-in Mic 30m IR Wifi Mini PTZ Dome CameraUS$ 152 - 190MOQ: 5 Pieces
-
5MP Bulit-in Mic Vandal-proof IP Network Fisheye CameraUS$ 135 - 180MOQ: 5 Pieces
> 1/2.7”2Megapixel progressive scan CMOS
> H.264 & MJPEG dual-stream encoding
> Max 25/30fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (6mm optional)
> Max. IR LEDs Length 30m
> Wi-Fi support
> IP66,DC12V
Model |
IPC-V3020-IW | |
Camera | ||
Image Sensor |
1/2.7”2Megapixel progressive scan CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual, 1/3(4)~1/100000s |
|
Min. Illumination |
Color: 0. 1Lux/F1.6; 0Lux/F1.6 (IR on) |
|
S/N Ratio |
More than 50dB |
|
Video Output |
N/A |
|
Camera Features | ||
Max. IR LEDs Length |
30m |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Backlight Compensation |
BLC /HLC /DWDR |
|
White Balance |
Auto/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D |
|
Privacy Masking |
Up to 4 areas |
|
Lens | ||
Focal Length |
3.6mm (6mm optional) |
|
Max Aperture |
F1.8(F1.6) |
|
Focus Control |
Manual |
|
Angle of View |
H: 72°(44°) |
|
Lens Type |
Fixed lens |
|
Mount Type |
Board-in Type |
|
Video | ||
Compression |
H.264/H.264B/H.264H/ MJPEG |
|
Resolution |
1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240) |
|
Frame Rate |
Main Stream |
1080P(1 ~ 25/30fps) |
Sub Stream |
D1/CIF(1 ~ 25/30fps) |
|
Bit Rate |
H.264H: 16K ~ 8192Kbps |
|
Audio | ||
Compression |
N/A |
|
Interface |
N/A |
|
Network | ||
Ethernet |
RJ-45 (10/100Base-T) |
|
Wi-Fi |
Wi-Fi(IEEE802.11b/g/n) |
|
Wi-Fi Range |
50m(open field) |
|
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
|
ONVIF |
ONVIF, CGI |
|
Max. User Access |
20users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Auxiliary Interface | ||
Memory Slot |
N/A |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
PIR Sensor Range |
N/A |
|
General | ||
Power Supply |
DC12V |
|
Power Consumption |
<7W |
|
Working Environment |
-30°C~+50°C, Less than 95%RH |
|
Ingress Protection |
IP66 |
|
Vandal Resistance |
N/A |
|

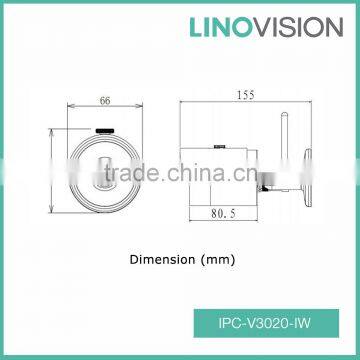

Dimensions |
Φ70mm×66mm×155mm |
|
Weight |
0.42Kg |
|
