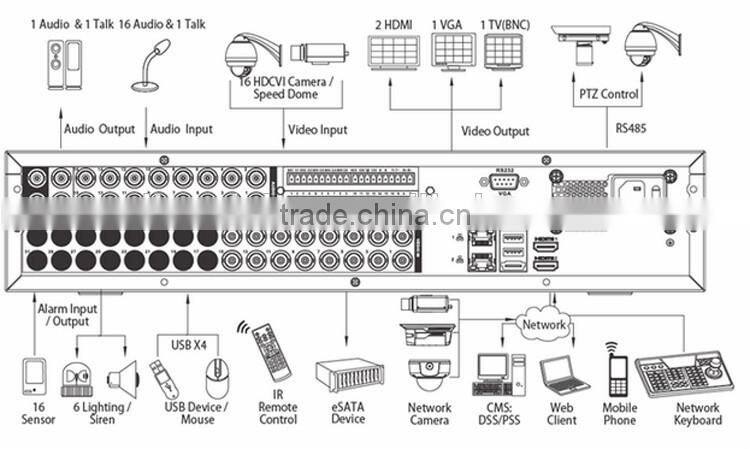

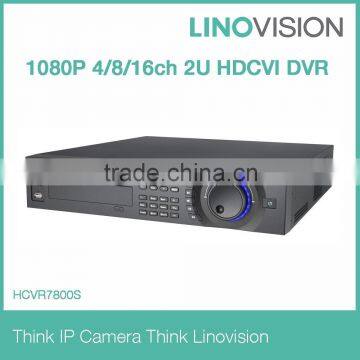

4/8/16 channel 2U 2MP HDCVI DVR max 8 HDD

Model

HCVR7804S

HCVR7808S

HCVR7816S

System

Main Processor

Embedded processor

Operating System

Embedded LINUX

Video

Input

4 channel

8 channel

16 channel

Video Standard

HDCVI

1080P/720P HDCVI Camera

Analog

NTSC(525Line, 60f/s), PAL(625Line, 50f/s),Effio 960H Camera

IP

1080P/720P/D1/CIF IP Camera

Audio

Input

4 channel, BNC

8 channel, BNC

16 channel, BNC

Output

1 channel, BNC

Two-way Talk

1 channel input,1channel output, BNC

Display

Interface

2 HDMI, 1 VGA, 1 TV

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Display Split

1/4

1/4/8/9

1/4/8/9/16

Privacy Masking

4 rectangular zones (each camera)

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Video/Audio Compression

H.264/G.711

Record Resolution

1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)

Record
Rate

Main stream

1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)

Extra stream

CIF/QCIF(1~25/30fps)

Bit Rate

48~8192Kb/s

Recording Mode

Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Recording Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

Trigger Events

Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips

Motion Detection

Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

Alarm Input

4 channel

8 channel

16 channel

Relay Output

6 channel

Playback & Backup

Sync Playback

1/4

1/4/8

1/4/8/16

Search Mode

Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device/eSATA Device/Internal SATA burner/Network

Network

Ethernet

2RJ-45 port (10/100M/1000M)

Network Functions

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Storage

Internal HDD

8 SATA ports, up to 32TB

External HDD

1 eSATA port, up to 16TB

Auxiliary Interface

USB

4 ports(2 Rear), USB2.0

RS232

1 port, For PC communication & Keyboard

RS485

1 port RS485 for PTZ control,1 port RS422 for Keyboard

General

Power Supply

AC 100~240 V, 50/60 Hz

Power Consumption

40W(without HDD)

Working Environment

-10°C~+55°C/10%~90%RH/86~106kpa

Dimension(W×D×H)

2U, 440mm×460mm×89mm

Weight

6.5KG(without HDD)
