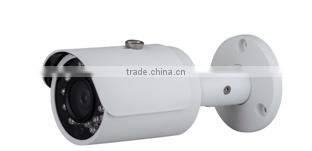

Help Center1.3Megapixel 720P Water-proof HDCVI 30m IR-Bullet Camera
Related Products
-
2Megapixel 1080P Vandal & Water Proof 30m IR HDCVI Dome CameraUS$ 38 - 42MOQ: 5 Pieces -
1Megapixel 720P Vandal & Water Proof 30m IR HDCVI Dome CameraUS$ 34 - 38MOQ: 5 Pieces
-
2Megapixel 1080P Water-proof 60m IR HDCVI Dome CameraUS$ 24 - 26MOQ: 10 Pieces
-
1Megapixel 720P Water-proof 60m IR HDCVI Dome CameraUS$ 20 - 22MOQ: 10 Pieces
-
1Megapixel 720P HDCVI 20m IR Mini Dome CameraUS$ 15 - 17MOQ: 10 Pieces
> 1/3" 1.3Megapixel CMOS
> 25/30/50/60fps@720P
> High speed, long distance real-time transmission
> HD and SD switchable
> OSD Menu, control over coaxial cable
> DWDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
> 3.6mm fixed lens (2.8 mm, 6mm, 8mm optional)
> Max. IR LEDs length 30m, Smart IR
> IP67, DC12V
Model |
HAC-HFW2120SP |
HAC-HFW2120SN |
Camera | ||
Image Sensor |
1/3” 1.3Megapixel CMOS |
|
Effective Pixels |
1305(H)×977(V) |
|
Electronic Shutter |
1/3s~1/100,000s | |
Video Frame Rate |
25/50fps@720P |
30/60fps@720P |
Synchronization |
Internal |
|
Mini. Illumination |
0.01Lux/F1.6, 0Lux IR on |
|
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
Camera Features | ||
Max. IR LEDs Length |
30m, Smart IR |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Noise Reduction |
2D/3D |
|
OSD Menu |
Support |
|
Lens | ||
Focal Length |
3.6mm fixed lens (2.8mm optional) |
|
Angle of View |
H: 72.3º(89º/46º/34.8º) |
|
Mount Type |
M12 |
|
General | ||
Power Supply |
DC12V±20% |
|
Power Consumption |
Max 4.7W |
|
Working Environment |
-30°C~+60°C / Less than 95%RH (no condensation) |
|
Transmission Distance |
Over 800m via 75-3 coaxial cable |
|
Ingress Protection |
IP67 |
|

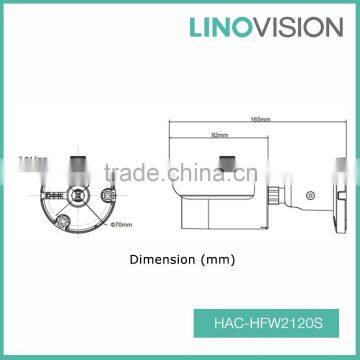

Dimensions(W×D×H) |
Φ70mm×165mm |
|
Weight |
0.35kg |
|
Material |
Metal |
|
