Specifications
10 Pairs High Bandwidth module for Krone type1.ABS & PBT material;
2.Superior high speed data and voice cross connect modul

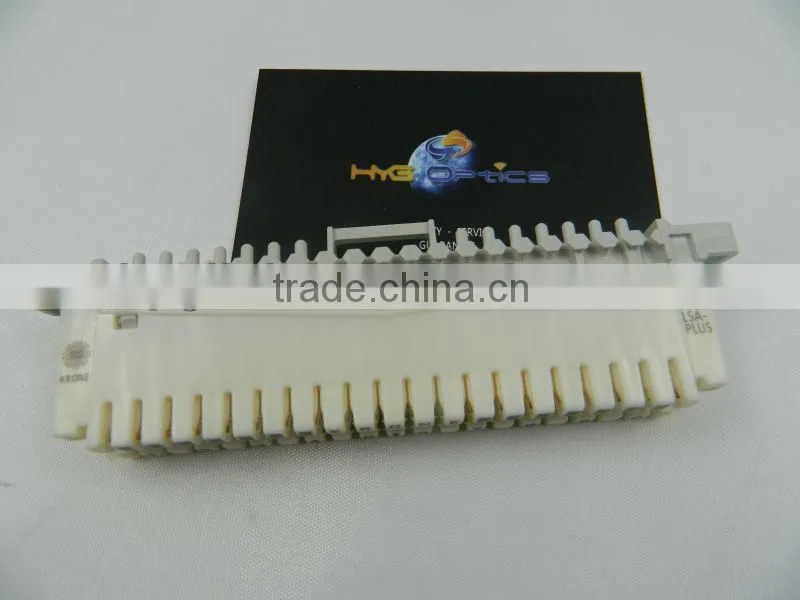

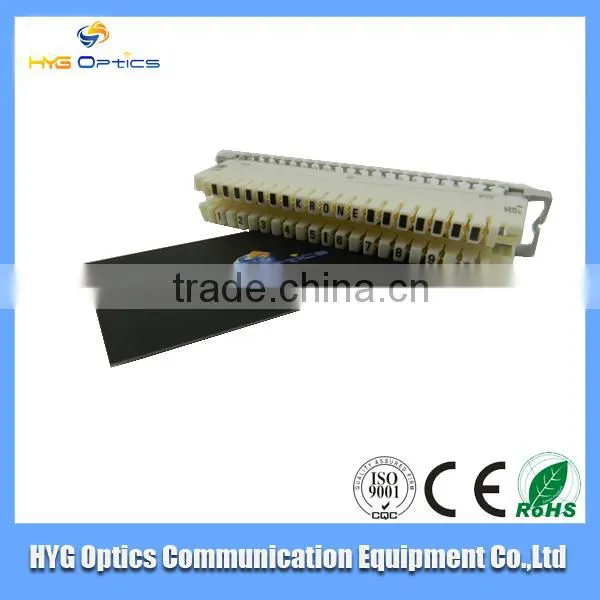

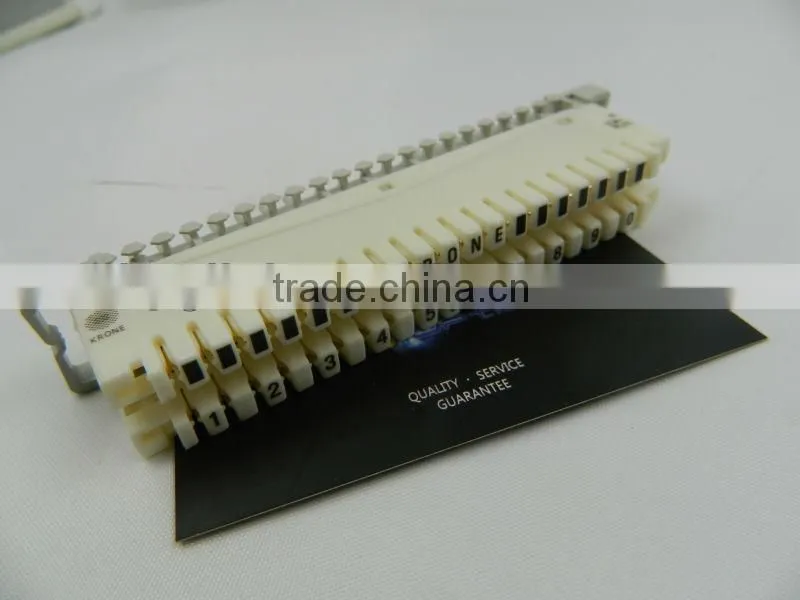

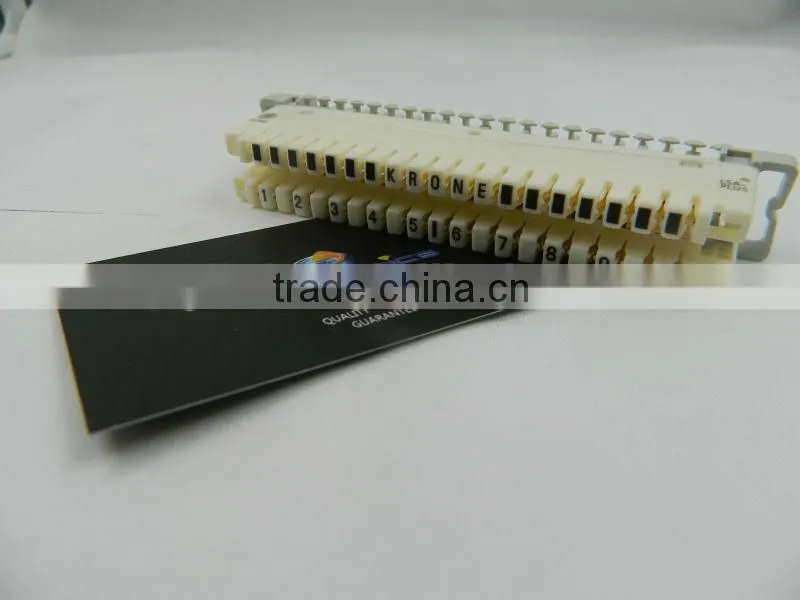

10 Pairs Krone Type LSA-IDC Connection Krone Module/Disconnection module
1.Superior high speed data and voice cross connect modules. Contact pin: phosphor bronze with silver-plated Available in 10 pair disconnect versions.
2.These modules enable high speed LAN and WAN systems maximum headroom in transmission performance.
3.HIGHBAND utilises the silver plated LSA Plus contact principle. This is proven technology which has become the 'industry standard' in over 60 countries.
4.The gas tight contacts ensure a reliable and long lasting connection.
5.The module can be either patched, jumpered and used in a patch by exception configuration.
6.Special design with cable management and chassis for Easy installation.
Technical index:
| Item: | Specification: |
| Product name: | 10 pair Lsa Disconnection Module For Krone type |
| Application | High speed LAN and WAN systems |
| Contact pin | Phosphor bronze with silver-plated |
| Insulation diameter range (PE, PVC) | 0.70 - 1.40 mm |
| Wire diameter range | 0.40 - 0.65 mm (26-22 AWG) Wire |
| Insulation resistance | More than 500,000 M at 500 VDC |
| Number of patching cycles | 750 |
| Environment for use | Indoors or in dry enclosure rated IP54 or greater |
| Operating temperature range | -40ºC to +80ºC |
| Maximum relative humidity | 93% non-condensing |
