Specifications
wifi wireless usb network adapter11 n technology, the 150 m wireless transmission rate
fit for IEEE802.11n,IEEE802.11g
1. The product description
11 n technology, the 150 m wireless transmission rate
Using the latest wireless transmission technology,wireless transmission rate can up to 150 Mbps,the data transmission is more efficient in Network, Effectively reduce the network delay,Make the voice video, online games, online on demand.
Using 1×1 MIMO(Multiple Input Multiple Output)framework, Built-in smart omnidirectional antennas, Signal multiplexing transceiver, Can significantly enhance its wireless receiving ability, And to improve the stability of the wireless signal.
Using CCA(Clear Channel Assessment)Clear Channel Assessment ,When detected with wireless signal interference,Can automatically adjust the bandwidth model,avoid the channel interference,Make the wireless signal is more stable.Make the wireless signal is more stable,Make the wireless signal is more stable,Make full use of the channel bundling advantage,Improve wireless performance.
Simulation of AP function, easy to form a wireless local area network (LAN)
Without of a wireless router/AP, put the wireless network card on the computer, and switch to the access point mode, then it is equivalent to a wireless AP, can support multiple computers wi-fi sharing access to the Internet.

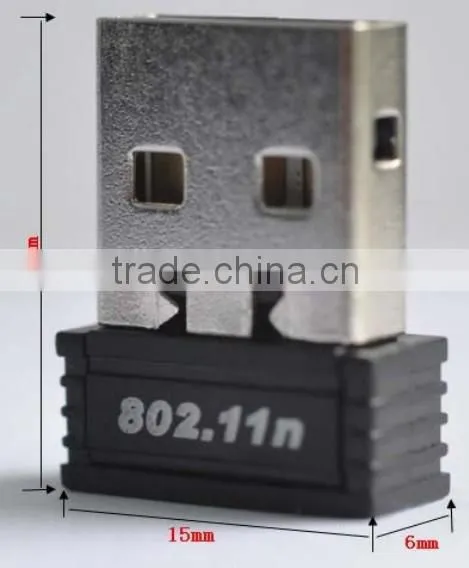

2.The overall size
4.Specification
standards |
IEEE 802.11g,IEEE 802.11b,IEEE 802.11n |
PCI |
USB1.1/USB2.0 |
frequency range |
frequency range |
The wireless transmission rate |
11n:can reach to 150M |
11g:6/9/12/18/24/36/48/54Mbps(self-adaption) | |
11b:1/2/5.5/11M(self-adaption) | |
Working channel number |
14 |
Launch receiving type |
1T1R |
spread-spectrum technique |
DSSS |
Data Modulation Type |
OFDM,OFDM with PSK,BPSK,16-QAM,64-QAM,CCK,DQPSK,DBPSK |
sensitivity@PER |
135M:-72dBm@10% PER; 130M: -72dBm@10% PER; |
108M:-72dBm@10% PER; 54M:-72dBm@10% PER; | |
11M:-85dBm@8% PER; 6M:-88dBm@10% PER; | |
1M:-90dBm@8% PER | |
RF power |
15dBm(Max) |
antenna gain |
2dBi Built-in smart antenna |
The LED indicator |
Status |
Dimension |
20*15*6mm |
Operational environment |
operating temperature:0°C to 40°C |
Storage Temperature:-40°C to 70°C | |
Operating humidity:10% to 90%RH noncondensing | |
Storage Humidity:5% to 90% RH don't condense | |
OS Support |
Windows XP/VISTA/WIN7/MAC/LINUX |
