Help Center45,60mm Fiber Heat Shrink Tube
Related Products
-
45,60mm Colorful Optic Fiber Heat Shrink TubeUS$ 2.15 - 2.98MOQ: 100 Bags -
40,45,60mm Colorful Fiber Heat Shrink Tube for Protect Optical Cable in FTTHUS$ 2.13 - 2.72MOQ: 100 Bags
-
45,60mm Colorful Heat Fiber Splice Protection SleevesUS$ 2.11 - 2.65MOQ: 100 Bags
-
45,60mm Colorful Fiber Optic Heat ShrinkUS$ 2.13 - 2.65MOQ: 100 Bags
-
45,60mm Colorful Fiber Splice Protection SleevesUS$ 2.01 - 2.87MOQ: 100 Bags
Fiber heat shrink tube:
1.CE,ROHS,ISO9001,UL
2.100% professional factory
3.Excellent reinforcement
4.Reliable
Fiber heat shrink tube feature:
Excellent reinforcement of fusion splicing portion
Reliable protection under any environmental conditions
40mm & 60mm length available
2.5mm & 3.0mm diameter for option
Fiber heat shrink tube application:
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.
The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.
Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).
Fiber heat shrink tube parameters:
Shrinking Temperature (°C) |
110 ~ 130 |
Radial Shrinking Rate (%) |
>50 |
Axial Shrinking Rate (%) |
<10 |
Low Temperature Property |
No crackle at -55°C lasting 4 hours |
Normal Operation Temperature (°C) |
-55°C ~ + 135°C |
Normal Operature Relative Humidity |
≤95% |
Spark- over Strength (kV/mm) |
≥20 |
Tensile Strength (Mpa) |
20 |
Loss at -40°C |
0.03dB |
Loss at +60°C RH95% |
0.02dB |
|
Steel Rod O.D & Length |
Fusion Tube I.D. & Length |
Heat Shrink Tube Length |
Device O.D.(After shrink) |
Packing |
1.5 & 58mm |
1.3 & 60mm |
60mm |
3.0mm |
100pcs/bag |
1.2 & 40mm |
1.3 & 45mm |
45mm |
2.5mm |
100pcs/bag |
1.2 & 36mm |
1.3 & 40mm |
40mm |
2.5mm |
100pcs/bag |
1.0 & 56mm |
0.5 & 60mm |
60mm |
2.0mm |
100pcs/bag |
1.0 & 36mm |
0.5 & 40mm |
40mm |
2.0mm |
100pcs/bag |

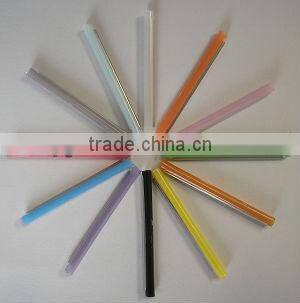

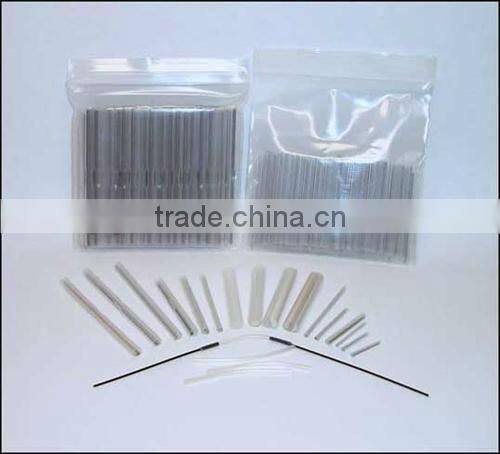

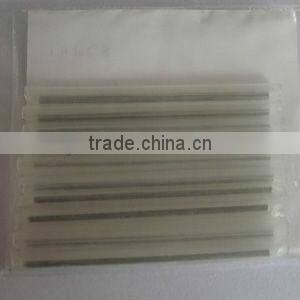

Fiber heat shrink tube pictures:
