10/100M 1F 2E Industrial Fiber Media Converter
- 50000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Fiber Optic Gigabit Industrial 4-ports ethernet fiber Media Converter 10/100M

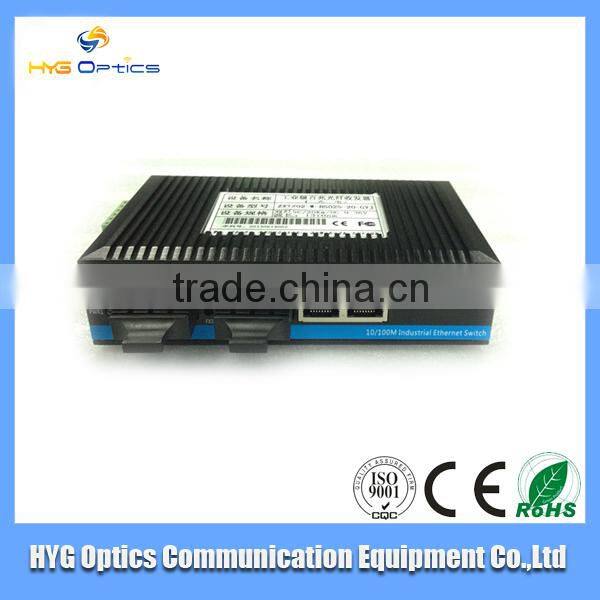

- 10/100m Industrial Ethernet Media Converter, 2 Fiber Ports+ 2 UTP Ports

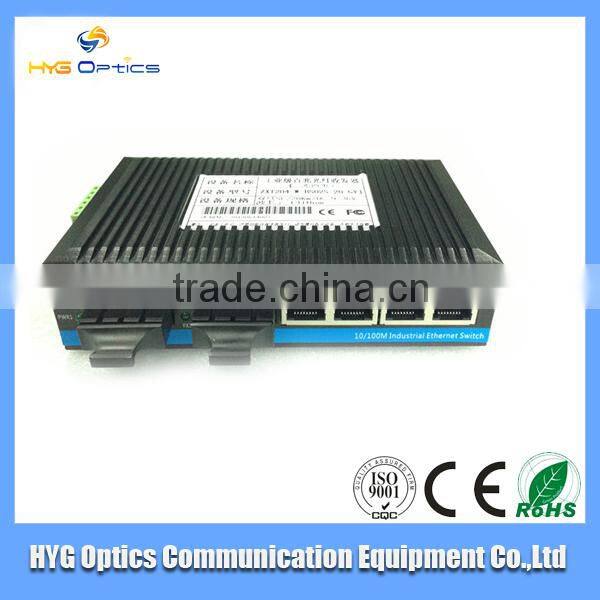

- 10/100m Industrial Ethernet Media Converter, 2 Fiber Ports+ 4 UTP Ports
- oem 10/100/1000M Industrial Ethernet Fiber Media Converter, 1 fiber port + 2 RJ45
- 10/100/1000M Industrial Ethernet 850/1310/1550nm Media Converter
- China supplier 10/100/1000M Industrial Ethernet Media Converter
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HYG | Model Number: | HYG-T102-W-BS02S-20-GYJ, HYG-T102-W-BS02S-20-GYJ |
Packaging Details
1 pc in a pe bag,then in a box,50 pc/ctn
Product Description
Specifications
10 100M Industrial Fiber Media Converter1.IEEE802.3 802.3u 802.3x
2.Plug and play easy install
3.10 100Mbps
4. -40 to 80

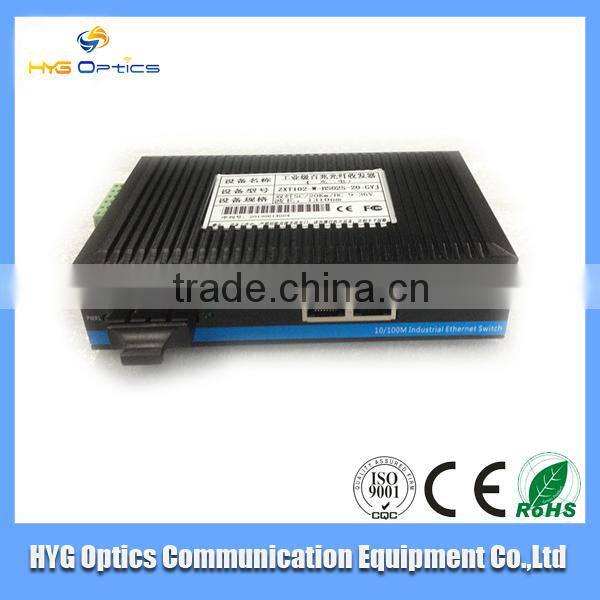

10/100M 1F 2E Industrial Fiber Media Converter
Item # : 10/100m Industrial Ethernet Media Converter One Fiber Port +Two RJ45 Port, 9~36V Power Input
Features:
1. IEEE802.3/802.3u/802.3x, store and forward
2. Plug-and-play, easy to installation
3.10/100M, F/H duplex, MDI/MDI-X auto negotiation
4. -40 to +80° C operating temperature range
5. Designed for industrial applications. IP40 protection, rugged high-strength metal case
6. Support for DIN Rail stallation
Specifications:
Standards: Comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
RJ45 port rate: 10/100BaseT(X) auto connection, F /H duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports: 100BaseFX ports (SC/ST connector, optional)
Single-mode: 20, 40, 60, 80, 100Km, optional
Multi-mode: 2Km, optional
Wavelength: 850nm, 1310 nm, 1550nm
Typical 100Base-FX: Multi-mode: 155Mbps, 1310nm, 2Km, average output≥ -18dBm, sensitivity≤ -35dBm
Single-mode: 155Mbps, 1310nm, 20Km, average output≥ -12dBm, sensitivity≤ -36dBm
Power:
Input Voltage: 9V~36V DC, Dual power input
Opposite connection protection
Mechanical:
Dimensions: 145mm× 96mm× 36mm (H× W× D)
Casing: IP30 protection, Metal case
Weight: 0.3kg
Environmental:
Operating Temperature: -40 to 80° C
Storage Temperature: -45 to 85 ° C
Ambient Relative Humidity: 10% to 95% (non-condensing)
Approvals:
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2(ESD), level 4
EN61000-4-3(RS), level 4
EN61000-4-4(EFT), level 4
EN61000-4-5 (Surge), level 4
EN61000-4-6 (CS), level 4
EN61000-4-8, level 4
EN61000-4-11, level 4
Shock: IEC 60068-2-27 PASS
Free Fall: IEC 60068-2-32 PASS
Vibration: IEC 60068-2-6 PASS
Warranty: 3 years
Certificates:
FCC, CE, RoHS approvals
Product showing:
