20Km Fiber Optic Video Transceiver/10km Wireless Transceiver
US$ 8 - 260
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20Km 1/2/4/8/16 Channel Fiber Optic Video Transceiver/tansmitter/recieverUS$ 8 - 260MOQ: 1 Piece -
4 Channel Fiber Optic Video Converter,media Converter,transceiverUS$ 25 - 200MOQ: 10 Pieces
-
Manufacture Supply 4 /8/12/16 20KM Channel Fiber Optic Video Converter,media Converter,transceiverUS$ 25 - 300MOQ: 10 Pieces
-
1*9 Transceiver Module for TelecommunicationUS$ 10 - 90MOQ: 1 Piece
-
16F Ftp Transceiver Module for TelecommunicationUS$ 10 - 90MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
HYG
20Km 1/2/4/8/16 channel Fiber Optic Video Tansceiver
Product Information:
| Parameter | Specifications |
| Video | |
| Video interface number | 8 channel video |
| Bandwidth of video | 8MHz |
| Video input & output impedance | 75 Ω (imbalance) , BNC |
| Video input & output voltage | 1Vpp |
| Differential gain | DG <1% ( typical value) |
| Differential phase | DP <0.6° ( typical value) |
| Weighted signal-to-noise ratio | S/N ≥ 67dBWeighted |
| Data | |
| Physical interface | The industry standard connecting terminal |
| Interface Signal | RS485/RS422/RS232/Manchester |
| Code rat | 0-400Kbps |
| BER | < 10 -9 |
| AUTIO | |
| Interface port | lotus block industrial standard port |
| Audio input/output impedance | 600Ω(balance/imbalance) |
| Audio input/output voltage | 2Vpp (typical value) |
| Audio input/output level | 0 dbm (typical value) |
| Audio bandwidth | 10Hz~20kHz |
| Audio digital bandwidth | 24 bit |
| Andio signal-to-noise ratio | S/N ≥95Db ( weighted) |
| Ethernet | |
| Physical interface | RJ45 |
| Operating mode | Full / half dulex |
| Support agreement | IEEE802.310M10/100M adaptive |
| Phone | |
| Physical interface | RJ11 |
| Voice bandwidth | 8kHz |
| Special function | Support the call displayWith hands-free function |
| Working mode | Point-to-point hotline SPC Exchanges method |
| Optical | |
| Connector | FC/ST (optional) |
| Fiber type | single-mode fiber, single fiber |
| Transmission distance | single mode 20Km |
| Environmental demand | |
| Relative humidity | 0-95% ( no condensation) |
| Power supply voltage | AC220V/50Hz |

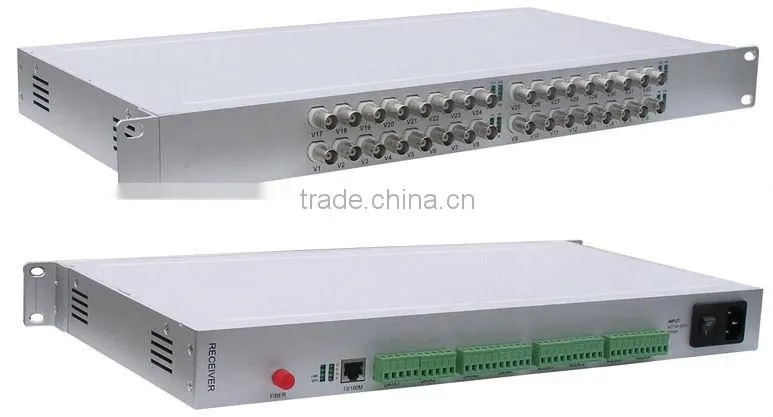

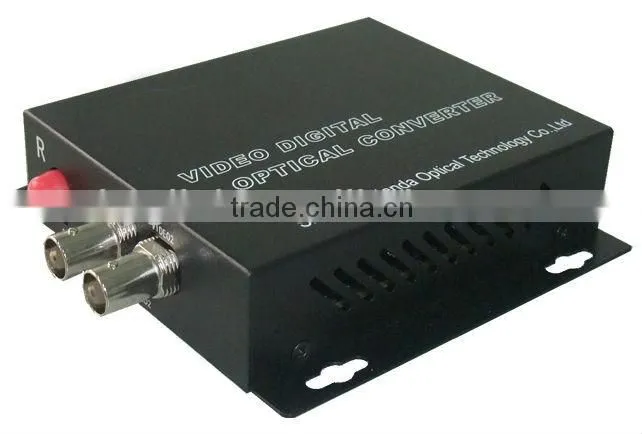

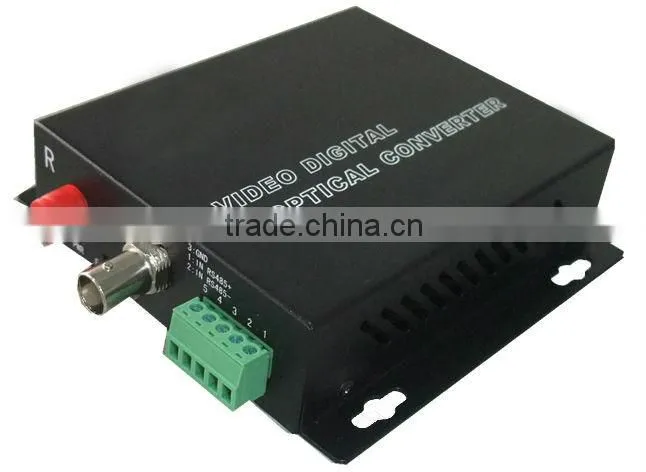

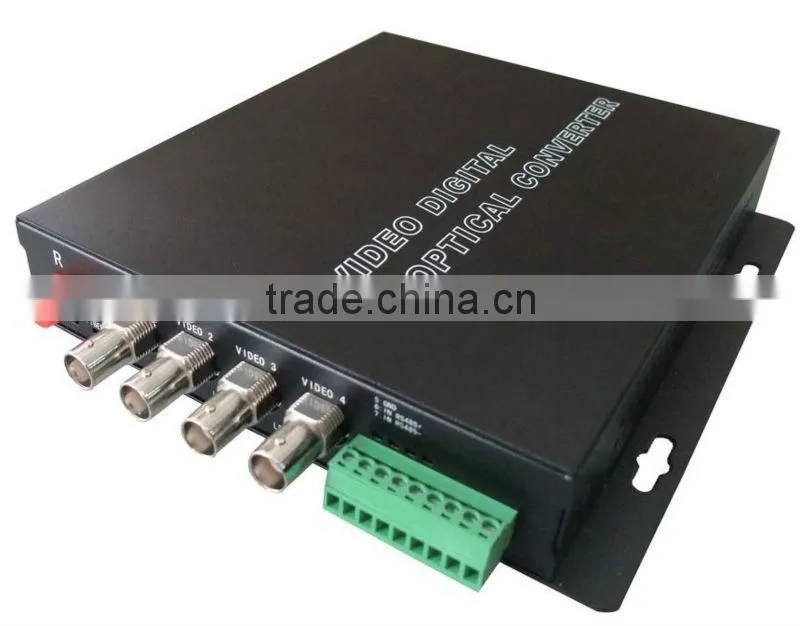

Fiber converter pictures:
Applications:
Features :
Ø Card type or independent structure, which is applied to centralized management 4U framework
Ø 8-bit digital code and non-compression type video transmission
Ø Support any high-resolution video signal
Ø 5Hz-10MHz video channel
Ø Automatic compatible PAL, NTSC and SECAM video system
Ø With APC circuit, constant input optical power, and large dynamic range
Ø Kilomega optical fiber transmission, large capacity, and easy to upgrade
Ø Power supply and other parameter state indication, which can monitor the operation condition of system
Ø Support no-damage regenerative trunk of video
Ø Advanced self-adapting technology, and it is unnecessary to implement the adjustment of spot electrics or optics when using
Ø Industry-grade design and modularization design make the equipment reliable and flexible
Ø Can automatically restore the fuse of power supply
Ø Full built-in power supply, and the appearance design of shell is unique.
fiber video transceiver;video transmitter;video receiver;fiber transceiver;fiber transmitter
