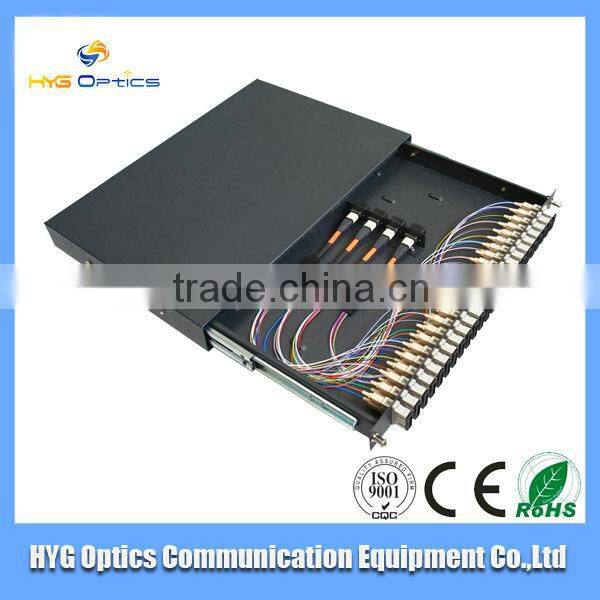

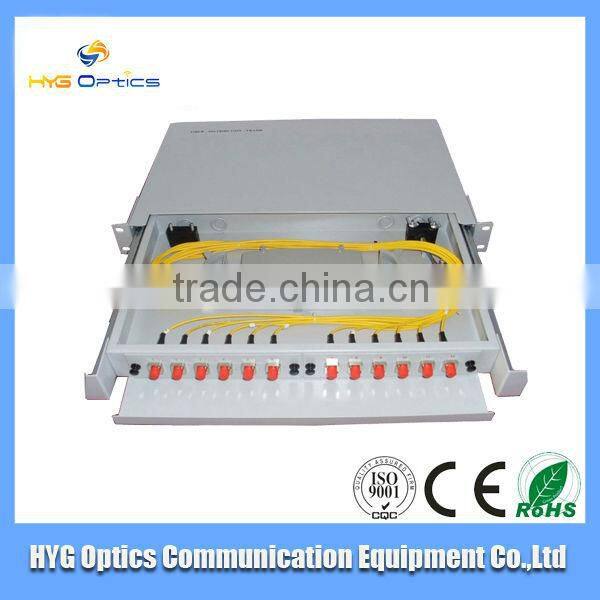

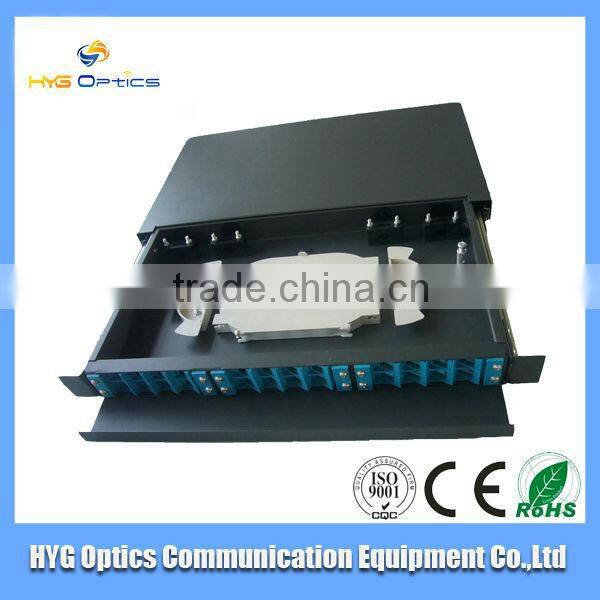

24f Fiber Pannel Box With SC/FC/LC/ST Pigtails and Adapters Used in Telecommunications

5pcs/Paper carton

Specifications

24F fiber pannel box with SC/FC/LC/ST pigtails and adapters used in Telecommunications

Fiber optical Distribution Frame:
1U24, 2U48, 3U72, 4U96
Suitable for ribbon and single fiber
High density, large capacity
OEM&ODM can be available

Optical Distribution Frame is also called ODF. Its main function is to terminate the fiber optic cable and provide connection access to the cable’s individual fibers. Fiber patch panels are termination units, which are designed to provide a secure, organized chamber for housing connectors and splice units. Fiber patch panels are available in rack mounted or wall mounted. Both types can house, organize, manage and protect fiber optic cable, splices and connectors. Rack mount panels is usually 19" or 23" universal width. The height of patch panel can be 1u, 2u, 3u, 4u, 6u and so on. The opening of the optical fiber patch panels can be slidable or fixed or revolving. Wall mount patch panel is more customized, it can be any structure and dimension. And the patch panels can be used for indoor or outdoor application

Fiber optical Distribution Frame features

19” standard installation,adjustable position in forward and backward direction.

Suitable for being installed in different kinds of optical distribution frame or cabinet.

Compact aluminum body with electrostatic spraying surface,light structure and fine-looking appearance.

Fiber guiding hoops on front and rear sides protect fibers from mechanical damage, and are arranged to ensure bending radius protection. Fiber can be inserted into guiding hoop directly, no need of interlude.

Plug-in style adaptor panels can be exchange flexibly, easy for application and configuration.

Six-pack adapter panels mounted on the front board are selectable with FC/SC/ST/LC type, according to requirement.

Unique plastic retainer clips for optical fibers are attached, protecting the spliced fibers sufficiently.

Rack-mount Fiber optical Distribution Frame size parameters

Fiber optical Distribution Frame Application

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/ WAN

CATV

Fiber optical Distribution Frame pictures
