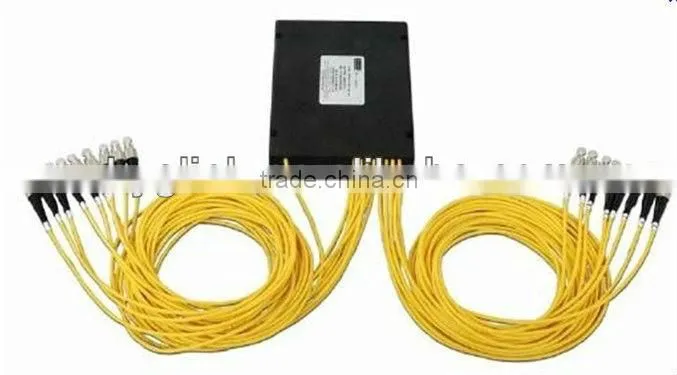

12/14/16/18/112/118/1*32 SC/FC/ST APC/UPC Optical Splitter for FTTH

US$ 3.67 - 7.16 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HYG

Model Number:

hyg-PL-0037

Shenzhen Haiyu Optics Communication Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HYG

Model Number hyg-PL-0037

PLC (Planar Lightwave Circuit) splitters is used for fiber optic signal splitting in PON networks: The compact size

makes them suitable for installation in splice trays and placed in joint closures, cabinets or optical termination panels

The PLC splitters are available with one or two input ports and up to 64 output ports.

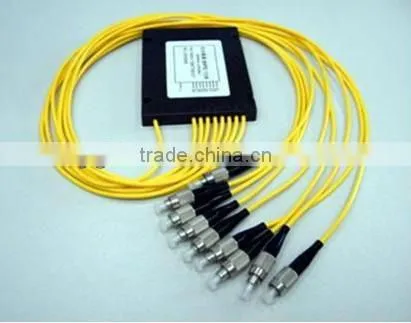

1*16 optical splitter:

1.SM&MM plc splitter
2.Low insertion loss and low PDL
3.High reliability and channel

1*16 optical splitter application:

LAN, WAN and Metro Networks

FTTH project & FTTX Deployments

CATV System

GPON, EPON

Fiber Optic Test Equipment

Data-base Transmit Broadband Net

*116 optical splitter technical specifications**
Wavelength(nm)	1260-1650
Parameters	1×4	1×8	1×16	1×32	1×64	2×4	2×8	2×16	2×32
Insertion Loss(with connector)(dB)	≤7.4	≤10.7	≤13.7	≤16.9	≤21	≤7.8	≤11.5	≤14.5	≤17.7
Insertion Loss(W/O connector)(dB)	≤7.7	≤11.2	≤14.2	≤17.5	≤21.5	≤8.3	≤12	≤15	≤18.2
Uniformity (dB)	≤0.8	≤1.0	≤1.4	≤1.9	≤2.7	≤1.7	≤1.7	≤2.2	≤2.7
PDL(dB)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.4	≤0.2	≤0.4	≤0.4	≤0.4
Size(bare bype) (H×W×L)(mm)	4×4×50			4×7×50	4×12×60	4×4×50			4×7×50
Return Loss(dB)	>50
Directivity(dB)	>55
Temperature Range(°C)	-40~+75
Storage Temperature(°C)	-40~+85
