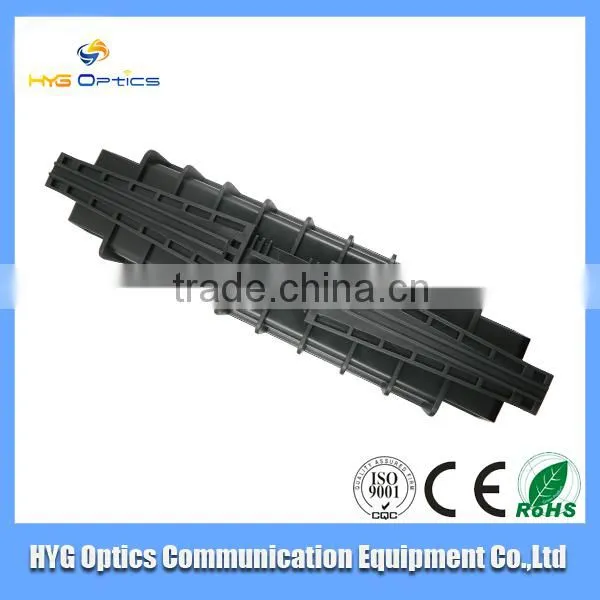

SUPERIA 24 Core 3M Fiber Optic Splice Closure for Telecom

Specifications

ALL CATEGORIES

Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > SUPERIA 24 Core 3M Fiber Optic Splice Closure for Telecom

US$ 60 - 150 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

hyg

Model Number:

hyg-sc-001, 24 core 3M fiber optic splice closure

Shenzhen Haiyu Optics Communication Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name hyg

Model Number hyg-sc-001, 24 core 3M fiber optic splice closure

Insulated rubber tape

two roll waterproof tape

Splice cassette

one set 12 core cassette

Cable fixing device

two stainless steel bolt sets

Internal hexagonal wrench

Heat shrinkable tube

one package

stainless steel tie

SUPERIA 24 core 3M fiber optic splice closure
1.12-144 core
2.payment:T/T,L/C,WEST UNION
3.each one in a ctn

24 core 3M 2 in 2 out fiber splice closure

Fiber Optic Cable Splice Closure

Fiber Optic Cable Splice Closure Specification

In and Out Port No.	Four ports,two input two output
Fiber optical cable diameter	Small port:Φ8~Φ17.5, Big port:Φ10~Φ17.5
Fiber melting No.	Single core:1~12 cores(can be extend to 16 cores);Ribbon beam :24 cores
Max capacity	Single-core :72cores ;Ribbon beam :144cores
Sealing way	Mechanical Sealing /Heat-shrinkable sealing
Sealing tape	Unvulcanized self-adhesive sealing tape
Installation application	aerial, pole-mounting, wall-mounting and direct buried
Material	Closure body is made by Super ABS/PPR material, and the bolt was made in stainless steel
Working Environment	Working temperature: -5°C to +40°C,Relative humidity:≤85%(at +30°C),Atmospheric pressure: 70Kpa-106Kpa
Weight and Size	Splice closure weight:2.1kg. Size:460×180×110(mm)

Fiber Optic Cable Splice Closure Components

Fiber Optic Cable Splice Closure Packing Details

Packing	Packed by Carton.Then covered with waterproof membrane.
Normal splice closure factory quantity	Standard quantity is 8 or 10 sets with a tolerance of 5% or other required.
Carton Weight	Approx. 24kg per carton.Carton Size:515425575mm

package about 3M splice closure
