Home > Products > Fiber optic attenuator > High Quality lc Male and Female Attenuators,lc Variable Attenuators
High Quality lc Male and Female Attenuators,lc Variable Attenuators
- swhenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Quality Digitally Controlled Attenuator/lc Variable Attenuators/digital Variable Optical Attenuator
-
High Quality lc Fiber Attenuator,lc Variable Attenuators
-
High Quality lc Fixed Attenuator,lc Variable Attenuators
-
High Quality Variable Optical Attenuator,lc Variable Attenuators
-
High Quality Fiber Optic Attenuators,lc Variable Attenuators
-
High Quality 5dB 10dB Attenuator Manufacture Supply 5dB Attenuator
Product Details
| Place of Origin | Guangdong, China | Brand Name | HYG | |
| Model Number | HYG-ATD-LC-15D |
1pc/PE bag,2000pcs/ctn
Product Description
Specifications
lc Male and female attenuators1.Attenuation value:1-30dB
2.sc/lc/fc/st
lor is avalable
4.size is complete
good quality lc Male to female attenuators
1.100% professional factory
2.High attenuation precision
3.OEM,ODM offered
4.Short delivery time
Features:
Low back reflection and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
FC, SC, ST, LC … optional
Plastic or metal housing material
Male and female attenuator applications:
1. EDFA, DWDM, Long-haul
2. Wide-Area Networks
3. Telecommunication networks
4. Gigabit applications ( ATM,Ethernet )
Male and female attenuator technical parameters:
Item | Specification | ||
PC | UPC | APC | |
Operating Wavelength (nm): | 1310 1550 | ||
Return Loss (dB): | ≥50 | ≥55 | ≥60 |
Attenuator Value: | According to custom request make 1—25dB | ||
Maximum Optical Input Power: | 200mW | ||
Bellcore Compliant: | Wavelength Independent (DWDM) | ||
Operating Temperature: | -40--+85°C | ||
Attenuation Accuracy: | +/-0.5 (1-10) | ||
Durability (well over 100mw): | Simple and Reliable Structure | ||
Storage Temperature: | -40--+85°C | ||
Order information:
Connector Type: FC, SC, LC, ST, FC/SC or other type
Application: PC/UPC/APC
Wavelength: 1310nm, 1550nm, 1310/1550nm
Attenuation Level: 1~30Db or others

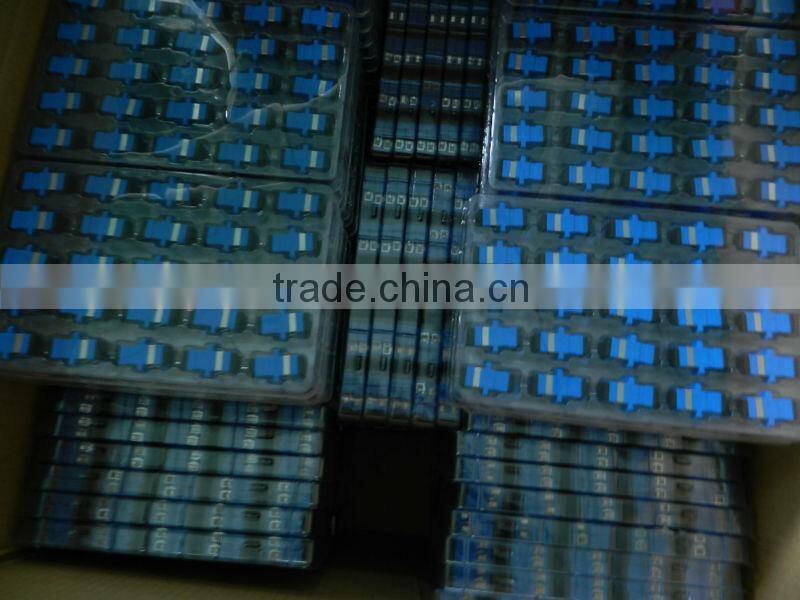

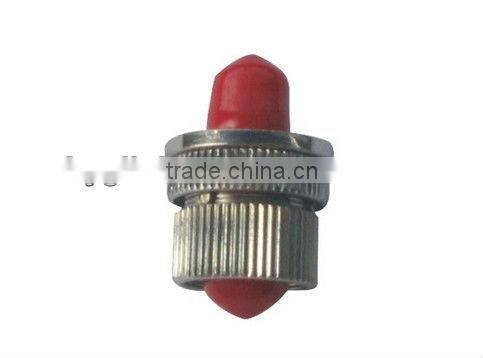

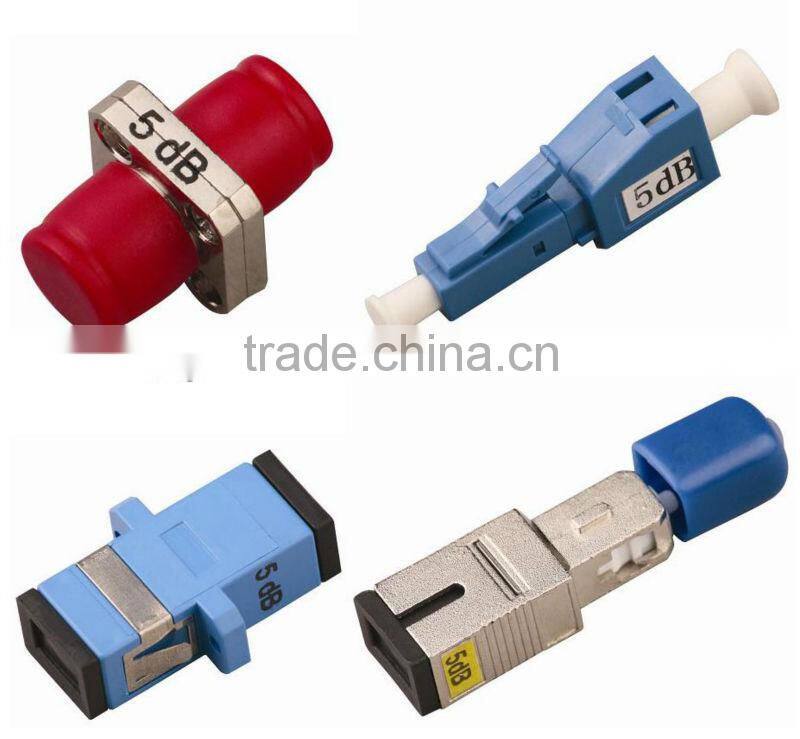

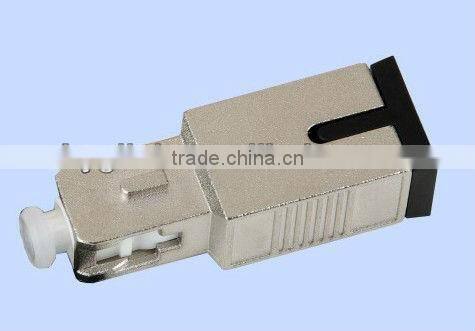

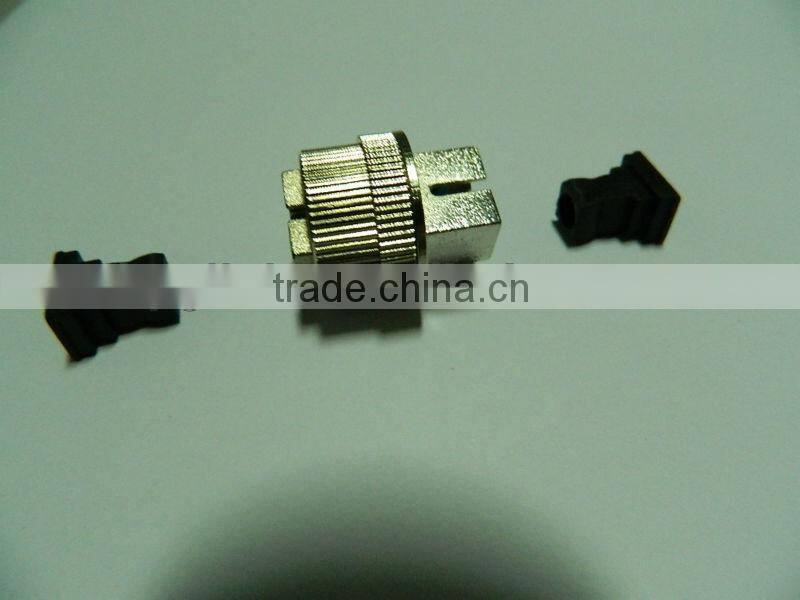

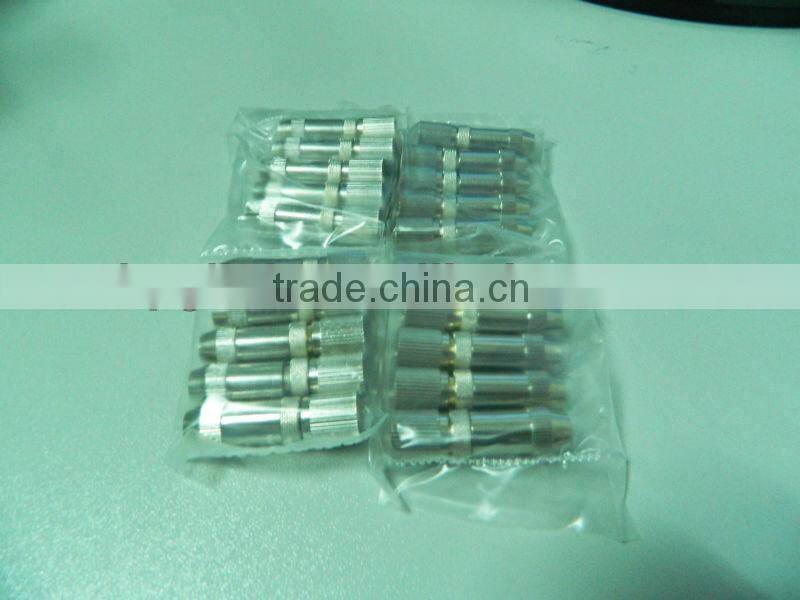

Male and female attenuator detail pictures:
Company Profile
About HYG Optics The Haiyu Optics, founded in 2000, is focus on design and manufactured fiber optic communication products. It has developed a range of products including Indoor and outdoor optical cables, fiber optic jumpers, pigtails, connectors and adapters, network solution equipment like optic media converters, attenuators, tranceivers, optical models and other accessories. Widely used in telecom communication, mobile communication, network solution, radio and television, etc. HYG Quality Assurance Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high reliability, low cost and diverse product range. Other quality system we complying with ISO14001, CE, Rohs and 5S system. Advanced high precision test equipment: Insertion and return loss tester, 3D Interferometer. The location The company is located in Shenzhen, near by Hongkong, enjoying the convenient transportation. Our products are exported to USA, Germany, France, Russia, the UAE, Indonesia and so on. For our long-term development, our company cooperates with Corning, OFS, YFOC, CCTC, etc. Our mission QUALITY TO SURVIVE, INNOVATION FOR DEVELOPMENT.
