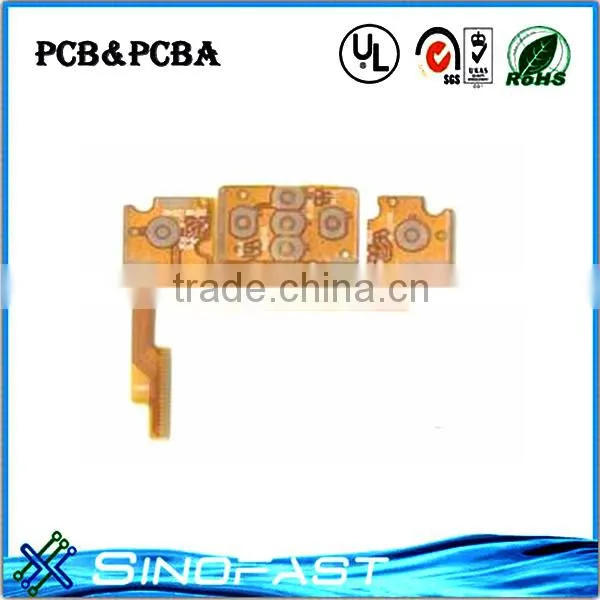

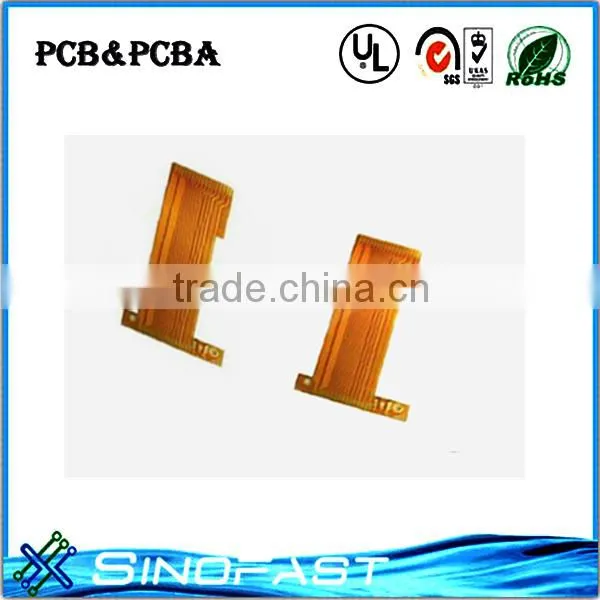

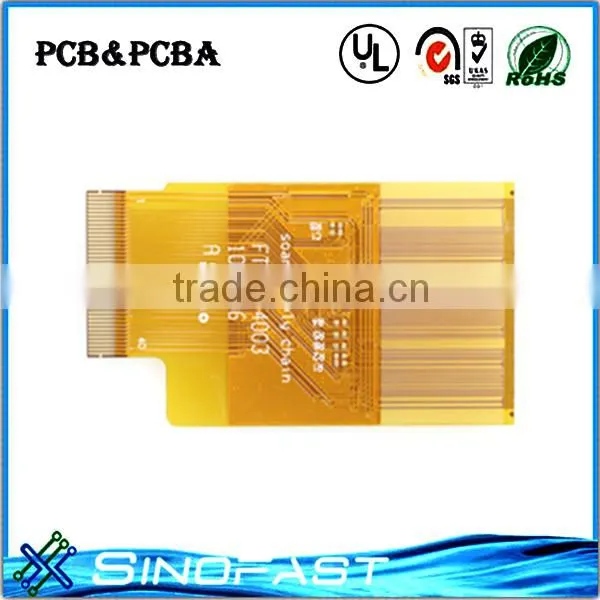

Help CenterFPC Pcb for Touch Screen Digitizer for Asus Tf300 5158n Fpc-1
Related Products
-
Touch Screen Fpc Pcb Board Manufacturer in ChinaUS$ 0.5 - 2.5MOQ: 0 Piece -
FPC for Telephone/mobilephone Keyboard Fpc Board in ChinaUS$ 0.1 - 1.5MOQ: 0 Piece
-
2-Layer FPC, Flexible Pcb, FPC,Flexible Printed CircuitUS$ 0.1 - 1.5MOQ: 0 Piece
-
Flex Board for DoorsUS$ 0.5 - 2.5MOQ: 2 Pieces
-
Rigid FPC With 0.2mm Thickness, Yellow Mask, Gold ImmersionUS$ 0.1 - 1.5MOQ: 0 Piece
Welcome to Sinofast
ShenZhen SinoFast Electronics co.,Ltd. was established in April,2005,After years'efforts, the company has expanded rapidly and kept Introducing new production equipments.We have also trained a professional team and perfected the quality management system ranging. the manufacture ability of our company is expanded rapidly. The annual output of double-sided and multi-layer PCB exceeds 100,000 square meters.,
How to work with us:
Certification
Why to choose us?
1.PCB&PCBA factory directly.
2.We have the comprehensive quality control system.
3.Product in good price.
4.Quick turn delivery time from 48hours.
5.Certification(ISO/UL/RoHS).
6.8 years experience in exporting service.
7.We have no MOQ.
8.Product in high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting.
Product Technology
|
High precision prototype |
PCB bulk production |
|
Max Layers |
1-28 layers |
1-14 layers |
|
MIN Line width(mil) |
3mil |
4mil |
|
MIN Line space(mil) |
3mil |
4mil |
|
Min via (mechanical drilling) |
Board thickness≤1.2mm |
0.15mm |
0.2mm |
Board thickness≤2.5mm |
0.2mm |
0.3mm |
|
Board thickness>2.5mm |
Aspect Ration≤13:1 |
Aspect Ration≤13:1 |
|
Aspect Ration |
Aspect Ration≤13:1 |
Aspect Ration≤13:1 |
|
Board thickness |
MAX |
8mm |
7mm |
MIN |
2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm |
2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm |
|
MAX Board size |
610*1200mm |
610*1200mm |
|
Max copper thickness |
0.5-6oz |
0.5-6oz |
|
|
Immersion Gold/ Gold Plated Thickness |
Immersion Gold:Au,1—8u” |
|
|
Hole copper thick |
25um 1mil |
25um 1mil |
|
Tolerance |
Board thickness |
Board thickness≤1.0mm:+/-0.1mm |
Board thickness≤1.0mm:+/-0.1mm |
Outline Tolerance |
≤100mm:+/-0.1mm |
≤100mm:+/-0.13mm |
|
Impedance |
±10% |
±10% |
|
MIN Solder mask bridge |
0.08mm |
0.10mm |
|
Plugging Vias capability |
0.25mm--0.60mm |
0.70mm--1.00mm |
|
Description
1.Professional manufacturer of PCB and PCBA specialized in single-sided PCB,
double-sided PCB,multilayer PCB, PCB layout and design and PCB assembly.
2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,
high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG
.
3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger.
Factory show
Contact us
Floor 6,G building,HuaFeng industrial park, Tel:0755-27348887 Skype:byronxiong11
HangCheng Road.Xixiang,Shenzhen,China Cellphone:008613510788094 Whatsapp:13510788094
If you want to know more about our company,please visit our webside:
Now send me your enquiry.
Your satisfaction , My pleasure!
