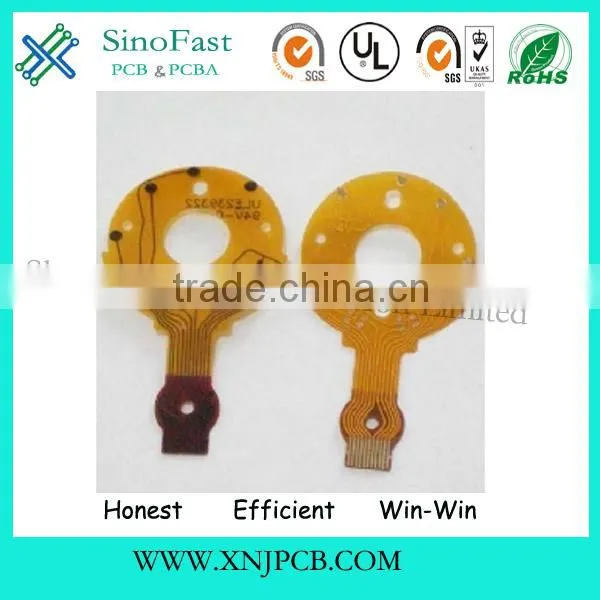

gold finger fpc manufacturing company
- 10000 Square Meter / Square Meters per Month
- Shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SinoFastPCB | Model Number: | SinoFast-1001 |
Base Material: | PI/PET | Copper Thickness: | 18μm/35 μm | Board Thickness: | 0.06mm-0.6mm |
Min. Hole Size: | 0.25mm | Min. Line Width: | 0.076mm | Min. Line Spacing: | 0.076mm |
Surface Finishing: | tin plated board,flash gold board,immersion gold board |
Product Description
Specifications
gold finger fpc manufacturing company1.tin plated board,flash gold board,immersion gold board
2.No MOQ
Welcome to Sinofast
We are a profesional PCB and PCBA manufacturer in China, we can supply PCB Design,PCB Layout,PCB
Fabrication,PCBA Services for our customer. Pls contact us for more informations if you have any interests
in our products. please attention our production.
Quality Control
Factory Manufacture Capability.
| High precision prototype | PCB bulk production | |
Max Layers | 1-28 layers | 1-14 layers | |
MIN Line width(mil) | 3mil | 4mil | |
MIN Line space(mil) | 3mil | 4mil | |
Min via (mechanical drilling) | Board thickness≤1.2mm | 0.15mm | 0.2mm |
Board thickness≤2.5mm | 0.2mm | 0.3mm | |
Board thickness>2.5mm | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
Aspect Ration | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
Board thickness | MAX | 8mm | 7mm |
MIN | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm | |
MAX Board size | 610*1200mm | 610*1200mm | |
Max copper thickness | 0.5-6oz | 0.5-6oz | |
Immersion Gold/ Gold Plated Thickness | Immersion Gold:Au,1—8u” |
| |
Hole copper thick | 25um 1mil | 25um 1mil | |
Tolerance | Board thickness | Board thickness≤1.0mm:+/-0.1mm | Board thickness≤1.0mm:+/-0.1mm |
Outline Tolerance | ≤100mm:+/-0.1mm | ≤100mm:+/-0.13mm | |
Impedance | ±10% | ±10% | |
MIN Solder mask bridge | 0.08mm | 0.10mm | |
Plugging Vias capability | 0.25mm--0.60mm | 0.70mm--1.00mm |
PCB production equipment
Our customers
We can do for you:
1-18 layer FR-4 PCB board, 1-4 layer Aluminum PCB
1-6 oz copper thickness
0.2 mm hole size
0.2 mm track width/space
Our PCBs are used for wide range of electronic products,
Like Medical devices, CCTV, Power supply, GPS, UPS, Set-top Box,
Telecomunication ,LED, etc.
The perfect choice,Sinofast
series 1. PCB,MCPCB,FPC,Rigid flexible pcb Samples we produced
for customers
series 2. PCB Assembly we produced for customers
The production process
Surface finishing
The scope of our products
Package show
Why choose us?
Description
1.Professional manufacturer of PCB and PCB assembly specialized in single-sided PCB, double-sided PCB, multilayer PCB, PCB layout and design and PCB assembly
2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180
3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger
Application
Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries
Advantage
1.PCB factory directly
2.PCB Have the comprehensive quality control system
3.PCB good price
4.PCB quick turn delivery time from 48hours.
5.PCB certification(ISO/UL/RoHS)
6.8 years experience in exporting service
7.PCB is no MOQ/MOV.
8.PCB is high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting
Contact Us
- Shenzhen Xinnuojie Electronics Co., Ltd.
- Contact namehaitao lee
- Phone86-755-27348887
- AddressRoom 636, Ruijing Fude Building, Zhengfeng South Road, Fuyong Town, Baoan Distirct, Shenzhen City, Guangdong, China Shenzhen,Guangdong
