FR-4 2layers 1.6mm PCB

FR-4 2layers 1.6mm PCB thumbnail-1
FR-4 2layers 1.6mm PCB thumbnail-2
FR-4 2layers 1.6mm PCB thumbnail-3
FR-4 2layers 1.6mm PCB thumbnail-4
FR-4 2layers 1.6mm PCB thumbnail-5
FR-4 2layers 1.6mm PCB thumbnail-6
FR-4 2layers 1.6mm PCB photo-1
FR-4 2layers 1.6mm PCB photo-2

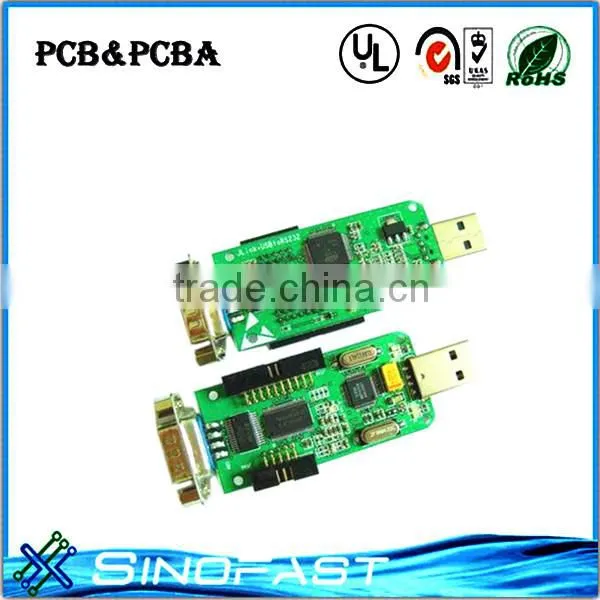

FR-4 2layers 1.6mm PCB photo-3
FR-4 2layers 1.6mm PCB photo-4

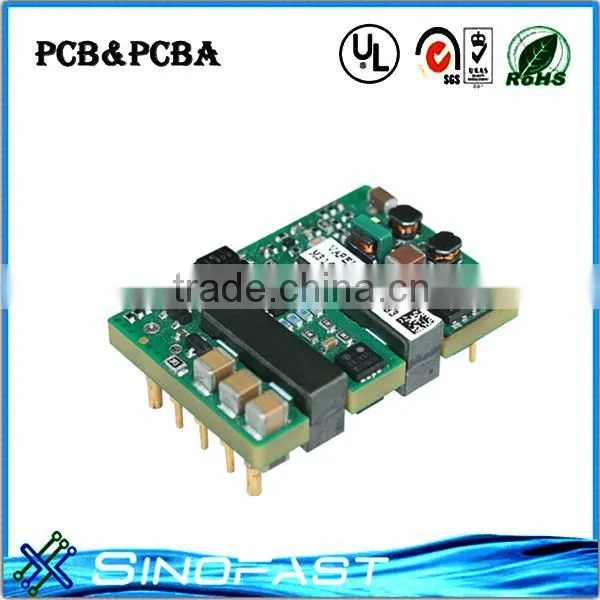

FR-4 2layers 1.6mm PCB photo-5

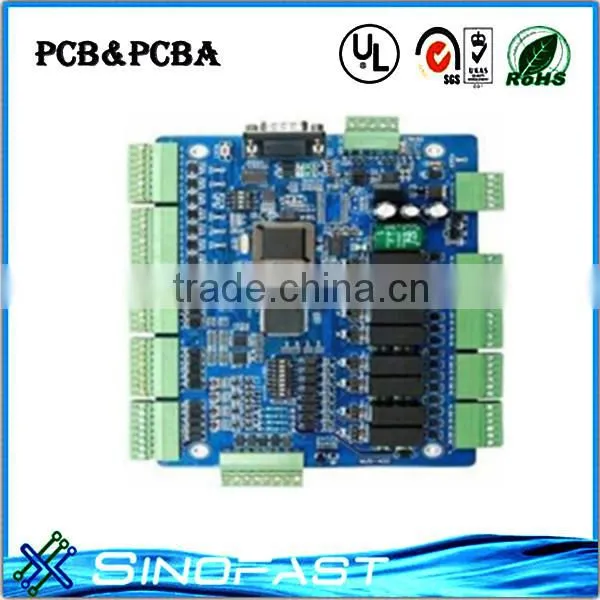

FR-4 2layers 1.6mm PCB photo-6
US$ 0.5 - 2.5 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sino Fast
Model Number:
Sino Fast1047
Contact Supplier Request Quote Chat Now
Shenzhen Xinnuojie Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Sino Fast
Model Number Sino Fast1047
Base Material FR-4
Copper Thickness 3oz
Board Thickness 1.6mm
Min. Hole Size 10mil
Min. Line Width 4mil
Min. Line Spacing 4mil
Surface Finishing HASL
  1.       FR-4 2layers 1.6mm PCB

                                                                 My Skype ID:Fannieyang9898

                                                                      Telephone: 13244796034





Company Information



              Welcome to Sinofast



  ShenZhen SinoFast Electronics co.,Ltd. was established in April,2005,After years'efforts,  the company has expanded rapidly and kept Introducing new production equipments.We have also trained a professional team and perfected the quality management system ranging. the manufacture ability of our company is expanded rapidly. The annual output of double-sided and multi-layer PCB exceeds 100,000 sFR-4 2layers 1.6mm PCB

              FR-4 2layers 1.6mm PCB



How to work with us:



FR-4 2layers 1.6mm PCB



                                                                                                       Certification



  FR-4 2layers 1.6mm PCB






2.We have the comprehensive quality control system.



3.Product in good price.



4.Quick turn delivery time from 48hours.

5.Certification(ISO/UL/RoHS).

6.8 years experience in exporting service.



7.We have no MOQ.

8.Product in high quality.Strict through theAOI(Automated Optical Inspection),



QA/QC,fly porbe ,Etesting.





Product Technology





High precision prototype

PCB bulk production

Max Layers

1-28 layers

1-14 layers

MIN Line width(mil)

3mil

4mil

MIN Line space(mil)

3mil

4mil

Min via (mechanical drilling)

Board thickness≤1.2mm

0.15mm

0.2mm

Board thickness≤2.5mm

0.2mm

0.3mm

Board thickness>2.5mm

Aspect Ration≤13:1

Aspect Ration≤13:1

Aspect Ration

Aspect Ration≤13:1

Aspect Ration≤13:1

Board thickness

MAX

8mm

7mm

MIN

2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm

2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm

MAX Board size

610*1200mm

610*1200mm

Max copper thickness

0.5-6oz

0.5-6oz

Immersion Gold/

Gold Plated Thickness

Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”



Hole copper thick

25um 1mil

25um 1mil

Tolerance

Board thickness

Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%

Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%

Outline Tolerance

≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm

≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm

Impedance

±10%

±10%

MIN Solder mask bridge

0.08mm

0.10mm

Plugging Vias capability

0.25mm--0.60mm

0.70mm--1Description



FR-4 2layers 1.6mm PCB



Description

1.Professional manufacturer of PCB and PCBA specialized in single-sided PCB,

   double-sided PCB,multilayer PCB, PCB layout and design and PCB assembly.



2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,

high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG


3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,

HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger.




Factory show



FR-4 2layers 1.6mm PCB



 FR-4 2layers 1.6mm PCB



 FR-4 2layers 1.6mm PCB





FR-4 2layers 1.6mm PCB

FR-4 2layers 1.6mm PCB

FR-4 2layers 1.6mm PCB

Packaging & Shipping



 FR-4 2layers 1.6mm PCB

Contact us



FR-4 2layers 1.6mm PCB                     FR-4 2layers 1.6mm PCB                  FR-4 2layers 1.6mm PCB



Floor 6,G building,HuaFeng industrial park,      Tel: 0755-27348887                            Skype: Fannieyang9898

HangCheng Road.Xixiang,Shenzhen,China      Cellphone:+86 13244796034                ID: Cn1045149639



If you want to know more about our company,please visit our webside:





                                              Your  Satisfaction Is Our Pleasure!
